This facility demonstrates that an intelligent network IPTV is not only valid for distributing radio and television for entertainment, but also to deliver immediately, and by areas, safety messages for travelers.

IPTV technology Teracue is allowing to Frankfurt Airport distribute nearly a hundred radio and television signals throughout the entire building.

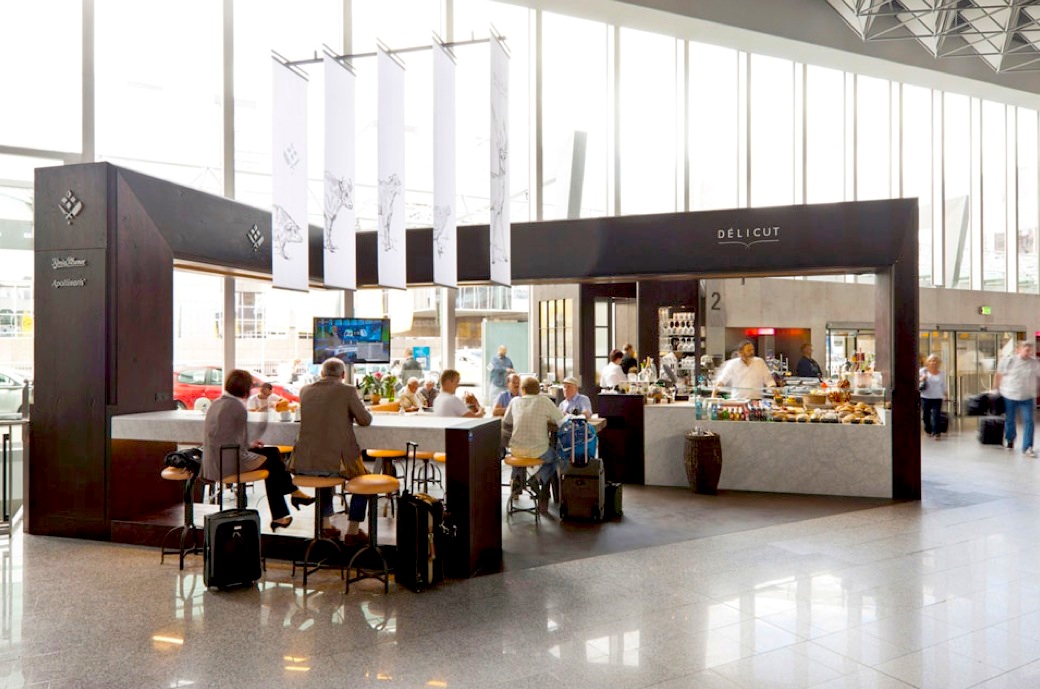

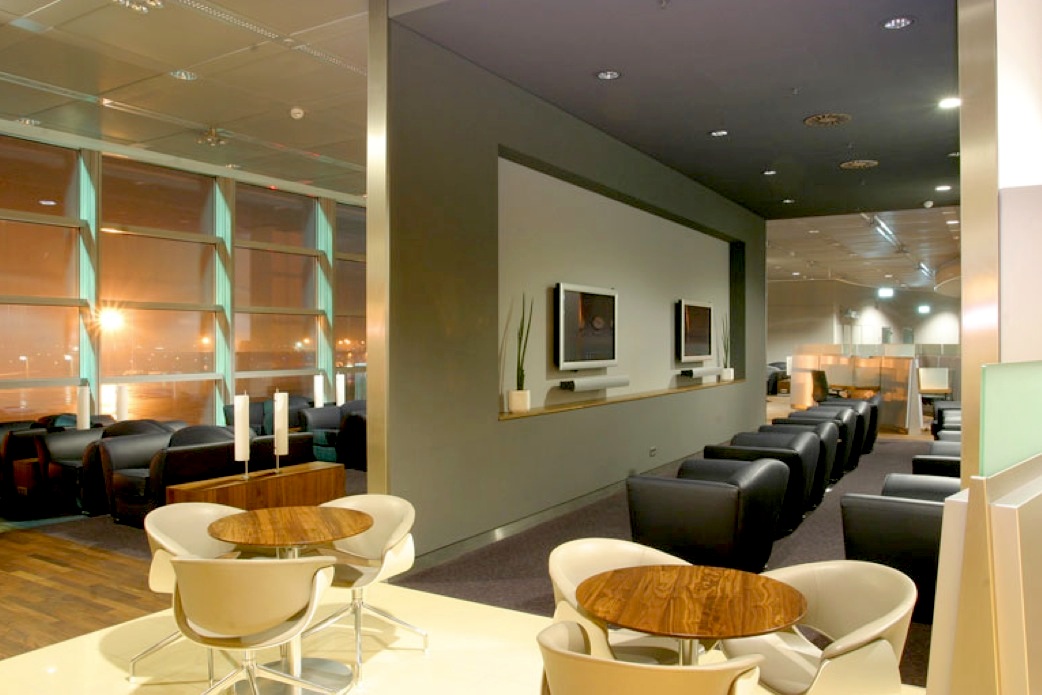

The operating company Fraport AG and distributed numerous television chain of public and private television, multi-channel pay TV and about 20 radio stations. In total, Teracue has made it possible to bring these signals to meeting rooms and lounges of the airport grounds and more than 200 displays in 120 gates.

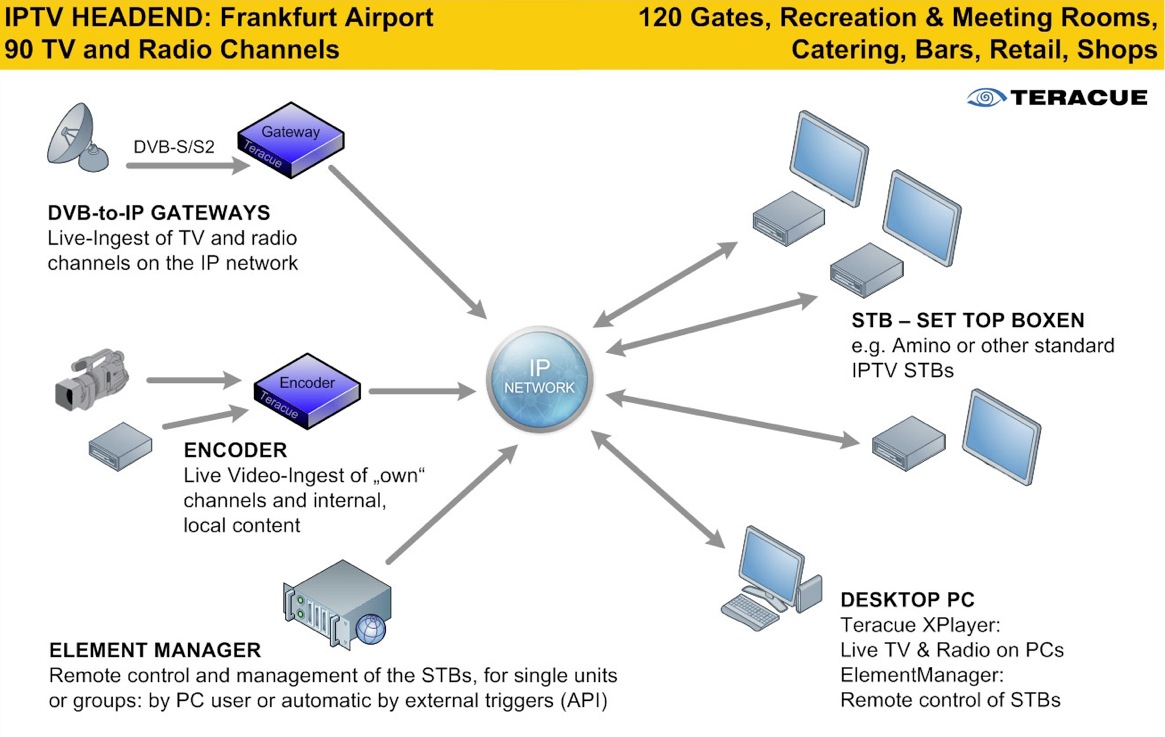

In this installation have been deployed 400 set-top boxes that allow the reception of IPTV channels across the network. Transmission of television and radio is provided with the help of DVB gateways to IP Teracue.

multicasting

Las señales, tanto DVB-S/S2 como DVB-ASI, fluyen a través de IP mediante un proceso de multidifusión gracias a una serie de tarejtas plug-in diseñadas para robusto funcionamiento 24/7. Klaus Schultz-Fademrecht, gerente del departamento de redes de Fraport AG, ha asegurado que “con nuestra solución, hay señales de satélite DVB, que alimentan a la red en tiempo real, así como streams IPTV, tanto en HD como en SD. En 2008, empezamos a migrar la distribución de televisión y radio por parte de Fraport en una solución IPTV. Además de la ventaja enorme del costo, los requisitos de mantenimiento bajos y el alto grado de escalabilidad han sido razones decisivas para la creación de un sistema basado en IPTV”.

Además, el sistema instalado IPTV es suficientemente flexible para crecer según las necesidades. Por ejemplo, en las primeras etapas, de configuración se proporciona únicamente la distribución SD. La actualización a HD sólo requerirá el reemplazo de los set-top boxes.

Schultz-Fademrecht admits are discovering "new fields of application, where IPTV can be used. We are currently integrating centralized control that would automatically send all set-top boxes network a message in emergency situations, for example when there is a fire alarm. To do this, it has not been necessary costly extensions of the IPTV network. Only management software ElementManager of Teracue allows remote access to each set-top box individually. "

This facility demonstrates that an intelligent network IPTV is not only valid for distributing radio and television for entertainment, but also to deliver immediately, and by areas, safety messages for travelers.
