In formats 15 and 17 ", Avalue Technology (represented in Spain by Anatronic) has available a new multifunctional touch panel PC for interactive applications, self-service and digital kiocos.
The Taiwanese firm Avalue TechnologyWhose products sold in Spain Anatronic, Has introduced the second generation of its PPC series panel PC with touch screen 15 and 17 "(and soon 21") for interactive solutions, self-service and digital kiosks.

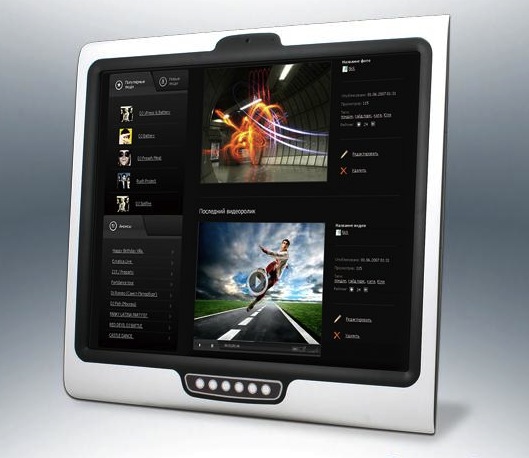

The units 15 ", called PPC-1525 and PPC-1527, are equipped with a resistive touch display TFT XGA (1,024 x768) in 4: 3, while models 17" (PPC-1725 and PPC-1727) They include a resistive touch display TFT SXGA (1,280 × 1,024) in 4: 3 format.
Avalue member of Intel Intelligent System Alliance, uses two Intel Atom processor platforms to provide different options, depending on system applications. All devices support memory SODIMM 204 pin system with up to 4 GB.
In this sense, the PPC 1525 and 1725 models feature Intel Atom D525 dual-core processor and Intel ICH8-M chipset express with capacity to support 64-bit operating systems. While PPC 1527 and 1727 integrate an Intel Atom D2550 processor and Intel NM10 Express chipset to provide enhanced graphics performance and low power consumption.

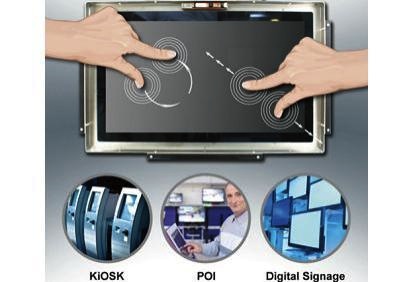

Designed for integration into digital kiosks, totem, etc. these systems have as expansion options of a Compact Flash slot, HDD / SSD SATA 2.5 "and two mini-PCIe sockets, plus Wi-Fi connectivity, microphone and camera with RFID modules.
In terms of I / O, each team has two COM ports, two USB 2.0 ports, one Gigabit Ethernet and one VGA and line output, two speakers of 2 W and PS / 2 (keyboard and mouse).
The design of these systems is very flexible for integration into interactive solutions, since you can "remove" a COM port to support two additional USB ports for USB 2 + 2 or 4 USB COM COM + 1 configuration. In addition, they can operate without fan (Vesa 100 compatible) and have protected front panel IP-65 and Power-On Timer function.
