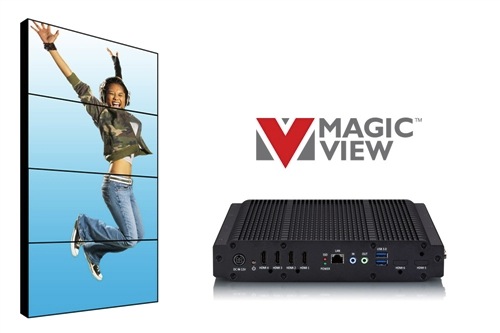

Designed especially for shops and small businesses, Video Wall Mini is the new solution all-in-one of VIA Technologies video wall, able to manage up to four displays with a single player and convert these areas of the retail sector in high definition multimedia environments.
This new solution from VIA Technologies It overcomes the limitations that have a single screen digital signage systems to transform static spaces that have many shops and small businesses in surround multimedia environments that are more attractive for customers.
Video Mini Wall incorporates a single player without fan which supports up to four screens, which provide resolutions of 1920 x 1. 080p powerful VIA MagicView content management platform. This combination not only reduces the cost and complexity of multiscreen installations, but it also simplifies the transmission of a variety of multimedia programming in high definition in all spaces.
In this sense, the screens can be deployed in different configurations separate and intertwined, including 2 × 2 designs; 1 × 4 and 4 × 1, to provide the owners of small businesses and shops more flexibility to customize installations in order to respond to your specific needs.
Epan Wu, director of the division of integrated platforms from VIA Technologies, points out that "grows the demand for digital signage by retailers and other sectors, the limitations of single-screen systems become more and more evident. For this reason, a growing number of customers us has been calling for platforms of several screens, affordable and easy to deploy and manage. VIA Video Wall Mini, our aim is meet this need to rise, providing a very flexible and affordable all-in-one solution that's ideal for transforming virtually any environment with attractive facilities."
Equipped with processors QuadCore E-Series 1.0 GHz and average System VX11PH, both from VIA, the player offers an optimized performance in a wide range of advanced multimedia applications, as well as the playback simultaneously two videos at resolutions of 1. 080p or four videos at 720 p.

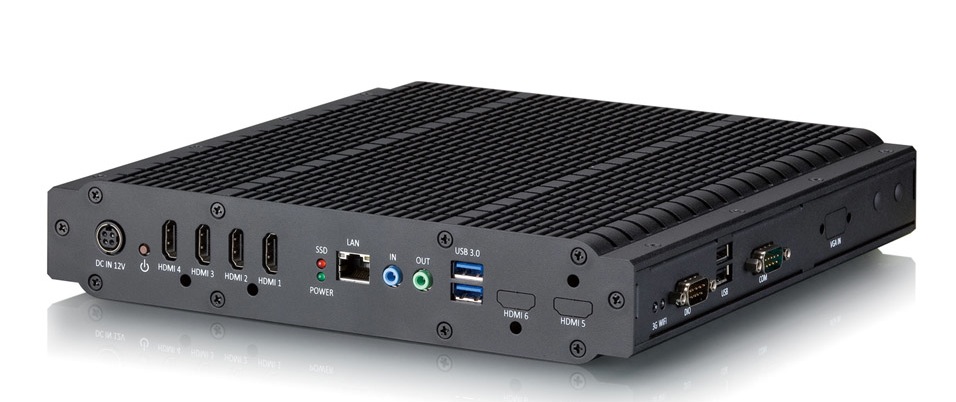

Player built into the solution VIA Video Wall Mini has four HDMI ports that support four displays with resolutions of up to 1.920 × 1. 080p, and can also be configured with ports of entry for cameras in applications integration optional HDMI and VGA video surveillance and security.
Additional input/output features include two USB 3.0 ports, a Gigabit Ethernet port, two audio jacks and a DC in the panel connector front, plus two USB 2.0 ports, a COM port for RS-232/422/485 and a port gave to 8-bit GPIO on the rear panel.
To ensure maximum flexibility in the integration of Video Wall Mini in a wide range of signaling environments connected to the network, the player can also be equipped with various optional modules Wi-Fi broadband and mobile HSPA 3.75 G/UMT via USB and PCIe.
Content management software
Video Mini Wall also incorporates VIA MagicView, powerful and flexible platform for management of content of this company that allows to design, distribute, and play content from digital signage. This software provides advanced features such as planning, management, supervision of clients, generating reports and secure networks.
With the software content management VIA MagicView users can also organize easily and freely, the contents to be displayed on the screens of the system installed in their spaces for maximum impact in various types of environments such as hotels, restaurants , shops, entertainment venues and other public spaces.
