The specialist distribution matrix 4K for conferences, presentations and sessions of advanced training will show in this event the new AT-UHD-CLSO-840, which has inputs and outputs HDBaseT and signal extension of 100 meters, among others functions.

ISA 2017 is the event chosen by the multinational Atlona to present a preview and globally, from 7 to 10 February at the Amsterdam RAI (hall 5 - stand S92), its new development: AT-UHD-CLSO-840, a switch versatile matrix with eight inputs and four outputs HDBaseT HDMI and 4K, especially suitable for video conferencing, presentations on multiple screens or facilities breakout rooms.

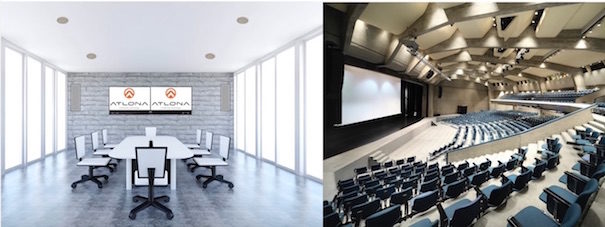

The CLSO-840 has input channels and local and remote outputs for maximum flexibility in audiovisual formats and connectivity options switch, thus providing a complete solution matrix for use in hospitality, educational and corporate environments to professionals.

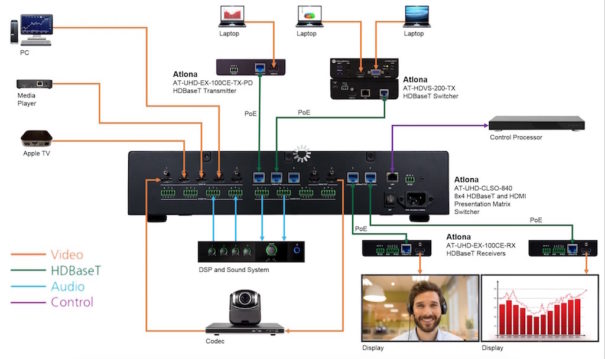

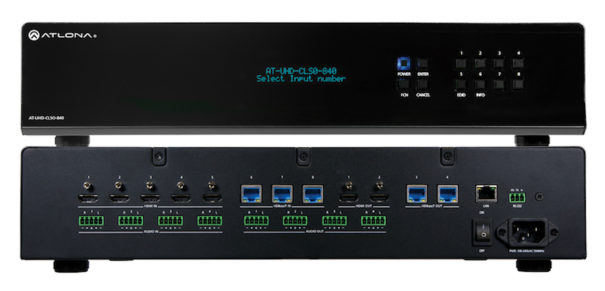

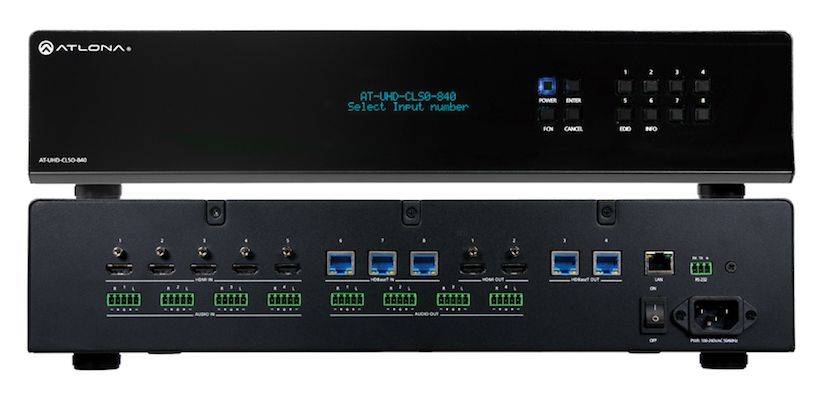

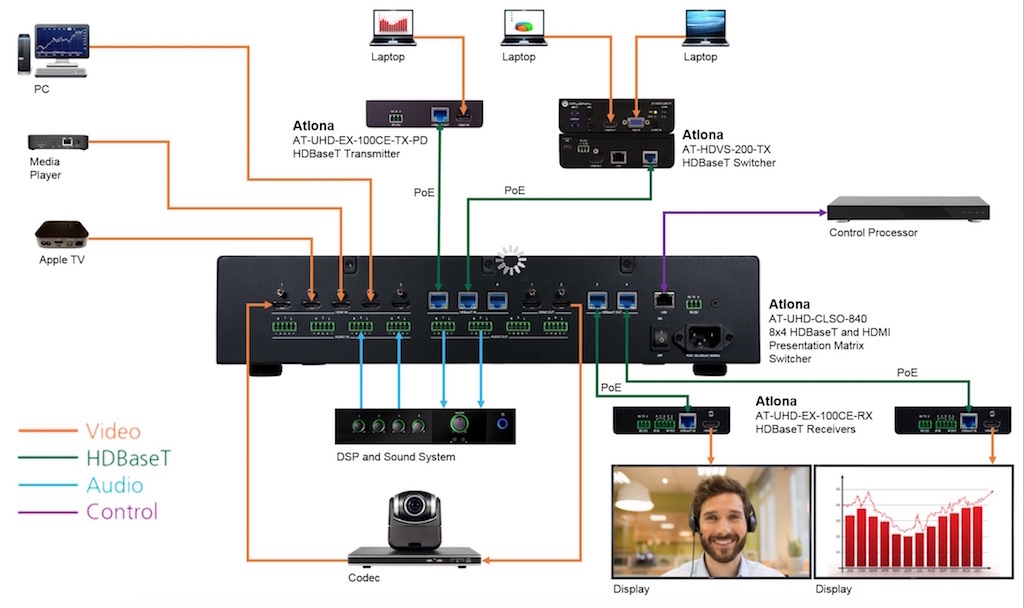

This new array equipped with five HDMI inputs, three HDBaseT, two HDMI outputs and two HDBaseT, so it can be used in different types of installations requiring at least three independent outputs for connection screens or video codec.

Por ello también incluye una matriz de audio independiente 8×4, cuya conmutación de matriz separa el audio de las fuentes de vídeo y las reparte en cuatro salidas analógicas balanceadas. Cuenta con cuatro entradas de audio analógicas, cada una dedicada a integrar el contenido en la salida de vídeo correspondiente.

Steve Kolta, responsable de productos en Atlona, explica que “CLSO-840 es nuestra respuesta a muchas peticiones de nuestros socios e integradores para crear una potente matriz 4K y de cuatro salidas, necesaria para realizar videoconferencias y aprendizaje a distancia. Al mismo tiempo hemos creado sistemas de matriz de vídeo complejos que son fáciles de usar y que funcionan con nuestras series HDVS-200 y UHD-EX que permite la conmutación de entradas remotas y la extensión de HDBaseT”.

Another advanced feature of this system is the Power over Ethernet (PoE) on inputs and outputs HDBaseT, allowing the use of transmitters and HDBaseT receptors UHD-EX or HDVS-200 series of Atlona and eliminates the need to separate power supplies remote components. All these inputs and outputs facilitate transmission over 100 meters.

This new matrix has a LAN connection to achieve an IP-based control, including configuration and monitoring with Atlona management system (AMS) that customers can download for free, and extend control over TCP / IP or RS- 232 to remote devices over HDBaseT.

The audio output on each channel has an independent volume control and five-band equalization. The matrix also provides management HDCP, allowing Apple resources function properly when being used in teleconferencing systems.
