As it did in Elche, in these two hospitals MeDIP Health has been the company responsible for the project that has again focused solutions SpinetiX the Swiss brand. This new communication channel can display information such as health campaigns, product offerings or general information of interest to the patient.

MeDIP Health in Hospitals IMED

IMED Hospitals es un grupo sanitario privado con presencia en el levante peninsular que actualmente cuenta con 3 hospitales y 2 policlínicas, y en los que trabajan más de 1.000 profesionales. El nuevo centro de IMED Valencia se ubica en la zona noroeste de la ciudad. Cuenta con 185 habitaciones, distribuidas en 8 unidades de hospitalización diseñadas con un estilo vanguardista y equipadas con los últimos avances en tecnología para la atención médica, el entretenimiento y el bienestar de los pacientes y sus acompañantes.

In order to improve communication with the patient, the hospital management decided to establish a communication channel to show patients relevant information about the center and its services, as well as disseminating prevention campaigns and health advice.

MeDIP Health in Hospitals IMED

This channel was based on a digital signage solution that would respond to a series of requirements:

  • They should have 70 screens capable of operating continuously 24 × 365.
  • Configuration management and players and load content had to be carried out remotely.
  • Creation and modification of content should be quick, easy and centralized at the offices of IMED in Alfaz del Pi (Benidorm).
  • It should be compatible with the existing system of signage in IMED Elche, which has 45 screens installed, 12 of them forming three videowalls 4 displays each.
  • It was necessary to design an optimal architecture for automatic updating of the contents of the players, taking into account the existing network resources.
  • Additionally it needed to expand the project, integrating functionality in Torrevieja IMED facilities with a total of 6 screens.

To install the new system of signage in IMED Valencia and Torrevieja, the project was entrusted to the company Medip HealthWho chose digital signage solution Swiss brand Spinetix, As it did in IMED Elche.

Specifically, for new players it has been chosen HMP300 model that coexists with HMP100 installed in IMED Elche. For content editing, SpinetiX has provided a desktop solution called Elementi distributed through licensing. In this case we have opted for the license Elementi X because, among other things, allows you to manage an unlimited number of players or upload files on network drives.

MeDIP Health in Hospitals IMED

The physical installation of new players Valencia took place within reduced time as these players only need to be connected to the mains and the data network. Once installed, the management becomes completely remote.

Regarding the players already installed in Elche, the firmware was updated to ensure that the contents of the new Elementi X were fully supported. In addition, existing projects of the old editing software contents of HMD migrated to the new Elementi.

MeDIP Health, with the advice of MasscommHe worked with the Department of Computer IMED to size, configure and launch servers periodically loaded the contents are automatically downloaded by players to display on screens.

Thanks to this technology, the marketing team IMED makes editing and updating content without relying on anyone. Since the validated content players are automatically downloaded, the marketing team is freed from the task of loading content and maintenance or management of players.

Este nuevo canal de comunicación, creado por la red de pantallas de digital signage, permite mostrar información como campañas sanitarias, ofertas de productos o información general que pueda ser de interés para el paciente. La solución propuesta por Medip Health está alineada con los principios de máxima calidad y la mejora continua en el trato al cliente.

Editing the contents is intuitive, easy and fast. In addition, we have generated templates that integrate with existing tools and nurture corporate use other communication channels of the company, as their website or RSS news channel. Thus, modifying in one place the information, it will automatically update also in the digital signage system allowing a steady stream of updates on patient information.

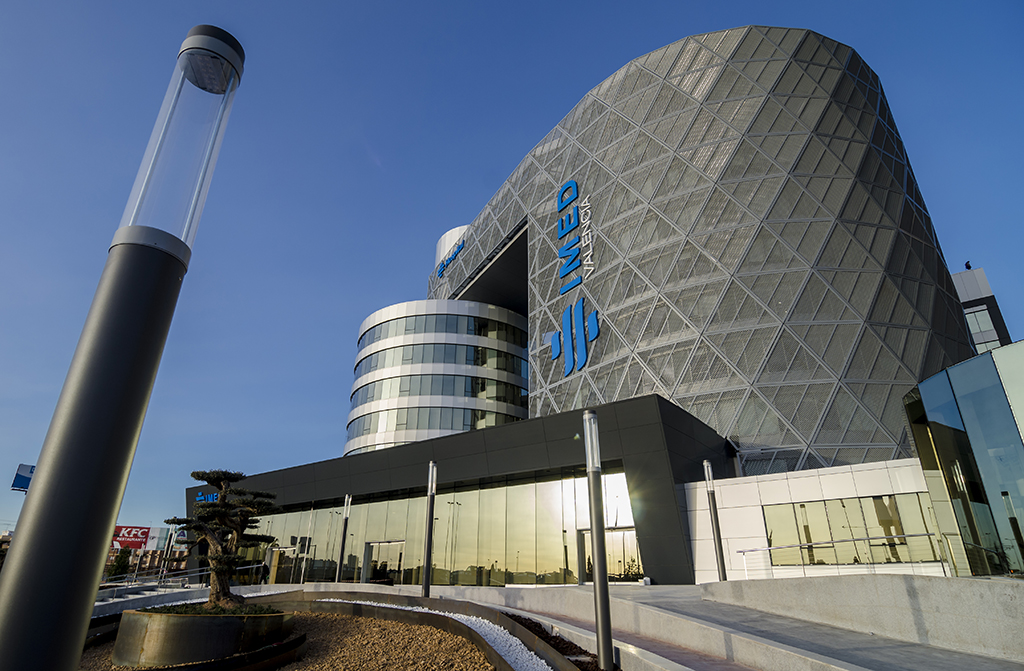

Imed Valencia

Second installation phase

MeDIP Health has already installed 45 screens in Elche, and in this second phase has been completed with 60 screens in IMED IMED Valencia and 6 in Torrevieja.

Este aumento en el número de pantallas ha supuesto una mínima actualización en la que se ha aprovechado la infraestructura existente. Además, la metodología de trabajo a nivel operativo es similar pero más eficiente, gracias a un plan de formación adaptado a las necesidades específicas de IMED. Esta solución está totalmente preparada para dimensionar el número de pantallas en los hospitales en el futuro, sin que suponga aumento en infraestructura central ni nuevos gastos operativos.
