Equaphon, distribuidor de este fabricante en Argentina, ha instalado el sistema de audio en esta moderna discoteca que acaba de abrir sus puertas en Buenos Aires.

Rose in Rio Powersoft equaphon

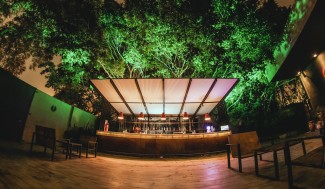

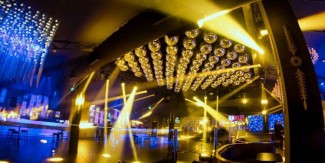

Rose in Rio, un nuevo espacio para el ocio nocturno de Buenos Aires, ubicado a orillas del Río de la Plata, en el área conocida como Costa Salguero, cuenta con un moderno sistema de sonido, según el proyecto de sonorización realizado íntegramente por Equaphon, distributor of Powersoft en Argentina y Uruguay.

“Los propietarios de esta discoteca y club nos han confiado desde hace muchos años varios proyectos en sus centros, y en el caso de Rose in Rio nos llamaron cuando comenzó la obra. Eso fue muy bueno, ya que nos permitió interactuar de otra forma”, explica Carlos Maiocchi, gerente general de Equaphon.

Rose in Rio Powersoft equaphonThat's why, this company presented a project according to the requirements of the owners of Rose in Rio and determine the best sound system, your installation, Adjustment and training in the use of the system. In addition to high audio quality and that will adapt to the environment of the room, It also had to provide uniform coverage throughout the space., as well as individual level control of the different zones to adjust the system according to the distribution of the public.

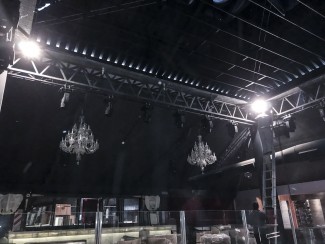

Rose in Rio Powersoft equaphonIn that sense, The biggest difficulty was the different heights of the ceiling to install the sound systems and thus cover a large audience area, whose solution was to distribute . Sound sources at twelve different points, without disturbing aesthetics, y utilizar muchos canales de amplificación para configurar todas las zonas, con un control total de nivel y ecualización.

Equaphon instaló un sistema de sonido de su marca STS Touring Series (fabricada en Argentina), compuesto por veinticuatro modelos Linea V10 distribuidos en doce puntos del local para cubrir la pista y zonas próximas; seis subwoofers STS Concerto SUB, ubicados juntos debajo de la cabina del DJ; doce mikra4 en las dos terrazas exteriores; dos STS D10 en una de las salas VIP del local, e igual número de Cantata+ para monitorización en la cabina del DJ.

Rose in Rio Powersoft equaphonEste sistema se ha amplificado con una unidad X4 de Powersoft, para manejar los seis subwoofers, y cuatro amplificadores M50Q DSP+ETH: tres para controlar los doce puntos de dos STS Linea V10, while the fourth is responsible for amplifying the STS mikra4 and STS D10 of the VIP area.

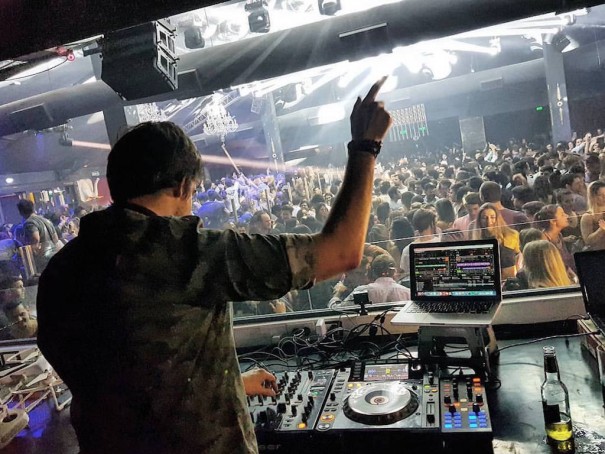

The rack with the amplifiers is located in an enclosure, located behind the DJ booth, controlled with a Pioneer DJM-900NXS2 console and CDJ-2000NXS2 players. Harmony software is also used, with which the system was adjusted at the installation stage, as well as to equalize and align each of the twelve reinforcement points independently.

"The entire system is working properly., complying with all the requirements we had, says the head of Equaphon,. The Harmony software is very useful in an installation of this type, because it allows us to have absolute control of the different places to sound and a great flexibility of use of the installed ".
