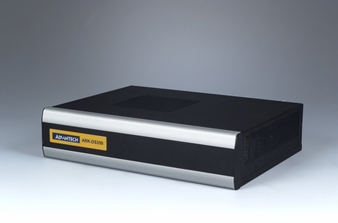

Eurosiscon the new model has presented Advantech ARK-DS350, a compact/embedded industrial PC for digital signage which is presented in two versions of the AMD microprocessor: 3100 + AM2 and AM2 4200 +.

Eurosiscon account, within its range of products for industrial control and automation based on PC, with a new model of compact/embedded industrial computer belonging to the family of equipment for digital signage: Advantech ARK-DS350 model. It is an advanced platform for digital signage which is presented in two versions of the AMD microprocessor. It's the models 3100 + AM2 and AM2 4200 +, both versions have installed chipset AMD 780MN + SB700 memory L2 cache of 512 KB and 2 MB respectively. In addition this equipment comes with 1GB of RAM series can expand the memory up to 4GB.

It incorporates the graphic chipset ATI Radeon HD 3200 with 512 MB shared memory, offering a maximum resolution of 2560 x 1600 @ 60 Hz. This graphic chipset uses video using the decoder acceleration for H.264, VC-1 and MPEG-2, offering HD video playback and precise images transitions, what makes the ideal platform for applications digital signage where a good playback of multimedia content is crucial to get a great visual impact. Their interfaces VGA and HDMI allow you to work with two screens at the same time (dual display) offering Full HD 1080 p.

In relation to the storage of data, say that this machine is delivered with a hard disk SATA 2.5 '' 160 GB and also has a 1 Socket CompactFlash Type I/II. In terms of connectivity, the ARK-DS350 has 2 interfaces Giga LAN Broadcom 5764 M, 4-port USB 2.0 and 1 COM RS-232. In addition offers the interfaces of audio Line-out, Mic-in, Line-in, 1 slot expansion Mini PCIe internal for optional installation of a wireless LAN module or TV tuner, 1 interface PSW (Power Switch Interface), according to watchdog and function to set the hours to the that team should be put in operation.

It has a compact design, low profile and little weight (2 Kg), allowing you to easily install it behind any LCD screen or plasma of large size, is also VESA compatible. Its working temperature range is from 0 to 40 ° C. Regarding supported operating systems will say that it works with the most common such as: Windows 7, Windows XP, Windows XP Embedded, Linux Fedora 9.0
