These devices are developed so as not to saturate the bandwidth when distributing HD video images in motion over WiFi or the Internet to several screens of a digital signage network, at live events and conferences, as well as in presentations in various locations.

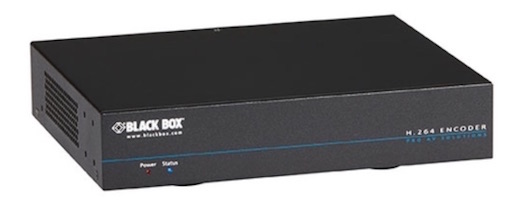

Black Box VS2000VS2000 encoders and decoders Black Box are especially suitable for transmitting Full HD video with moving images over any IP network, without using all available bandwidth thanks to H.264/MPEG-4 compression, as well as using the Internet and even WiFi to distribute audio and video content to multiple screens.

These devices can be integrated with remote sources (and also managed remotely) as videowalls, digital information displays and other AV systems, and thanks to its PoE power it is not necessary to install additional power outlets.

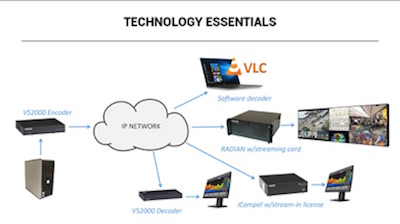

Black Box VS2000 schematicThe VS2000 series is especially suitable for the distribution of analog audio and HD video signals over IP networks with H.264 encoding for live events, digital signage, conferences and presentations in various locations, with very low bandwidth .

the vs-2000-enc can be used to stream peer-to-peer video to an unlimited number of set-top boxes using standard multicast technology. The video stream can be received with the VS-2000 decoder, third-party devices, software or being sent over the Internet.

Key features:

  • Converts HDMI video and analog audio input signals into H.264 streams.
  • Works with vs2000 decoder or integrates with any other H.264 decoder, media player, VLC or media player.
  • Distributes video and audio signals to an unlimited number of set-top boxes.
  • Suitable for application in corporate environments such as health, education, energy and transport, Etc.
  • Works with Black Box digital signage, videowalls and PoE network switches.
  • Supports HDMI up to 1,920×1.200 to 60 hz.
  • Use in both multicast and unicast mode.
  • Low bandwidth consumption, so that it can be easily streamed over the Internet.
  • Power via PoE to receive power from the network switch.
  • Gui or Telnet control for simple and flexible management.
  • Low bitrate (bit rate): since 2 to 30 mbps.
