Nuevo Shure PSM1000: wireless monitoring systems at the highest level

The renowned audio company Shure Incorporated has presented the new PSM1000 wireless monitoring system, A professional complete monitoring system kit that is designed to integrate with the Shure Wireless Workbench program (WWB).

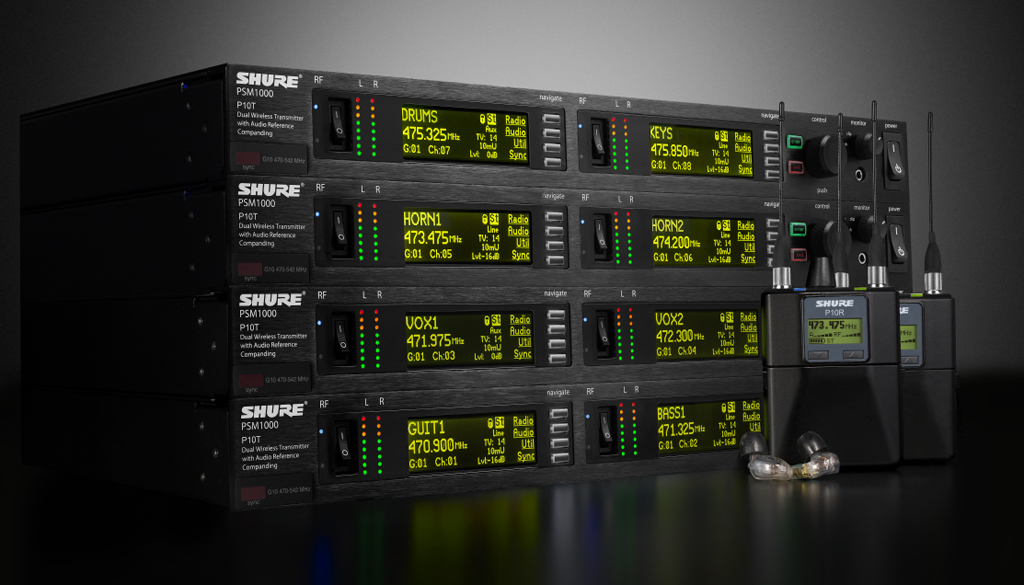

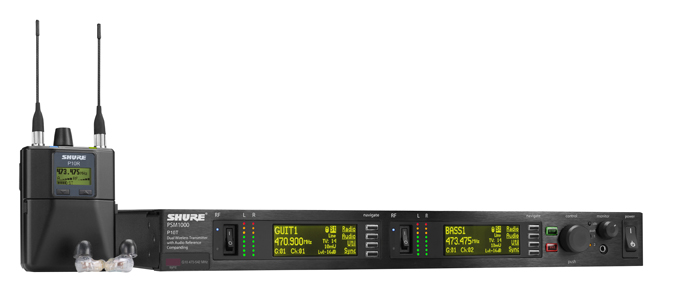

Shure has launched its new Shure PSM1000 wireless monitoring system on the market. The Shure PSM1000 system transmitter is the new Shure P10T, which occupies one rack unit and whose configuration and control is carried out intuitively through its front panel and LCD screen. This two-channel transmitter with a power of 100 mW (selectable) It also includes two Ethernet ports for cascade connection, internal power supply and full compatibility with Wireless Workbench spectrum management software 6.0. And all this in a robust professional chassis, designed to resist and offer the best results in both fixed installation and Touring applications at the highest level.

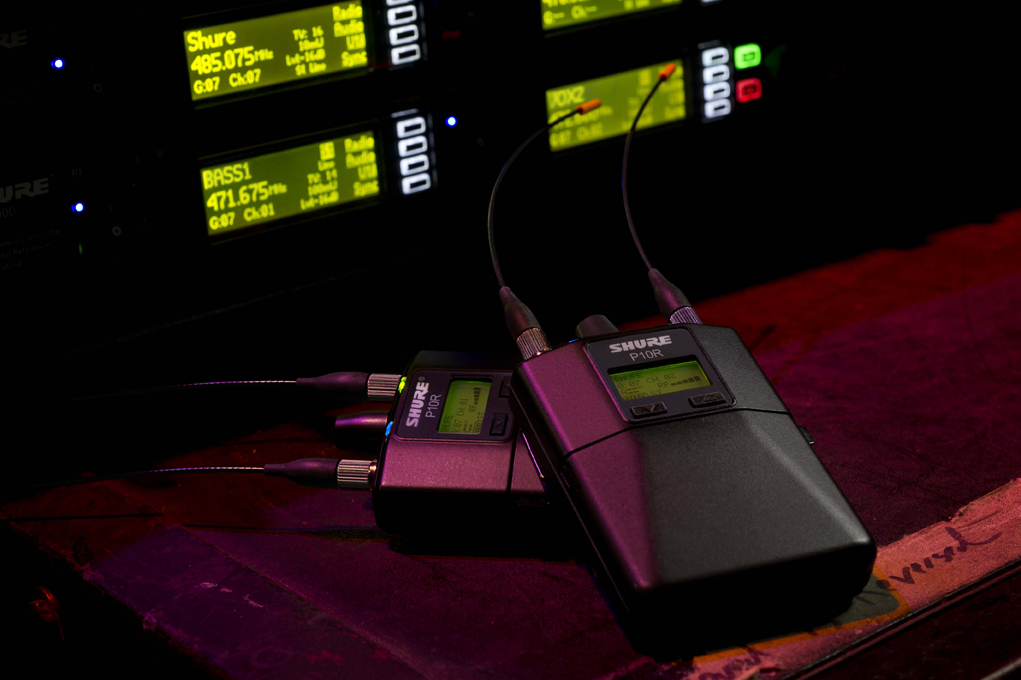

El receptor del Shure PSM1000, called Shure P10R, It is a robust metal construction and small size flask., including LCD screen for easy and intuitive operation. It has the peculiarity of having a diversity reception system, so it includes 2 external antennas that guarantee better and more reliable operation, both in RF and audio.

PSM systems 1000 include Cue Mode / MixMode, which allows users to add up to 20 different monitor mixes in a single 'receiver', with the push of a button. Either receiver can be used with CueMode, so the monitor technician can quickly hear each performer's mix, without need
of additional equipment.

RF filtering system

Los PSM 1000 They also have an RF filtering module. The PSM900 and PSM1000 systems include the same RF filtering system as Shure UR wireless microphones, which significantly reduces any type of RF interference resulting in a more robust signal, clean and virtually immune to fading and unwanted sounds.

They have up to 40 compatible channels. P10T and P9T transmitters dramatically reduce intermodulation between frequencies, allowing the coexistence in the same band of up to 20 simultaneous transmissions on PSM900 and 40 on PSM1000 systems. In addition, They have RF Mute, an ideal feature for festivals and other multi-stage events, which allows disabling RF transmission, making it possible to make adjustments without disturbing our RF environment during the process. They also have active RF gain control. Excess RF signal can lead to fading if the receiver is too close to the transmitting antenna. Active RF gain control detects peaks in the RF signal and reduces RF sensitivity to prevent any overload.

Compatible with PSM900

PSM1000 systems are also compatible in terms of audio and frequency synchronization with PSM900 systems of the same frequency range., and greatly facilitate the typical tasks of the technical staff prior to the start of the shows. The P10R body packs scan their entire frequency range and send this data via IR to the P10T transmitter., which then assigns compatible frequencies to other transmitters that are connected to the same network or transfers the data to the Wireless Workbench software 6.0. It also has a bandwidth of 80MHz available for transmissions: a wide range of up to 7 bands offers users the maximum flexibility needed in today's RF environments, so loaded and unpredictable.

Like the Shure PSM 900, The PSM1000 has an extensive range of accessories to optimize and guarantee perfect operation: directional antennas, active antenna distributors for 4 u 8 transmitters, rechargeable Lithium Ion batteries (with its corresponding charger), for your P10R receivers…
