Ecler, company specialized in the development of amplifiers, new digital mixer has joined its portfolio powered CA200z, which has 2 outputs amplified area and 6 audio inputs, along with an extensive and practical allocation of options of external remote control, making it "all-in-one" solution perfect in commercial premises, education classrooms and halls of media and corporate presentation, etc.

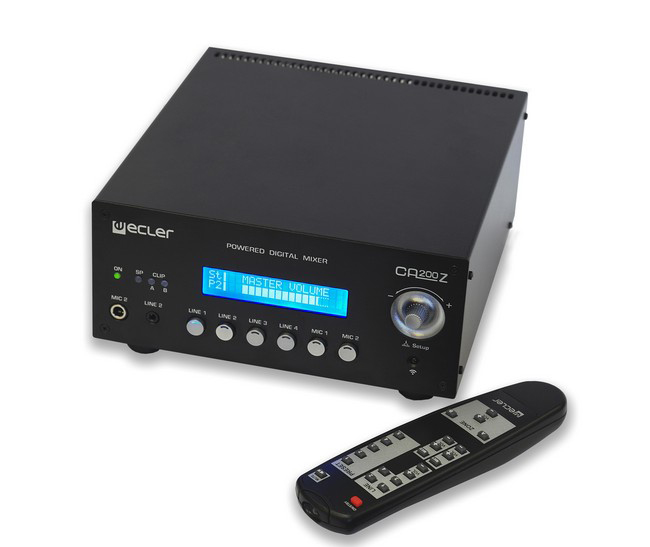

Ecler Ca200z

Ecler He has released the CA200z, a digital amplificador-mezclador with 2 output zones and 6 audio inputs, along with a comprehensive and practical list of remote control options. Is a perfect solution in many applications: a device "all-in-one" in commercial premises, multimedia projects and presentation AV rooms or corporate, classroom education, etc., being perfectly integrated with external devices control, both Ecler and third parties.

Main features:
  • Amplifier 2 x 70 W RMS @ 4 Ω
  • Stereo, Mono, bridge or Zones a/b independent working modes
  • 4 stereo line inputs. Each output separate audio (zone A or B) can have its own selection of a line input from the 4 available, with volume control and also independent tone adjustment
  • 2 balanced microphone inputs. MIC1 or MIC2 can be sent independently to the area A or area B, well using the Talkover function / Pager or as a direct blend
  • Talkover function / Pager with 2 levels of priority (MIC1 and MIC2 can have the same or a different level of priority)
  • MIC1 and MIC2 provides Phantom power and door noise and Talkover function / independent Pager, with adjustment of thresholds, attenuation, time attack, etc.
  • Input additional Pager for the connection of an optional console announcements MPAGE4
  • Tickets MIC2 and LINE2 folded in front panel with connectors jack and mini-jack respectively
  • Line output AUX a/b, for the connection of external amplifiers or mixers or parent
  • Front LCD display
  • Digital rotary control on front panel (encoder), for the selection of area, basic and advanced adjustment of volume and navigating setup menus
  • Shortcut keys on front panel for the LINE and MIC inputs
  • LED indicators, ON / STANDBY, Signal Present and CLIP LED
  • Interface RS-232 for third party external remote control compatible with the Protocol CA-NET
  • 2-port Remote included, compatible wall control WPm series (0-10 VDC). A port assigned to each zone output: volume adjustment and selection of sources of audio or recovery of presets
  • IR receiver (remote control infrared included)
  • 5 memories of settings (presets), recoverable from the controls on the front panel, remote control by infrared, panels WPM-SR and RS-232 communication interface
  • Recovery of the preset function no. 1 at boot
  • The front panel lock mode, to avoid tamper
  • LCD display with ways to rest ON, OFF and DIMMED (grayed out)
  • Amplifier class D 2 x 70 Wrms. can work in Bridge mode
  • Universal switching power supply
  • Function "Auto stand-by" (these last 4 features make the CA200z on a device truly green)
  • Dimensions: width of half-unit rack standard, compatible with the popular format mini-rack current, but also compatible with rack mount standard width using the optional 2UHRMKIT (same for both methods of mounting kit)
Accessories:
  • Wall control panels series WPm
  • Notices of desktop MPAGE4 station
  • Notices of desktop MPAGE1 station
  • 2UHRMKIT rack mount kit
Recommended speaker selection:
  • AUDEO series
  • AMBIT series
  • IC series (ceiling mount)
  • ICPLUS (ceiling mount)
Applications:
  • Teaching classrooms
  • Meeting rooms / corporate.
  • Multimedia Presentations (in combination with video projectors, screens, etc.)
  • Commercial premises
  • Museums and exhibitions
  • Museums
  • Audiovisual systems with integrated remote management (Crestron, Extron, AMX, etc.)
