Axiomtek Panel PC for digital kiosks and industrial environments

Axiomtek has developed the industrial panel PC, distributed in Spain by Anatronic, which has a 12.1” screen to be integrated into digital kiosks or the industrial environment.

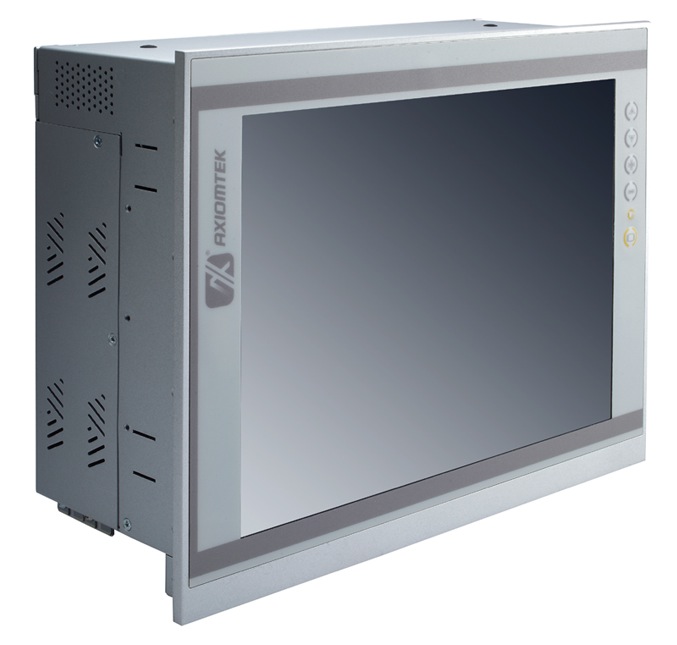

The P1127E-871 model is the new industrial panel PC from Axioms, whose systems are sold in Spain Anatronic, It has a 12.1” TFT XGA screen, Third generation Intel Core processor and two PCIe expansion slots.

With a design protected with an aluminum cover and IP65/Nema sealing 4, This all-in-one solution delivers workstation performance, con interfaces DVI y HDMI (display dual), of expansion slots (PCIe x8 o PCI) and WiFi connectivity as an alternative in factory automation, kiosks and various industrial environments.

For Virgil Hsu, product manager de Axiomtek, “This system only needs three screws on the back for installation, so it contributes to facilitating maintenance tasks. It has the Smart Fan function to adjust the fan speed based on the CPU temperature, reduce noise and increase system reliability”.

For adaptation in digital kiosks, The P1127E-871 panel integrates speakers that play multimedia content and supports a WLAN module antenna (WiFi 802.11b/g/n) optional for wireless network connectivity (LAN/GPRS/GSM y 3G) with a data rate of up to 150 Mbps.

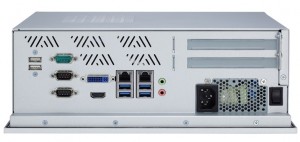

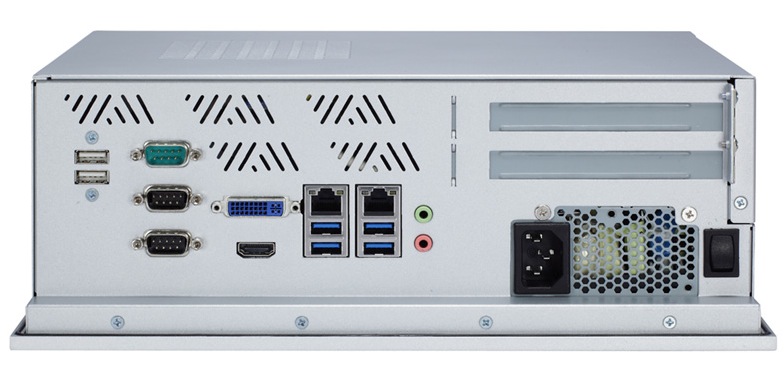

Depending on application needs, This model can be installed on a panel, pared, VESA arm and desktop. Also includes two DDR3-800 SO-DIMM sockets of up to 16 GB, three COM (two RS-232 and one RS-232/422/485), four USB 3.0, two Gigabit Ethernet ports and a 2.5” SATA HDD drive bay.
