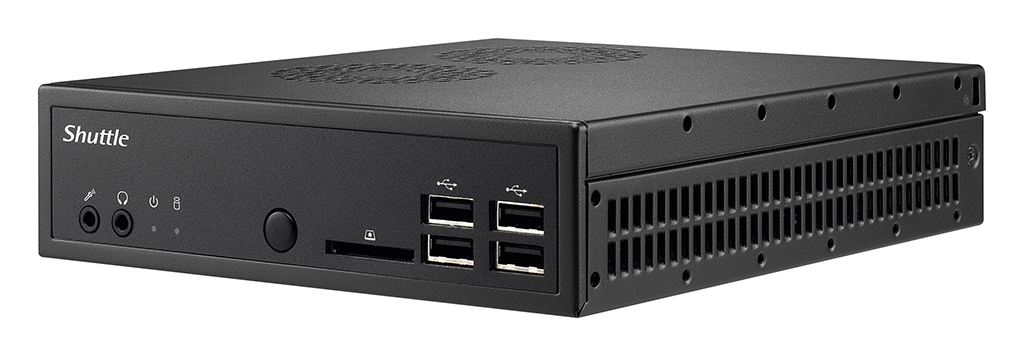

Barebone PC Shuttle DS81L for playing 4K content in extreme conditions

The Shuttle DS81L is a barebone PC 43 mm resistant to temperatures of 0 of 50º, that allows the playback of 4K content, transmitting the signal to 60 Hz via DisplayPort and 30 Hz over HDMI.

The barebone PC DS81L has Shuttle It is a variant of the DS81 model. It shares all its characteristics but only requires a supply voltage of 12 volts instead of the usual ones 19. This feature allows the use of alternative stabilized power sources instead of the supplied power supply. 84 watts.

The DS81L motherboard relies on the Intel H81 chipset, making it compatible with numerous Intel desktop processors with LGA1150 socket (TDP up to 65 watts). The two SO-DIMM sockets accommodate a total of 16 GB. A SATA port is available 6 GB/s for a 2.5 SSD or hard drive″. One Mini PCI Express slot and one mSATA slot offer additional expansion possibilities with WLAN or mSATA SSD.

The flexibility of this model makes it ideal for both tight budgets and the desire to achieve maximum system performance.. It is ideal for the reproduction of very high resolution 4K content (3.840×2.160 pixels). The image signal can be transmitted with 60 Hz via DisplayPort and with 30 Hz via HDMI.

A heat pipe cooling system with dual regulated fans housed in a robust steel casing allows the equipment to be used at an ambient temperature of 0-50 °C.

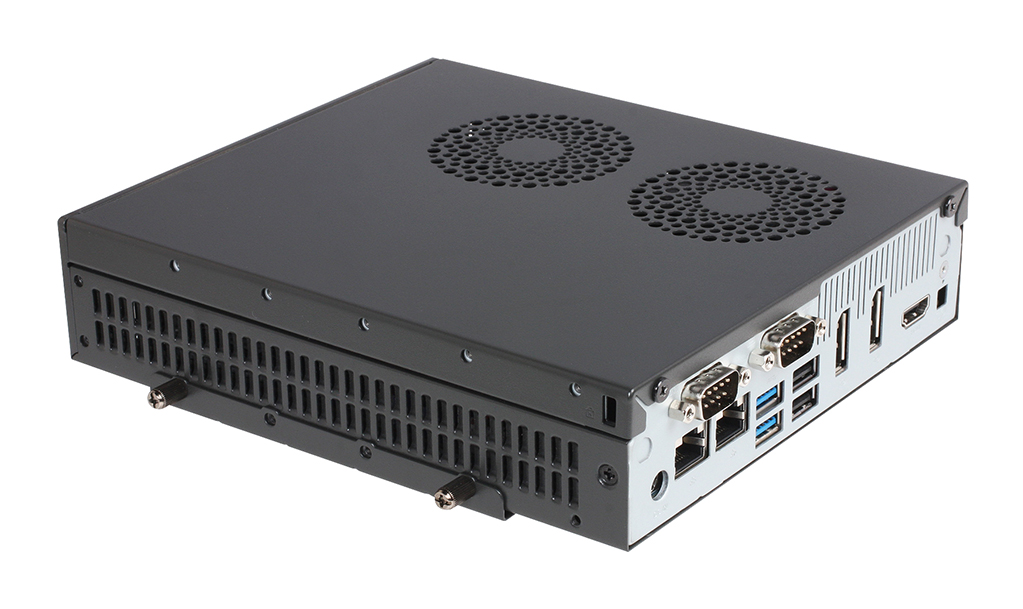

Este barebone integra dos interfaces Gigabit Ethernet, of USB 3.0, dos DisplayPort, HDMI, audio, two RS-232 and a card reader. On the back there is also a four-pin connection to start the equipment remotely.. If necessary, A jumper on the motherboard allows the device to be on continuously and to start automatically as soon as it is connected to the power supply..
