The Valencian area has completed its technological renovation, carried out in two phases, which has culminated in an innovative provision of audio-visual equipment in the auditoriums and halls that compose it, whose integration has made the specialist facilities audiovisual Ruybesa, awarded the main contract in tender.

Valencia Palacio de Congresos Ruybesa

About to celebrate his nineteenth birthday, the Palacio de Congresos de Valencia He has presented the result of an ambitious project, driven by the Town Hall of Valencia and developed during the fiscal years 2016 and 2017, for the technological transformation of the building, providing all amenities of advanced equipment for stage lighting, security, HVAC, audio and video in order to put it to the Vanguard to hold major events and conferences of all kinds.

This project has been integrated by the specialist in audiovisual installations Ruybesaawarded the main contract, public tender for the supply and installation of audiovisual equipment in the auditoriums and halls that make up the Palacio de Congresos of Valencia. This company also made modernization of the stage lighting system last year, replacing the existing equipment by spotlights with Led technology.

Valencia Palacio de Congresos Ruybesa

From the commercial point of view, the Palacio de Congresos of Valencia team is working with a portfolio of over 500 events at the moment. Much of the success in the celebration of such acts is due to the versatility of their infrastructures. The uniqueness that provided the design by Norman Foster, the building contributed to his election as best European building by the Royal Institute of British Architects, shortly after his inauguration.

After investments of 2016, with an injection of € 450,000, the Ayuntamiento de Valencia has focused the second phase of the project to turn this installation in a technologically competitive Centre, at the height of the most advanced conference centres, which are It has resulted in the renewal of fixed audiovisual equipment, new systems, developments and cutting-edge technologies.

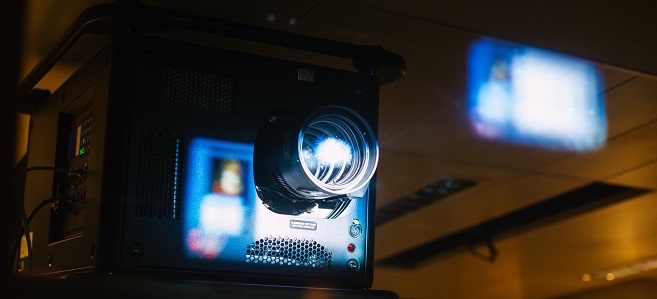

Palace of congresses Valencia Ruybesa projector barco

Ruybesa raised for this renovation (more details in the attached table) solutions such as include laser projectors in all namespaces (not less than 5,000 lumens); switch the system to 4K, with cameras with this technology provided with optical zoom 20 x (similar to the film cameras) and wide-angle 24 mm (which provides maximum sharpness and reduces the 'ghost' effects and reflections), in addition to incorporating a system multilayer Blackmagic for a dual purpose: realization of cameras and live presentation.

To this is added the use of the IP Dicentis of Bosch Conference system (this building is pioneer in Spain in the acquisition of the same so far) and the simultaneous translation system Integrus, offering integrated solutions that unite auditoriums and halls to through the computer network. For those rooms without installation or pre-installation of Conference or simultaneous interpretation, has designed a portable rack that, connected to a computer network socket in the room, receives the translation from existing cabs, which guarantees maximum intelligibility of speeches and presentations, achieving similar to the face-to-face debate experiences.

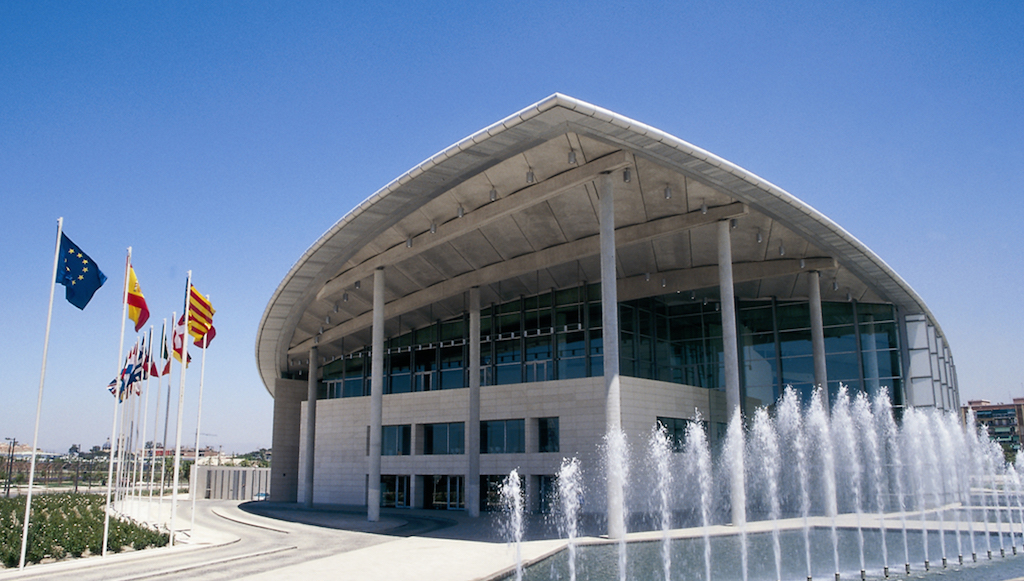

Congress Palace, Valencia

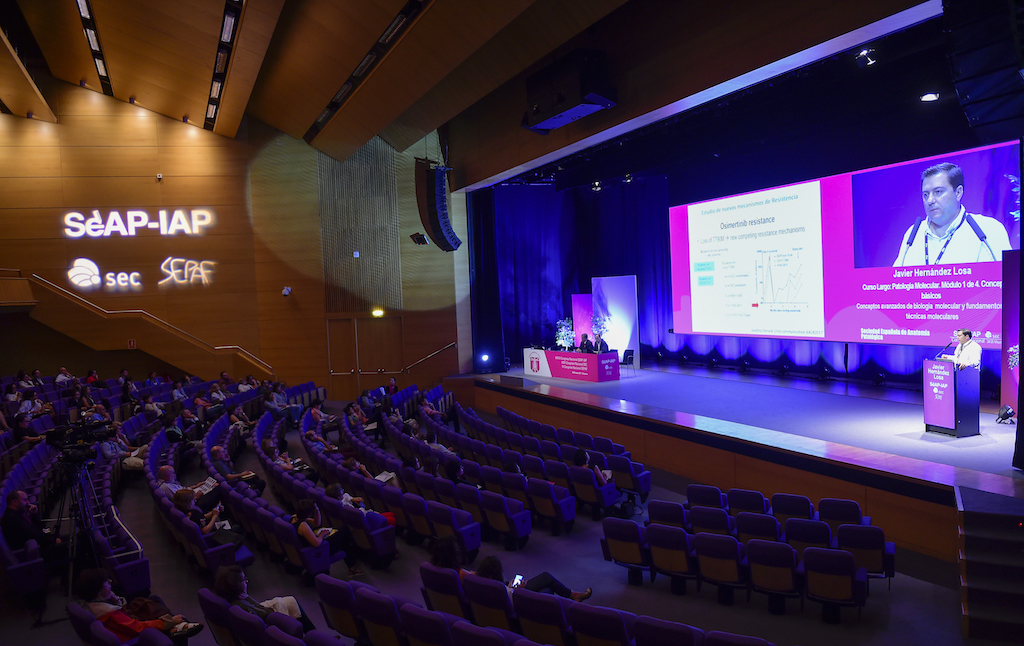

A new system has been incorporated in the main auditorium electroacoustic line array, which minimizes the distortions to the fullest and great faithfulness to high frequencies, which provides for optimum sound at all times and immersive, to the extent that the Congress is also home to unique specialized in Valencia which has up to now with this kind of technology in the building.

AV equipment installed in the Palacio de Congresos of Valencia

Auditorium 1:

  • Lighting system of Equipson, with light control table Chamsys and Led lights of Mark.
  • Laser projection, 30,000 lumens and 3-chip DLP, system of Ship.
  • Routing of signals in 4K, matrices and equipment of Extron.
  • System imaging, PTZ cameras of Datavideo and 4K models Panasonic AG-UX180EJ.
  • Mixing and recording professional 2 Atem and recorder Hyperdeck system of Blackmagic, and Datavideo video encoder/decoder.
  • IP Dicentis conference system of Bosch.
  • Electroacoustic system of D.A.S. Audio.
  • Microphone system Sennheiser.
  • Wireless intercom system of Altair.
  • System control processor and control via iPad's Crestron.
  • Digital signage for an bookrest monitor system of LG.

Auditorium 2:

  • System Equipson lighting, with table of control lights Chamsys and Mark Led lights.
  • Laser projection, 12,000 lumens and 3-chip DLP, system of NEC Display.
  • Routing system of signals in 4K, matrices and equipment required for Extron.
  • System imaging, cameras PTZ Datavideo and 4 K Panasonic AG-UX180EJ models.
  • System of mixing and recording professional 2 Atem and recorder Hyperdeck of Blackmagic and Datavideo video encoder/decoder.
  • IP Dicentis of Bosch Conference system.
  • Sennheiser microphone system.
  • Altair wireless intercom system.
  • Digital signage for an bookrest LG monitor system.

Auditorium 3:

  • System Equipson lighting, with table of control lights Chamsys and Mark Led lights.
  • System of laser projection, 8,000 lumens and DLP, 5,000 lumens, NEC Display.
  • Routing system of signals in 4K, matrices and equipment required for Extron.
  • System imaging, cameras PTZ Datavideo and 4 K Panasonic AG-UX180EJ models.
  • System of mixing and recording professional 2 Atem and recorder Hyperdeck of Blackmagic and Datavideo video encoder/decoder.
  • IP Dicentis of Bosch Conference system.
  • Sennheiser microphone system.
  • Digital signage for an bookrest LG monitor system.

Rooms of commissions and digital information system:

  • The nine rooms of commissions are laser projectors and DLP, 5,000 lumens, NEC Display.
  • Seven digital totems with integrated monitor and system of distribution of AVerMedia.
