Televés equips the telecommunications installation of the new Juventus stadium in Turin

The Galician firm Televés has been chosen by the Juventus football club of Turin to equip the telecommunications installation of its new stadium. The installation guarantees the digitization and distribution of the signal from the venue's cameras, and its arrival both at the media platform and at more than 400 televisions located in different areas of the field.

Televes has equipped the telecommunications services installation of the Juventus Stadium, the new and spectacular venue where the historic Italian football club plays its matches. Inaugurated last September, Juventus Stadium is one of the most modern and advanced sports venues in the world. It has the capacity to 41.000 spectators, con 3.600 premium seats and 120 VIP stages. It also houses the club's museum, a commercial and leisure area of 34.000 square meters and a parking lot with capacity for 4.000 vehicles. The project has involved an investment of 122 million euros and has been prepared according to the most demanding quality criteria, safety and sustainability.

The stadium of the Old Lady ―the name by which the most successful football club in Italy is known― is also a leading example in the use of new technologies at the service of spectacle., comfort and safety. Through its Italian subsidiary, Televes Corporation has successfully faced the challenge of providing this avant-garde facility with the most advanced telecommunications facilities for the distribution of television signals.. To achieve, A project has been implemented that integrates digital technology equipment with fiber optic solutions, television over IP and Video on Demand.

digital television, IPTV and 'Video on Demand'
The brain of the installation is a control room from which the equipment that carries the television signals to the telecommunications equipment distributed throughout the stadium is managed., including eight restaurants and 20 bares, the area reserved for authorities, the locker rooms, the Partner's Club, four siutes and 62 sky box (private stages), what do they count, among other equipment, with screens integrated into the seats.

The installation carried out guarantees the digitization and distribution of the signal collected by the cameras, and its arrival in optimal conditions both to the media platform and to more than 400 televisions located in different areas of the stadium.

This project, carried out entirely with Televés and Arantia equipment (technological subsidiary of the Corporation), has highlighted the leadership of Televes Corporation in the European MATV/SMATV sector and represents an important support for the quality of the brand's equipment., designed and manufactured in the company's facilities under the seal of European Technology made in Europe.

Installation details

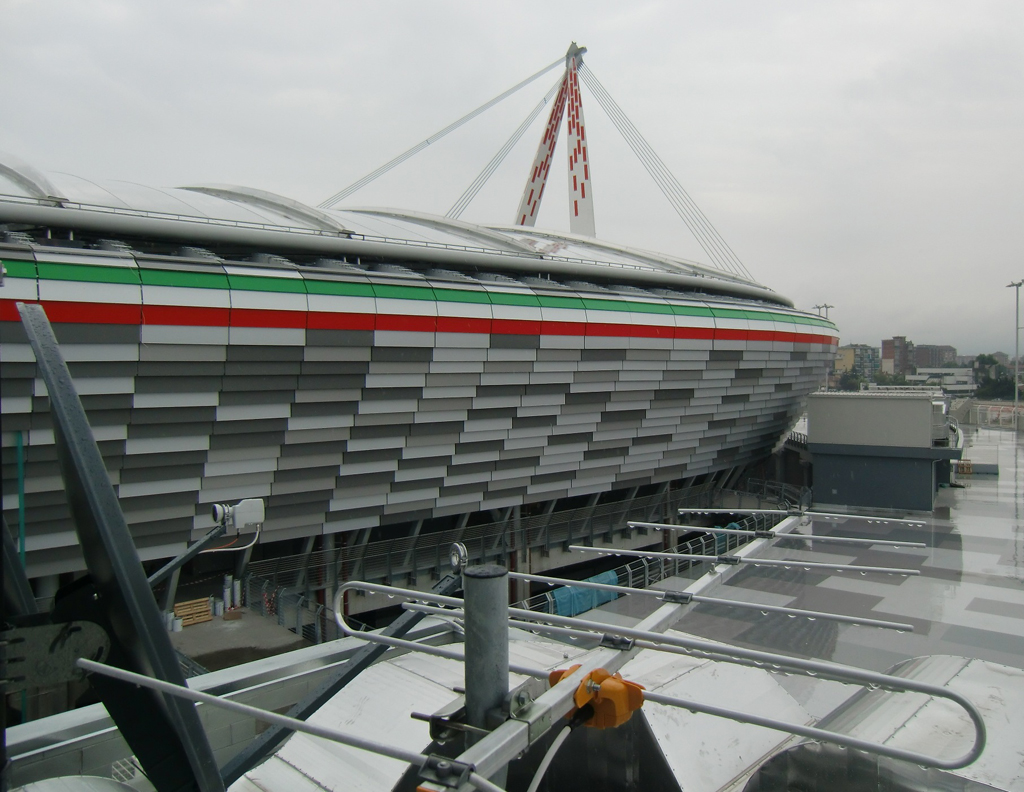

Televés equipment is present in the installation from the same reception of the terrestrial television signal, which is carried out by means of several antennas, among which a DAT HD BossTech stands out, Televés' most advanced digital antenna. The signals are mixed and sent to a single-channel fiber optic headend through an optical transmitter..

Satellite signals are also captured with Televés equipment. In this case it is two parabolas with optical LNB, each of which sends the channels towards the distribution headend.

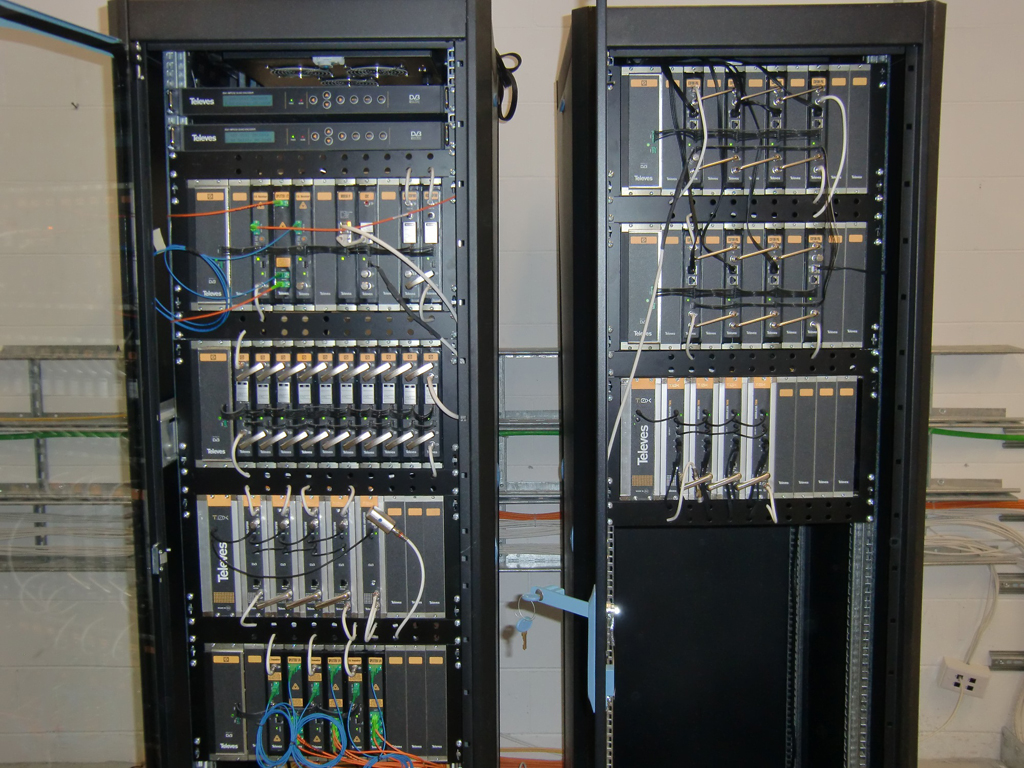

This headend is a modular device of the Televés T0X type., offering fully digital output. Its management is carried out remotely from the stadium control room. Taking into account the enormous distances to be covered with wiring, An installation with fiber optic infrastructure was chosen both at the entrance and at the exit of the header..

The signals from the cameras distributed throughout the stadium are collected and digitized with Televés modulators., thus being sent to both the main headline and the media platform..

At the header, that offers 18 digital terrestrial television channels (TDT), signals are elaborated and equalized to create a completely digital flow that is distributed throughout the stadium, passing through seven coaxial reconversion and amplification substations. Thus, Users can choose the channel they want in each of the 400 televisions that the venue has.

Signal distribution

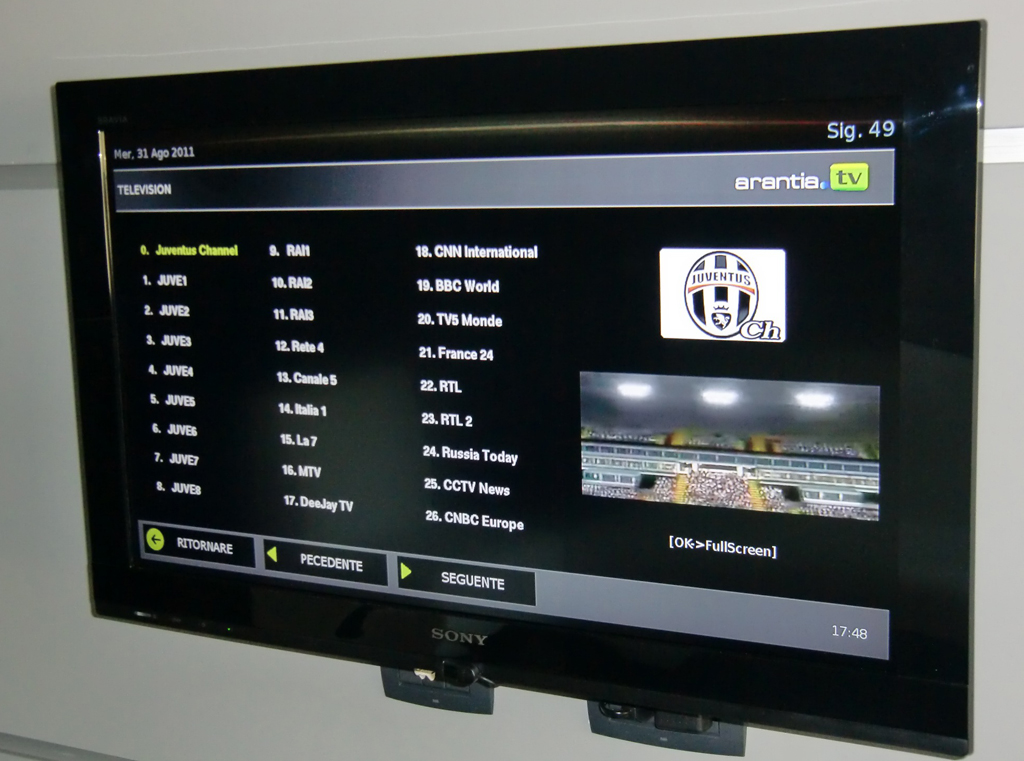

The digital stream leaving the headend is transmitted via fiber optics, even to the star center of the stadium's data network, where different equipment is installed, including an IPTV headend and the middleware server for the provision of interactive and Video on Demand services.. Through these devices, the IP signal is distributed to the honorary entrance of the stadium., to the locker rooms, al Partner’s Club, to the suites and private boxes, for a total of 73 televisions where the reception of the IP signal is carried out through the STB2010 HD, also Televés design and manufacturing. The number of televisions will increase in the near future, when others are added 40 more private boxes.

This data infrastructure is implemented through Arantia equipment, technological subsidiary of Televes Corporation specialized in the development and implementation of end-to-end IPTV platforms and Interactive Digital Television solutions for operators and service providers.
