Panasonic video surveillance cameras help protect Arisa facilities

Arisa, a company dedicated exclusively to the design and manufacture of mechanical presses and their accessories, has opted for a solution consisting of IP cameras and NVRs from Panasonic CCVE to control and protect its facilities, adjusting to the particularities of the different locations of its Logroño factory (Rioja).

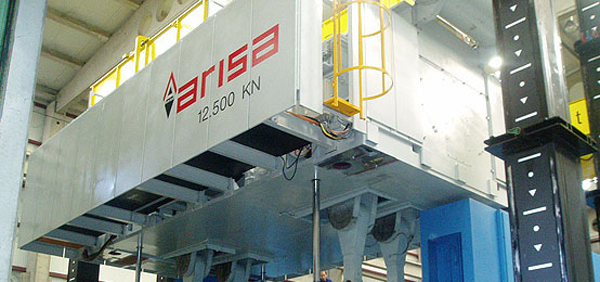

Arisa, Riojan firm that designs, works, Starts and services all types of mechanical presses, with a range that goes from 160 until 3000 tons, has facilities in the city of Logroño that occupy 16.000 m2, of which the mechanization section occupies 3.000 m2 and raw material warehouses, Incorporable elements and sets occupy a total of 5.000 m2, and other assembly halls 5.000 m2.

One of the needs that the Riojan company found in its facilities was to control the perimeter of the main buildings to avoid theft and vandalism.. In addition to this, They needed to control production areas and offices. The warehouses are very large and have a high ceiling, so the solution sought required high-resolution cameras resistant to the temperatures and dust of the area.. They also needed to control the passage areas of both the storage areas and the offices and administration area..

Solution

With the collaboration of Osaba Group, comprehensive telecommunications solutions provider, computing, image and sound and security, They opted for a solution based on 25 IP cameras among the interior ones, motorized exteriors and domes Panasonic. These WV-SW395E domes are placed in the central area of ​​the production halls to control the production pits that surround the 6 meters and 12 meters high. In these pits, presses and machinery are mounted that change altitude., so fixed cameras did not cover this need.

They were placed 4 WV-SP306 fixed cameras to monitor the perimeter. These cameras are megapixel, They have MOS sensor and ICR function, what it does in very low light, optimal image quality without the need to add infrared spotlights. These cameras are protected with housings with a fan and heater.. A total of 14 WV-SP305E fixed cameras, also with casings, They were placed inside the warehouses to control the passage and transit areas to control the movement of personnel and machinery throughout the facilities.. Finally, 5 WV-SF335E and WV-SF336E mini domes have been located in the office and office area, also to control the transit of workers in this area.

The viewing and recording of these cameras have been centralized in 2 recorders 16 IP channels each, with hard drive 2 Teras each. This recorder is the WJ-NV200, and is characterized by ease of connection and configuration.

Benefits

With this solution, the facilities are provided with a surveillance system with cameras of different profiles to adjust to the specific needs of each area.. The perimeter is controlled to deter theft and unwanted intrusions. The need to control the different production pits that exist in the warehouses is covered, with the problem they had that their height varied depending on the assembly process. The passage and transit areas of warehouses and offices are controlled to protect the interior of the facilities with discreet and good quality cameras.. Adedmás, a distributed visualization system 2 screens easy to manage locally, allows remote access to monitor the status of the facilities from any point in order to provide a quick response to a specific event.

Pilar Fuentes, Arisa's business assistant, has manifested: “The surveillance system designed specifically for Arisa covers the needs and expectations of the project carried out by Grupo Osaba at a competitive price.. The complete system has been installed with great speed and precision by technicians with excellent treatment and great professionalism.. The effective commissioning of the equipment has meant the achievement of the required objectives, allowing monitoring of both the exterior perimeter of the company and its interior spaces, receiving high quality images. Besides, people in charge of monitoring the company can see the live camera transmissions, in real time and from remote devices. On the other hand, Surveillance images can be recorded and stored so, that in case of need, can be reviewed. All of this provides a feeling of security that increases the value of the company as a whole for our shareholders., employees and customers.”
