Crown Audio, Harman group company, has expanded its amplifier management solutions with the new XLI series of power amplifiers, made up of four powerful models, robust and reliable suitable for musicians, DJs and artists, as well as places of worship, nightclubs or pubs.

The North American power amplifier manufacturer Crown Audio has expanded its product catalog in order to offer the market the best options in each of its series. With special focus on the professional initiation market, in which a high level of solvency and reliability is required, with a minimum investment level, Crown presents the new XLI series.

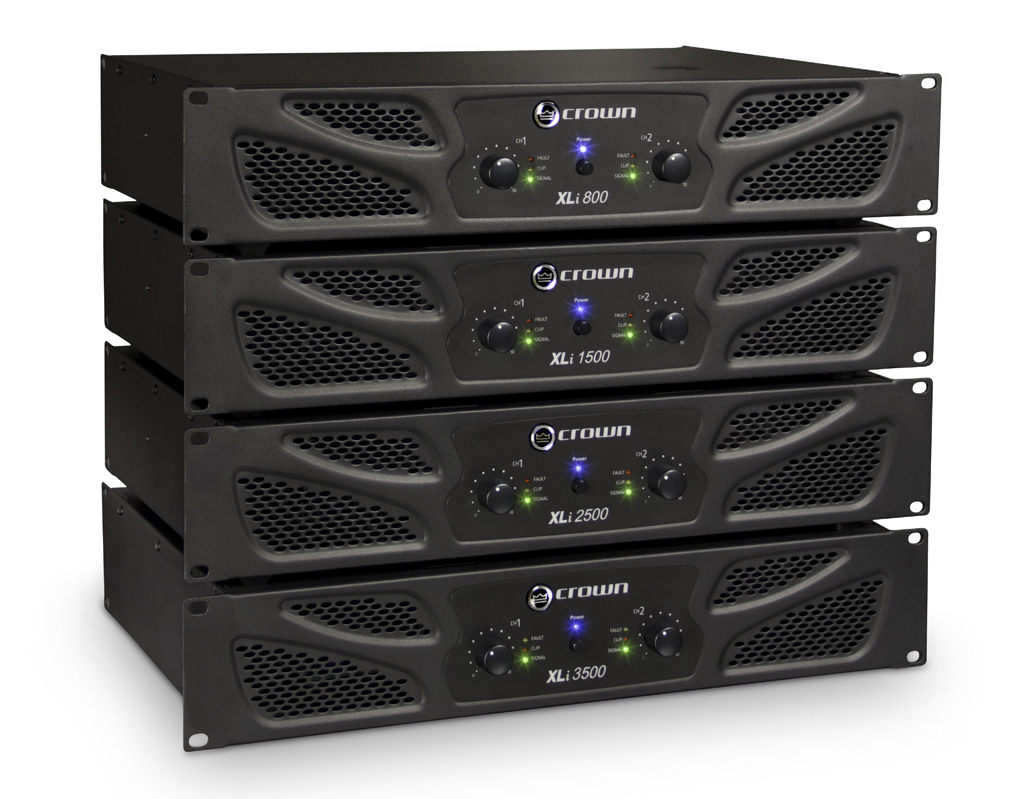

Crown's new XLI series, distributed in Spain by Earpro, is integrated by 4 models: XLI800, XLI1500, XLI 2500 y XLI3500, all of them identical in architecture and features, differentiating from each other only by the output power they offer.

Main features:

• Selectable input sensitivity – 0.775V y 1.4V

• Operation, stereo, parallel or mono.

• Electronically balanced inputs with RCA and XLR connection

• Control de nivel independiente por canal e interruptor de encendido en la parte frontal.

• Short circuit protection, no load, ignition peaks / apagado e interferencia de radio-frecuencia.

• Indicador LED de encendido y seis LEDs de presencia de señal, saturation and decay for each channel.

XLI stages are ideal for sound applications in speech spaces, live music, pubs or any other medium or small installation application.

Technical data:

Sensitivity (the maximum power 8 ohms)

0,775In Fr 1,4 V

Frequency response (a 1 watio)

40Hz – 20kHz, +0dB/-3 dB

Relationship Signal/Noise (a 20Hz – 20kHz, A-weighted)

>100 dB

Total Harmonic Distortion (THD)

<0.5%, 20Hz – 20kHz

Intermodulation distortion (IMD)

<0.35%

Factor Damping (a 8 ohms, 10Hz – 400Hz)

>200

Crosstalk (below rated power)

a 1kHz: -76 dB

a 20kHz: -59 dB

Load impedance:

4 y 8 ohms in stereo mode, 8 ohms en bridge-mono

Input signal connection

RCA y XLR

Output signal connection

Borna y Speakon

Ventilation:

Forced (from front to back)

Size:

Rack format 19 standard inches (2 units)

Weight:

XLI 800: 11,4kg

XLI 1500: 12,7kg

XLI 2500: 13.5kg

XLI 3500: 19.5kg

Power table

Power

XLI800

XLI1500

XLI2500

XLI3500

1 kHz con 0.5% THD

Stereo, 4 ohms (by ch.)

300 W

450 W

750 W

1350 W

Stereo, 8 ohms (by ch.)

200 W

330 W

500 W

1000 W

Bridge-Mono, 8 ohms

600 W

900 W

1500 W

2700 W
