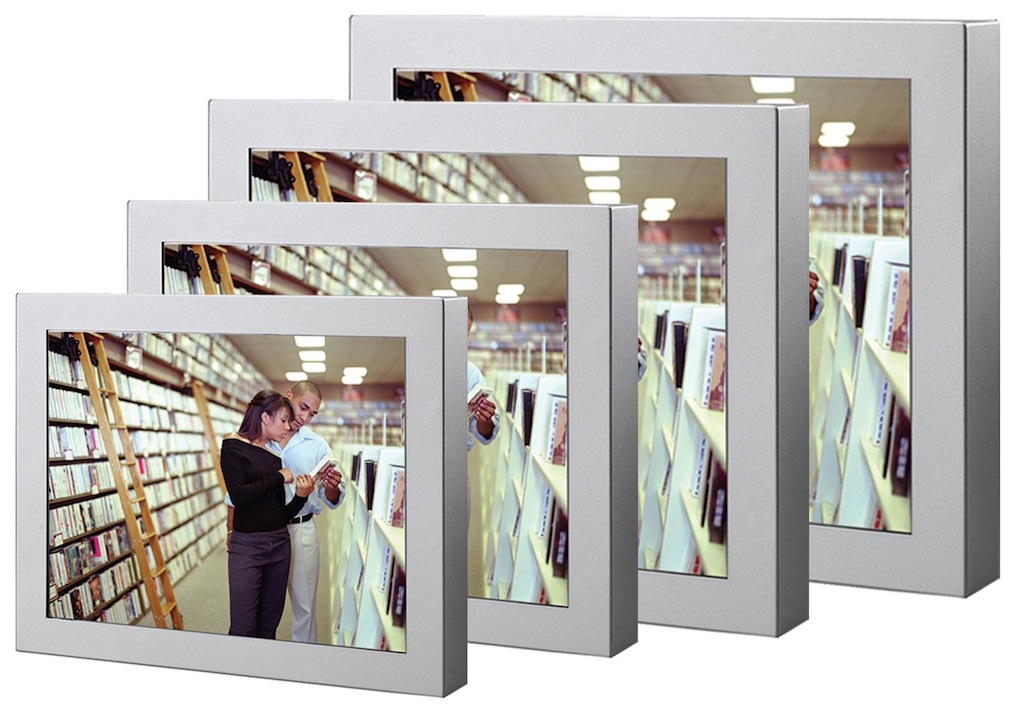

In 15-, 17- and 19-inch sizes, dealer Macroservice has available the K790 series of Metal Panel PC, touchscreen to create information points in multiple environments.

K790 Macroservice

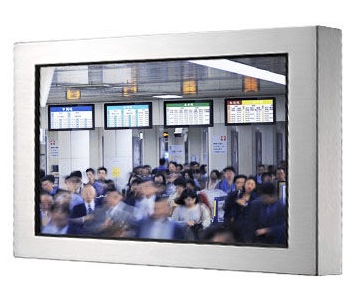

Macroservice It has available for marketing Metal Panel PC K790 series, composed of units that include PC, TFT monitor, touch screen and two speakers of 3W in a frame of polished stainless steel with a Fund of only 60 mm thick.

This new concept of Metal Panel PC touch, in combination with TK-100 V2 or Macroservice A-500T stands, allows you to create information points in very diverse environments, either as a POS or to present products in retail, even for control of industrial processes or home automation.

K790 MacroserviceThe K790 series consists of K795 models, with '' touch screen 15 with XGA resolution, brightness of 300 cd/m² and Elo AccuTouch resistive technology; the K797 team, with 17 '' screen with resolution SXGA, brightness 250 cd/m² and Elo AccuTouch touch technology, and K799 unit, 19 "resistive technology eTurbo Touch touch screen, SXGA resolution and brightness of 350 cd/m².

All teams have a fanless design and integrated processor Intel CedarView D2550 1.86 GHz, 2 W NM10 chipset and graphic chipset GMA 3650 (DX9), also from this supplier, with 2 Gb memory (expandable to 4 Gb with two DDR III SO-DIMM slots) to provide greater performance and low consumption.

K790 MacroserviceConnectivity is carried out by four USB 2.0 ports, four RS232 serial ports (RJ45/DB9 connector), two entrances LAN (10/100/1000 Mbps), a microphone input, audio output, an output VGA analog input PS/2.

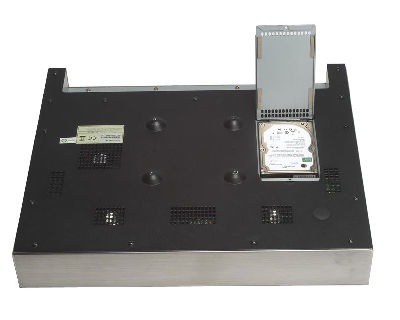

K790 series teams have DC 8 to 36 V (with included power supply), SATA hard disk 2.5 '' and 320 GB, slot internal card Mini PCIe (optional WiFi connection), further anchors VESA 100 × 100 mm, as well as protection Nema 4 / IP65 to withstand dust and splashing.
