Axiomtek OPS883-H: 4K OPS digital signage player for multi-screen viewing

Intended for digital signage applications and multi-screen presentations, Axiomtek's OPS883-H player is ideal for use in airports, hospitality environments, retail, education and art centers.

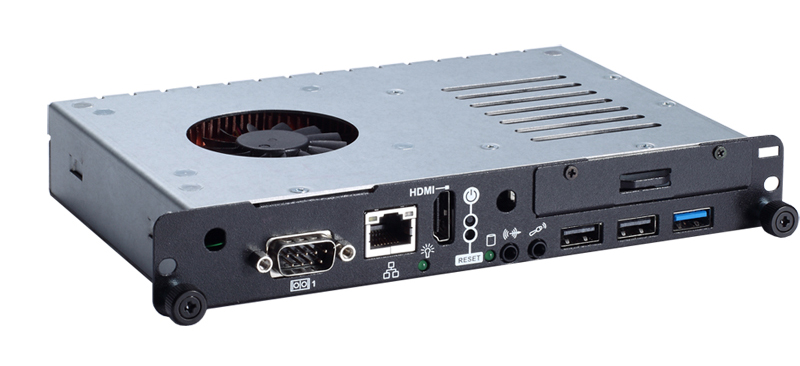

Axiomtek OPS883-H

The OPS883-H is the latest 4K digital signage player with OPS compatibility from Axioms. A device designed with the fourth generation Intel Core i7/i5/i3 processor (Haswell) and the Intel H81 chipset, Ideal for multi-screen display applications at airport information points, shopping centers, restaurants, retail, hospitals, the educational environment and art centers such as museums.

Axiomtek OPS883-H“The Axiomtek OPS883-H is a media player that offers excellent graphics performance, 4K content playback and multi-screen presentations. A small team (200x30x119 mm) Designed to be connected to an OPS compatible display, “standard that simplifies installation and maintenance in digital signage applications.”, explains Vincent Chi, product manager of Product & Marketing Division de Axiomtek.

Axiomtek OPS883-HIt has a DDR3 SO-DIMM of 204 pins with a maximum memory of up to 8 GB. Offers ultra high definition 4K content (UHD) via an HDMI port.

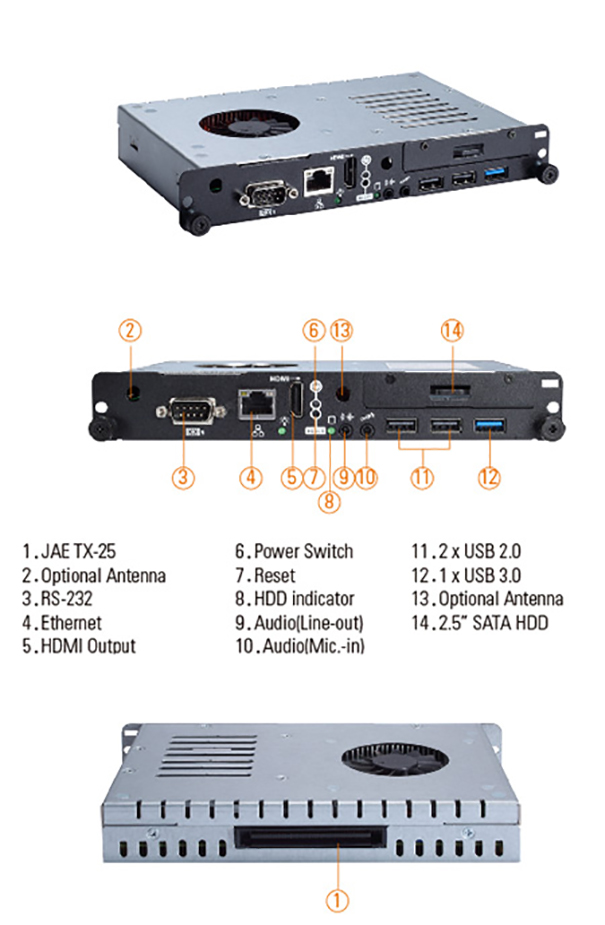

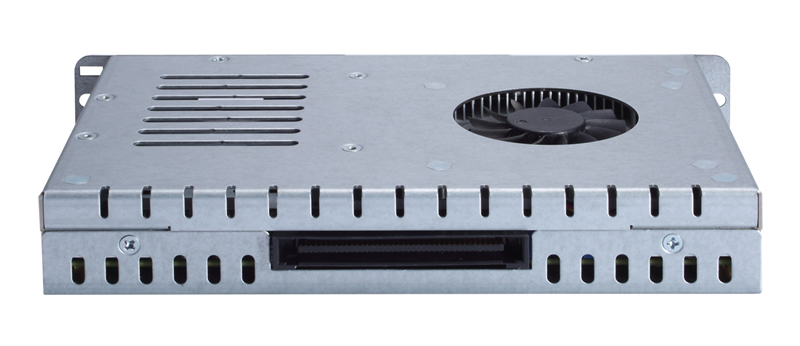

This device connects to OPS screens, via a standard JAE TX-25 connector, and includes DisplayPort signals, UART, audio, USB 3.0 y USB 2.0. To meet the different needs of the application, This signaling unit offers a wide variety of front panel I/O ports including a USB 3.0, of USB 2.0, a HOW, audio input/output and a Gigabit Ethernet port.

This OPS system has an internal PCI Express Mini Card slot for WiFi connections or 3G/LTE modules and has easy access to the SATA HDD storage device. 2,5 inches. Besides, es compatible con TPM 1.2, feature that allows you to secure the system.

A watchdog timer has also been incorporated (Watchdog Timer) to restart the system after a system error or crash. This high-performance quad-core/dual-core Intel OPS system is fully compatible with Windows operating system 7 y 8.1.

Technical specifications:

  • OPS compatible signage player (Open Pluggable Specification).
  • 43rd generation Intel Core i7/i5/i3 (Haswell) con chipset Intel H81.
  • DDR3 memory system 1600 SO-DIMM available 204 pins that support up to 8 GB.
  • Supports dual screen (HDMI with 4K resolution).
  • One USB port 3.0, of USB 2.0, a COM and a Gigabit Ethernet.
  • SATA HDD storage system 2,5 inches.
  • Internal PCI Express Mini Card slot.
  • Works over a wide range of temperatures 0 °C a + 45 °C.
By, 9 Jan, 2015, Section: Digital signage, Display, Signal distribution
