D.A.S. Audio helps provide sound at the Chiapas Auditorium

The sound system of the Chiapas Auditorium has been carried out with D.A.S technology. Audio including Convert multifunction powered array systems and Artec Series powered equipment 500. The installation is completed with two DSP-2060A digital signal processors.

DAS Audio in Chiapas Belisario Dominguez Auditorium

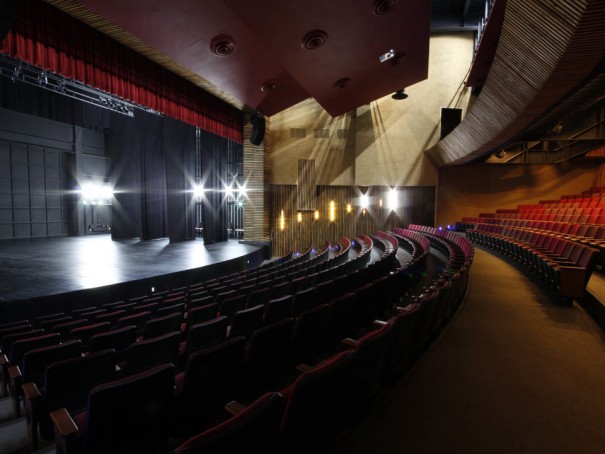

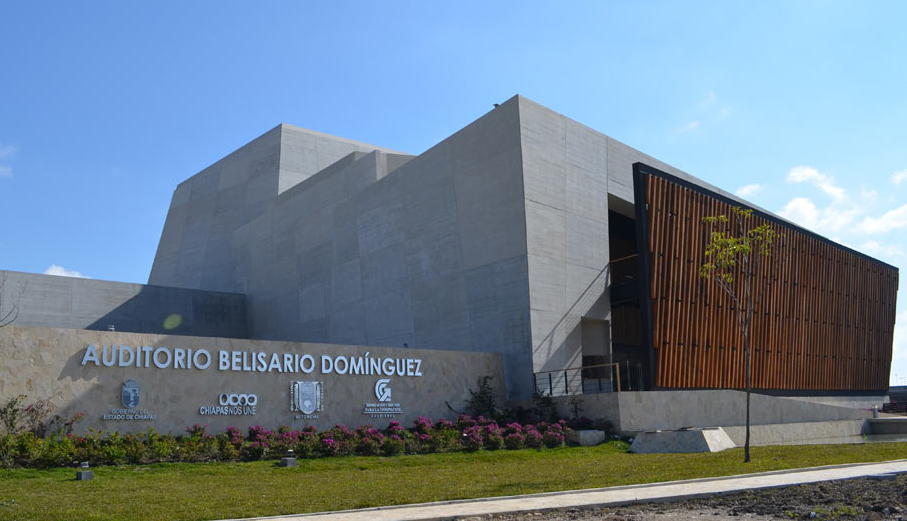

The auditorium Dr.. Belisario Domínguez from Chiapas has positioned himself as one of Mexico's leaders, since it is located in a completely sustainable building that has photovoltaic panels for energy supply. A space that has a capacity close to 2.000 spectators and is attached to the Autonomous University of Chiapas.

This modern facility has had a professional sound system of D.A.S. Audio, installed by the company Chemtrol México, in charge of the supply and installation of the venue's stage equipment, which recommended to auditorium managers the use of Convert multifunction self-powered array systems due to their versatility and sound quality.

DAS Audio in Chiapas Belisario Dominguez Auditorium

The main system arranged in the Auditorium Dr. Belisario Domínguez is made up of 8 D.A.S multifunction self-powered array systems. Convert 12A, to which two D.A.S self-powered subwoofer systems have been added. Convert 18A.

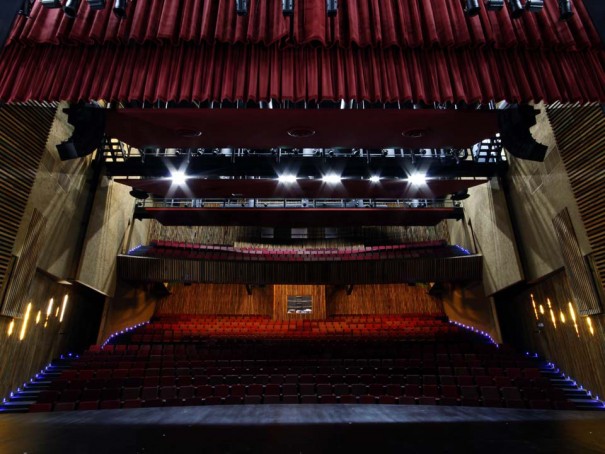

The solution has been set to L and R stereo mode. Each channel is made up of a Convert 18A subwoofer., on those that have been suspended 4 sistemas Convert 12A. These linear formations have been angled to provide uniform coverage throughout the audience area.

As support for the first rows of the audience, D.A.S Artec 506A autoamplified systems have been installed. Audio. Additionally, have also been placed 4 D.A.S self-powered systems. Artec 508A, that have been arranged 'under a balcony', to reinforce the most distant areas, located under the amphitheater and avoid acoustic shadows. The installation is completed with two D.A.S digital signal processors. DSP-2060A, who are in charge of the management and control tasks of the entire system.

DAS Audio in Chiapas Belisario Dominguez Auditorium

By, 25 Aug, 2015, Section: Audio, Case studies, Control
