Valencia CF creates an audiovisual system at Mestalla to improve the fan experience

The Spanish sports club has modernized the audiovisual production system of the Mestalla stadium to offer fans a better information and entertainment experience before and during matches through five giant LED screens on the field..

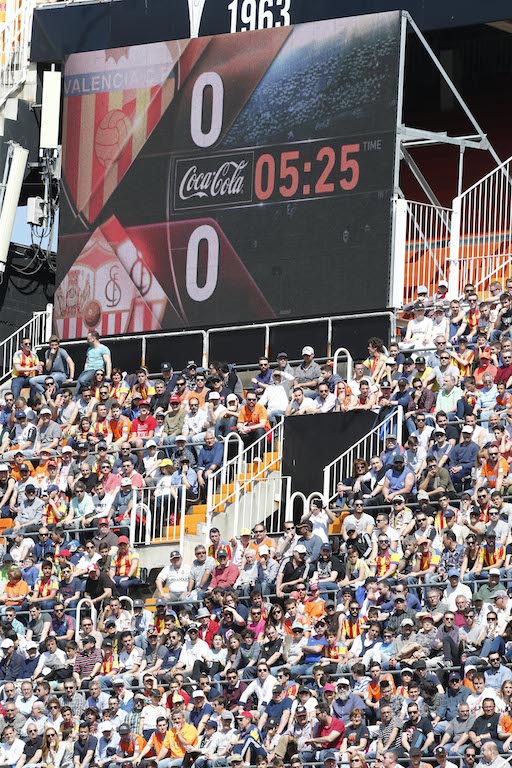

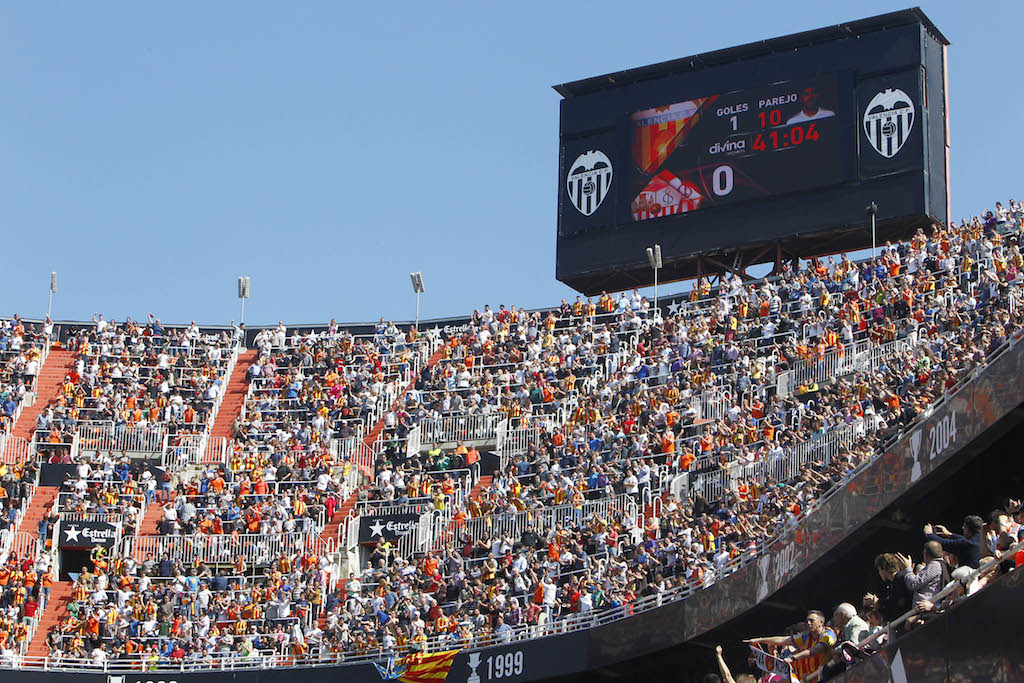

The Mestalla stadium, property of the Valencia Football Club, has modernized its audiovisual production system with devices from the manufacturer Blackmagic Design in order to provide fans with the best information during matches, animation and show on the five Led video scoreboards (one of them from 50 m2 and the rest of 40 m2) located in the stands and stands with a synchronized service throughout the venue.

Through these high definition video markers, Fans can see real-time statistical information of the best plays in each match, live images, 3D animations, post-produced video and digital advertising from sponsors.

This Spanish first division team was looking for an adaptable platform that would allow it to transmit different signals to these five giant screens and superimpose graphic elements on live images.. Once the different options have been evaluated, IDCromvideo, development specialist, engineering and facilities, designed a flexible and efficient system around Blackmagic products.

As Julio Tárrega explains, in charge of broadcasting AV content in the stadium, “Before we only had a scoreboard with a graphics signal generated from a computer, via a DVI connection, and another live SDI signal supplied by the broadcaster, whose switching was done through a mixer. We now have four live signals, three cameras, an additional signal provided by the station, two playback systems and two LiveCG Football character generators. All these contents are directed to the five scoreboards of the stadium”.

Although each Led video scoreboard uses an ATEM mixer 1 M/E Production Studio, Another of the stadium's needs was to have an operator who would supervise all signals to optimize switching and synchronize content when necessary..

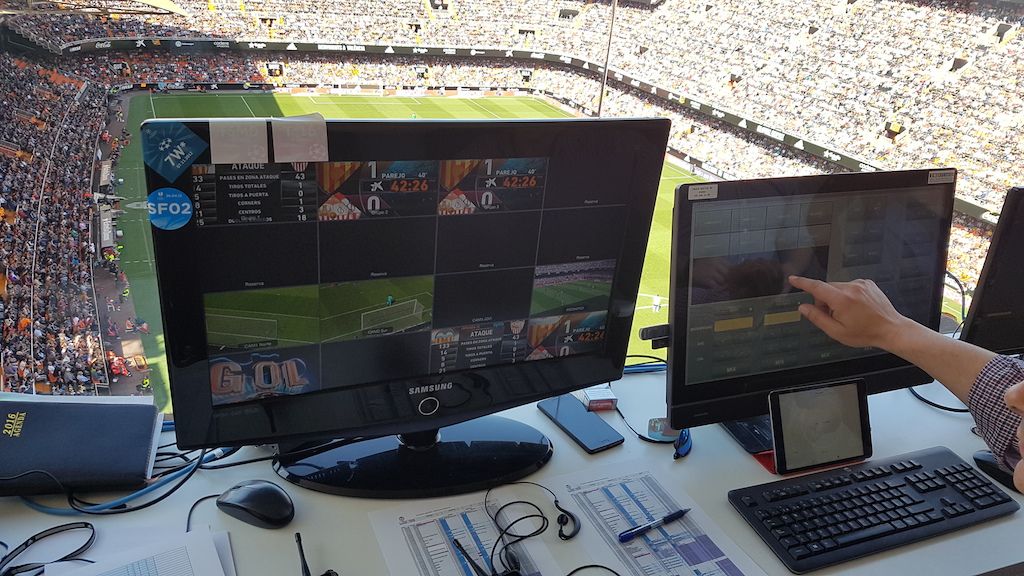

“Thanks to the development tools offered by Blackmagic, IDChromvideo created an application for touch screen devices that allows the operator to select the signal they want to transmit through the main output of the mixer or overlay it on a background image., Tárrega points out.

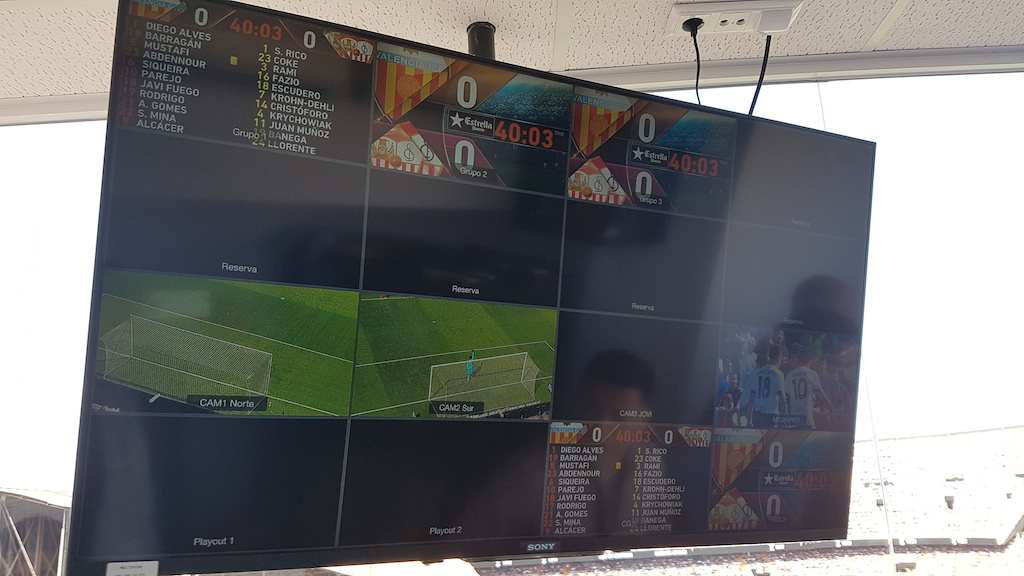

Added to this was the ability to view and capture all sources sent to bookmarks., for which a Blackmagic MultiView was installed 16 y, additionally, a second MultiView and an H264 recorder are used to master all content.

"Our club has always been committed to providing viewers with dynamic audiovisual content that improves their experience as fans of a soccer match," says this official.. The possibility of embedding graphic elements on a live video signal was essential to achieve our objective, and that is why we designed a production system based on Blackmagic ATEM mixers”.
