Yamaha EMX5 y EMX7: Integrated mixing consoles with power amplifiers

These two models offer 630 y 710 W, respectively, output for each channel; Overload protection function for safe and flexible adaptation to horizontal or vertical configurations in temporary installations.

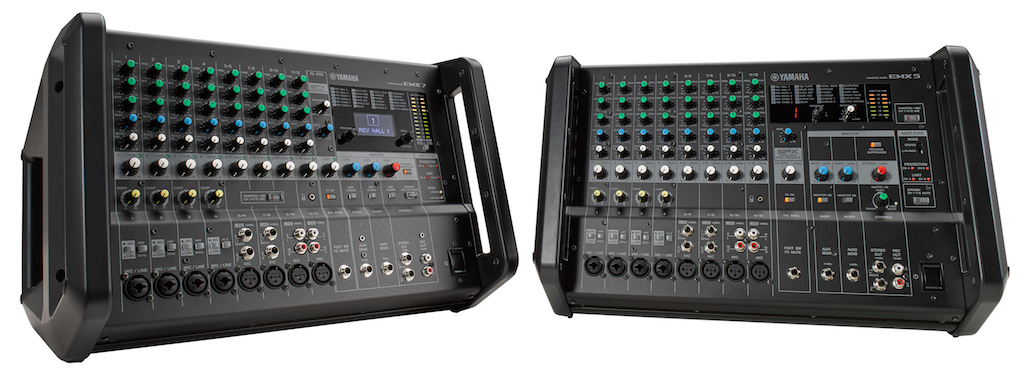

The new EMX5 and EMX7 mixing consoles Yamaha They have high-efficiency power amplifiers (of 630 y 710 Output W per channel, respectively), in a robust design, with impact-resistant metal chassis and integrated handles for easy transport and maximum durability.

Both models feature four monaural input channels and an equal number of monaural/stereo input channels., so it is possible to connect up to eight microphones and line-level input sources; 4th channel can be used with Hi-Z inputs.

Connections include two auxiliary send outputs for a monitoring system or external effects devices; TRS stereo headphone jacks; of speakers (TS headphone jacks or speakON connectors), and unbalanced RCA pin recording output jacks.

The EMX5 console has single-knob master equalization (1-Knob Master EQ) de Yamaha, to apply optimized voice settings, music and bass amplification. For your part, EMX7 carries a flexible type graphic equalizer (Flex9GEQ) that allows you to select up to nine bands from a total of 31 for fine adjustment of ±15 dB.

Both models include Yamaha's patented 1-Knob Comp single-knob compressor and a comprehensive DSP section, which integrates twenty-four of this firm's SPX effects. Besides, The EMX7 console has a speaker processor with predefined settings to adapt to different passive speaker models from the manufacturer and guarantee optimal performance.

These tables also have a feedback suppressor, which uses Yamaha's exclusive band stop filter technology to instantly suppress annoying feedback with the push of a button, as well as a high-efficiency universal internal power supply for application anywhere in the world.
