The Pago de Carraovejas winery restaurant renews its sound system

For the new audio infrastructure, Ovo8P speakers and a PR4000R tuner from Apart have been used., as well as an Allen GR4 pre/mixer & Heath and Audio-Technica microphones.

The farm of Carraovejas payment, located three kilometers from Peñafiel (Valladolid), offers modern facilities and a renewed proposal for visitors, including spaces capable of satisfying the most demanding expectations of wine tourism fans.

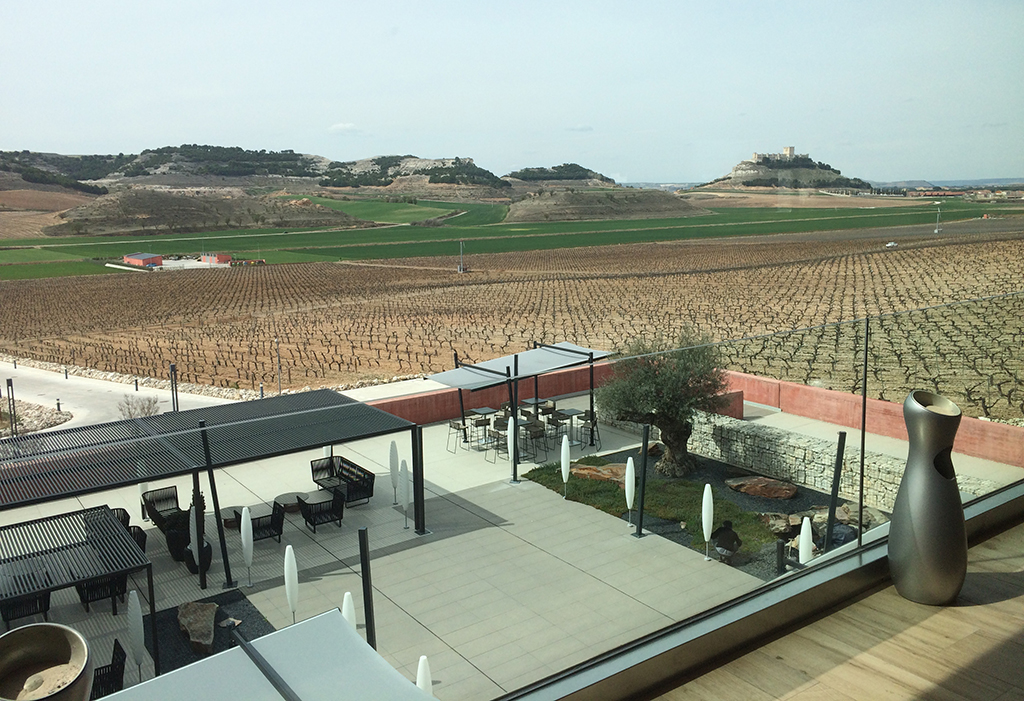

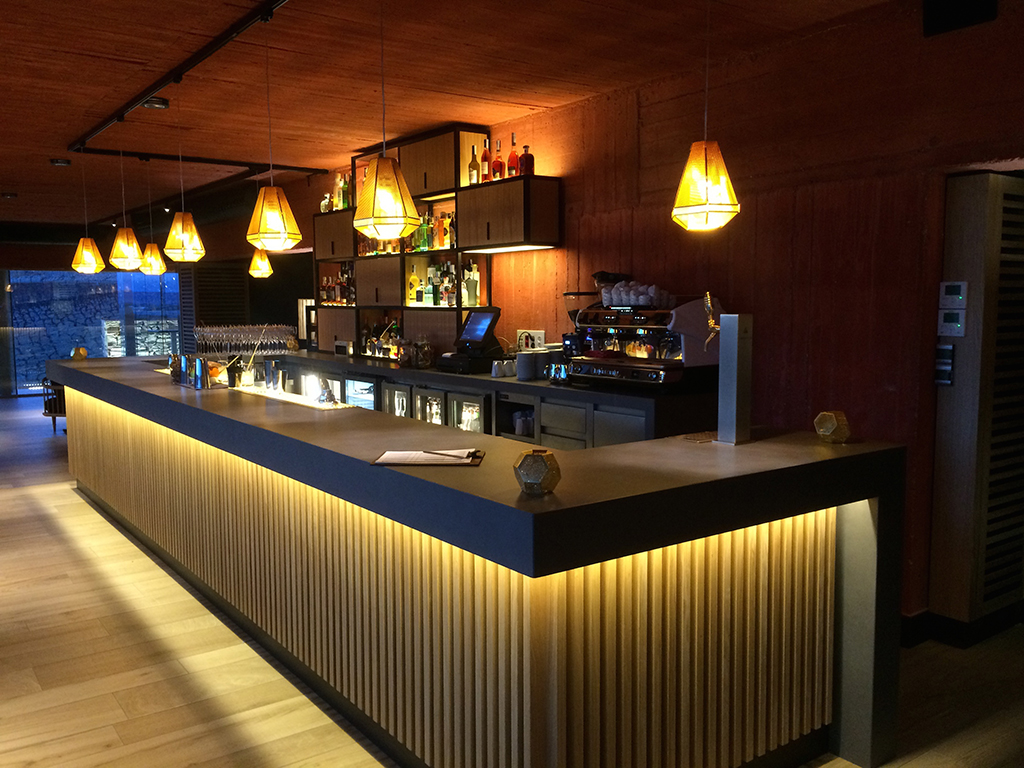

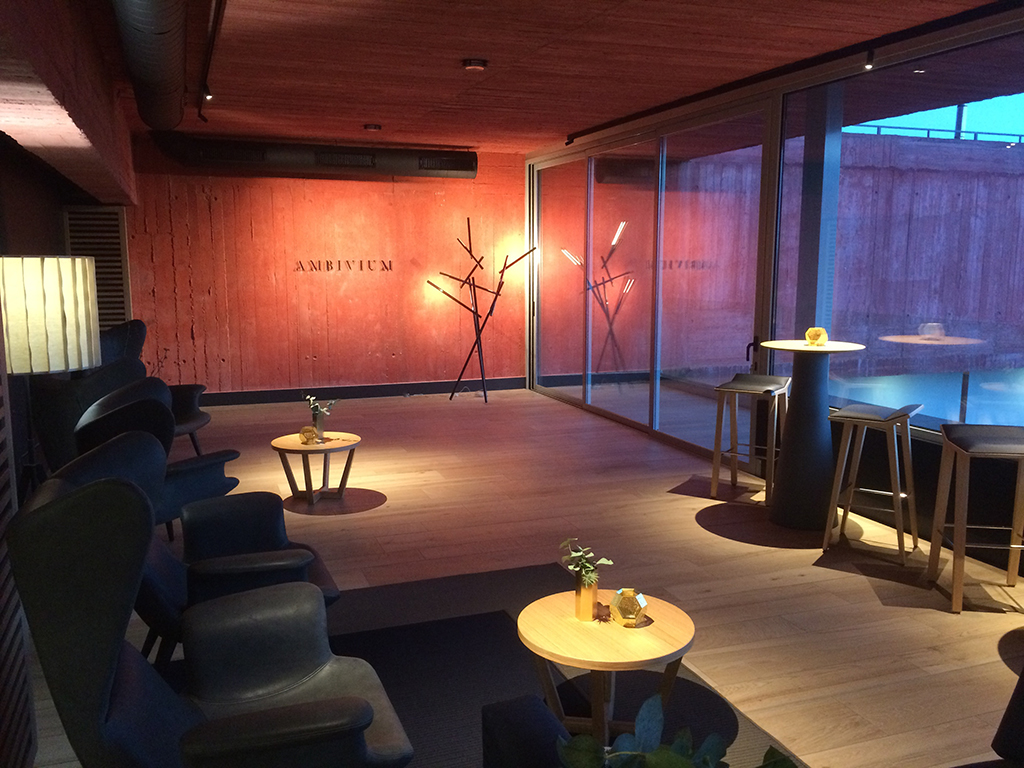

The new restaurant area consists of two areas: a large hall with an area of ​​more than 500 square meters, totally diaphanous, and another smaller space, used as chill out, with a surface of about 90 square meters. Both spaces offer access to a large terrace/viewpoint.

This facility has just updated its sound system, project that the company has carried out Hey man, y, for it, Ovo8P speakers and a PR4000R tuner have been used. Apart, as well as a GR4 preamp/mixer Allen & Heath and microphone Audio-Technica.

To provide specific control for each of these two zones, An Allen GR4 preamp/mixer has been used & Heath, which acts as the nerve center of the system. This sophisticated system allows for rack mounting (1U) and provides simple but comprehensive control over two stereo zones, which can also be reinforced by incorporating optional remote control panels into the installation.

The outputs of this preamp have been connected directly to a wide array of Apart OVO8P speakers.. In total, have been used 22 OVO speakers, 18 of them located inside the main living room and another four to cover the chill out area. In the main hall, The boxes have been assembled in groups of four units, with an angle of 45 degrees, providing completely uniform salon coverage.

According to those responsible for the installation, These acoustic enclosures have been selected for their sound quality and discreet aesthetic appearance., that fits with the decoration of the venue. On the other hand, since they are self-powered enclosures, have made it possible to eliminate the need for an amplifier system, reducing the final cost and complexity of the installation.

OVO8P is an active enclosure that offers optimal quality music reproduction, crystal-clear voice reproduction and a high sound level with a power of 60 W. Given the power of this full-range bass reflex speaker, it is not necessary to have a subwoofer to enjoy perfect sound.. Incorporates an 8 woofer″ there is a tweeter of 1″ soft dome. It also has a volume control and independent controls for bass and treble..

as sources, An Apart PR4000R tuner and Audio-Technica microphones have been used, both handheld and headband, that have replaced those previously used, which caused acoustic feedback problems.

The PR4000R is an AM/FM tuner in standard rack format. 19 inches, which occupies only 1U, very simple in operation and installation. It has 4 Independent tuners each with their own adjustable output and can be controlled from the front panel, from RS232 or from the IR remote control included, or through contacts (conector Euroblock) located on the rear panel of the unit.
