Incheon Airport Updates 'Led Tower' with Analog Way Aquilon C

The so-called Media Tower, installed at the Korean airport of Incheon, se ha renovado con el sistema de presentación Analog Way Aquilon C and DPH104 image processor.

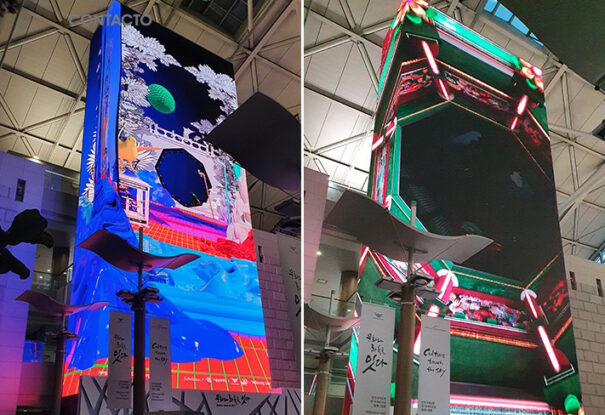

In the Incheon International Airport (South Korea), the Media Tower is the main protagonist since it was inaugurated three years ago. It is a Led block of 27x10x3.5 meters, con una resolución de 4.864×6.656 Pixels, en el que se visualizan cortometrajes y mensajes de señalización digital que buscan llamar la atención de los viajeros. Ahora se ha actualizado con las soluciones de Analog Way Aquilon C and DPH104.

Cuando se preciso una actualización tecnológica en el Media Tower para mejorar el rendimiento, se combinó el sistema de presentación multipantalla Aquilon C 4K/8K con el procesador DPH104 de Analog Way.

Originally, el integrador de sistemas y proveedor de contenido Giant Step propuso un servidor de medios pero presentó ciertos problemas de sincronización y no estuvo a la altura de lo que se requería.

Dado el enorme lienzo de píxeles, el procesador Led necesitaba 21 salidas Full HD (FHD) para cubrir la pantalla. Chris Choi, Business Development Manager at Analog Way in Korea, demonstrated how an Aquilon C along with six Analog DPH104 units could power the Media Tower without synchronization issues.

DPH104 is a high-performance latency-free 4K image processor capable of converting a 4K DisplayPort output from a LivePremier presentation system , as Aquilon C, or a Picturall Mark II media server with four independent HDMI 1080p outputs. All outputs of the DPH104 can be used with native resolution as if connected directly to the source system. Requires no software or configuration and ensures an easy and hassle-free installation experience.

For the Media Tower, sources are entered from the media server to the Aquilon C, then six DP104 units divide the inputs into 21 FHD outputs. These FHD signals are sent to the Led panels using 21 controllers for a perfectly synchronized display. Two additional DPH104 units are available as backup systems.

Installing Aquilon C and DPH104 didn't just solve the Media Tower sync issue, but, given the newly optimized video processor environment, creatives can use a PIP function with smooth transitions in the future, a capability I didn't have before.
