Leisure at the Rota Marina relies on Audio Pro

At Wilson's beach bars, Darwin and Puerto Escondido have installed a total of 22 speakers SP-3, associated with three TX-1 wireless transmitters, and three VOL-1 wireless volume controllers Audio Pro Business.

Wilson, Darwin y Puerto Escondido There are three of the beach bars located in the Puerto Deportivo de Rota that have chosen to install wireless sound systems from Audio Pro Business, brand that distributes Audio-Technica Iberia.

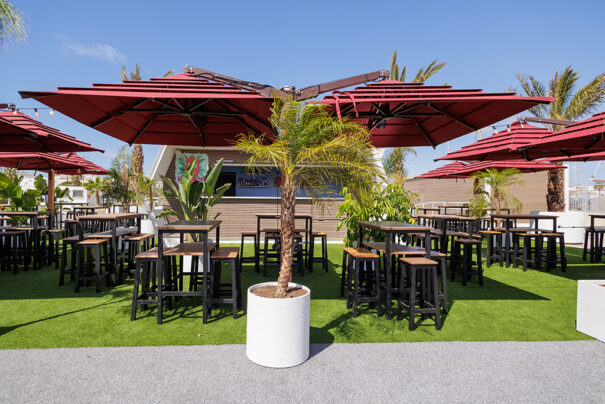

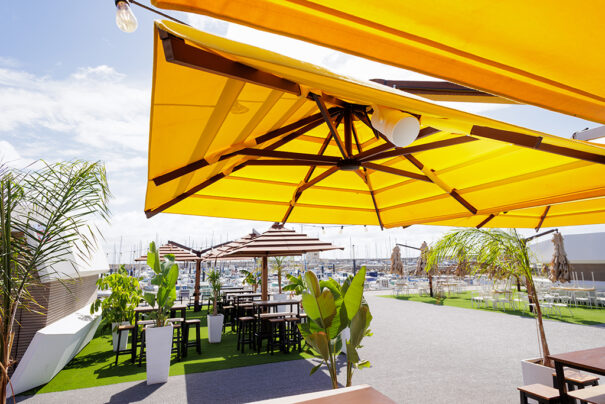

For a few months now, The Junta de Andalucía and the managing entity of the marinas are carrying out great activity to promote and expand the spectrum of potential users of the Andalusian marinas.. One of these initiatives is to expand and improve its leisure and gastronomy offer.. With this objective, A group of five beach bars have been installed in the Rota Marina, expanding the attractiveness of its facilities., attracting new audiences not necessarily linked to the moorings.

Three of these new locations, Wilson, Darwin and Puerto Escondido, belonging to the same owner, have opted for the installation of wireless sound systems from Audio Pro Business. It is planned that two other locations, opt for the installation of the same system in the future. The project was entrusted to the company Triton Livefun.

Installing an efficient sound system presented two fundamental challenges. The first of them is that, when the complex was designed, the possibility of allowing the deployment of discrete audio cabling was not taken into account, easy to install and easily modified depending on evolving needs. After evaluating different solutions, opted for a wireless sound system.

The second, derived from this decision to use wireless systems was that, since it is a marina that, besides, It is located a few meters from the Rota military base, the saturation of radio frequency emissions is very high.

Finally, A total of 22 speakers SP-3, associated with three wireless transmitters TX-1, and three wireless volume controllers VOL-1.

As the venue called Wilson is oriented towards drinks and requires a more specific musical programming and a more forceful sound, It is planned that next season its sound system will be controlled completely independently and the sound punch will be reinforced with the inclusion of subwoofers. The other two locations, eminently gastronomic offer, will be controlled jointly.

“This wireless sound system is especially efficient and cost-effective in large installations or where wiring is especially problematic.”, as is the case at hand; besides, you avoid having to install amplification systems. On the other hand, The use of wireless sound systems in this case was especially delicate, since we are in an area highly saturated with radio frequency emissions, both those from the port and those from the naval base. We were also concerned about possible phase problems, delays or dead zones caused by distances or obstacles but, planning with a little care the placement of all the speakers, “We have been totally satisfied”, Alejandro Girón declares, Triton Livefun technician who has been in charge of the installation.

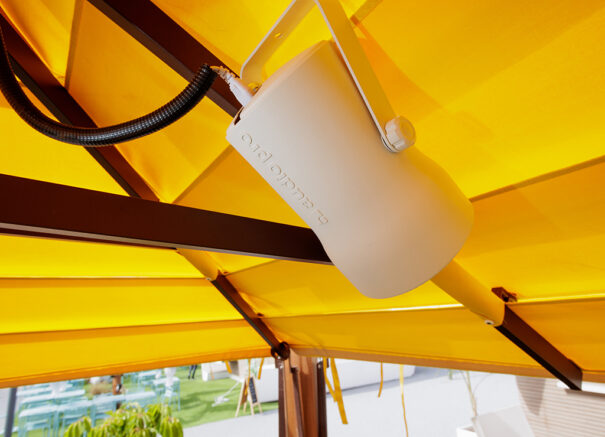

The SP-3 is a wireless speaker 2 ways, 4,5”, which can be installed both in lighting rails, as with the help of the WAB-3 ceiling or wall mount. Incorporates two amplifiers 25 W (digital class D), one 4.5” woofer and one 0.75” soft dome tweeter. Offers a frequency response of 60 a 22.000 Hz. Its high quality transducers, combined with its DSP-controlled digital amplifiers and acoustic design, provide quality sound. Besides, In standby mode it only consumes 1,27 W.

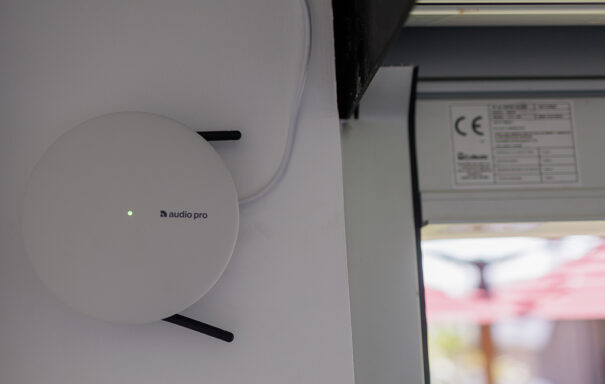

The TX-1 wireless transmitter uses the RF frequency of 1,9 GHz. Can be connected to any source you want: any streaming device, smartphone, iPad, stereo equipment, network player, or even a TV set. The transmitter requires no software or installation process, since its operation is plug and play.

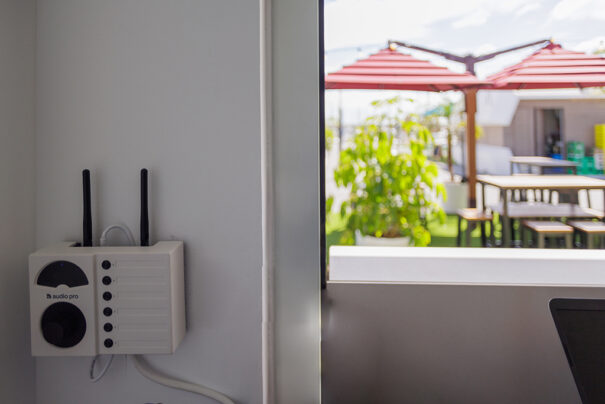

VOL-1 is a wireless volume controller that allows you to adjust the level in different zones, in addition to the general volume. Works in the RF band 1,9 GHz and offers a range, depending on conditions, from among 20 y 100 metros. It is available in VOL-1 Multi version to control 6 TX-1 transmitters for multiple zones.
