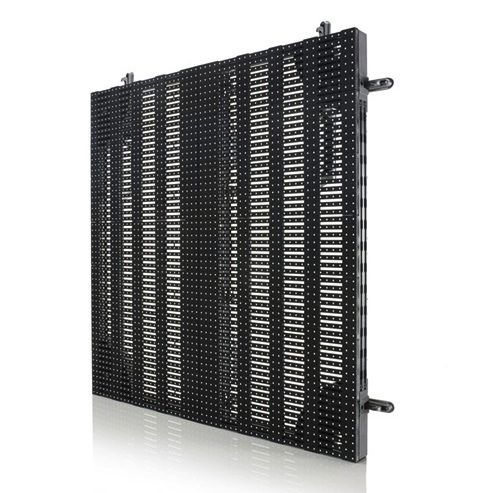

V14M: Barco LiveDots transparent Led screen with 14mm pixel pitch

LiveDots, brand dedicated to Led technology from the Belgian company Barco, Your new V14M transparent Led screen is available, which offers a pixel pitch of 14mm, con 4.300 brightness nits.

The new V14M led screen from Barco LiveDots, offers a pixel pitch of 14mm, con 4.300 nits of brightness and contrast 6,000:1.

Specially designed for the rental and events market, both indoors and outdoors, V14M is a lightweight Led screen to offer easy and safe installation thanks to its special magnetic lock.

Available for commercial distribution, V14M allows installers to build large dynamic background video panels on stages, as well as side screens on beams thanks to their low weight.

Carl Rijsbrack, LiveDots Boat CMO, points out that “we have expanded our V series of Led screens with V14M, which is the sixth member of it, with which rental companies can create large video backdrops indoors or outdoors, either in straight or curved configuration, on the roof,…because it offers many possibilities.”

One of the most striking features of the V14M is its V-lockTM magnetic lock., which significantly reduces installation time and allows a single technician to safely and flexibly create an 800 mosaic×800.

Besides, The mechanics of this screen are compatible with the Barco LiveDots C series, so that the investment of the rental companies that had this model is protected and they use it to mount the V14M screen.

Outdoor use

In addition to being indoors, V14M can be installed outdoors since it has SMD technology., plus IP65 rating to withstand harsh atmospheric conditions.

The screen has passed an intense testing program, developed in-house by LiveDots, which not only evaluates the effect of water and dust (the basis for IP classification) on the Led screen, but the impact of UV rays, variable temperatures and vibrations to ensure viewing and resistance.

Like the other Led models of the V series, The V14M screen integrates the DV-100 image processor, offering high-performance scaling, supports all video standards (HDMI, DisplayPort, 3G SDI), and features easy-to-use front controls.

In combination with the V series tool set (VTS), DV-100 processor allows creative configurations even remotely, with an intuitive interface for easy setup and display management, as well as advanced brightness and color temperature control options.

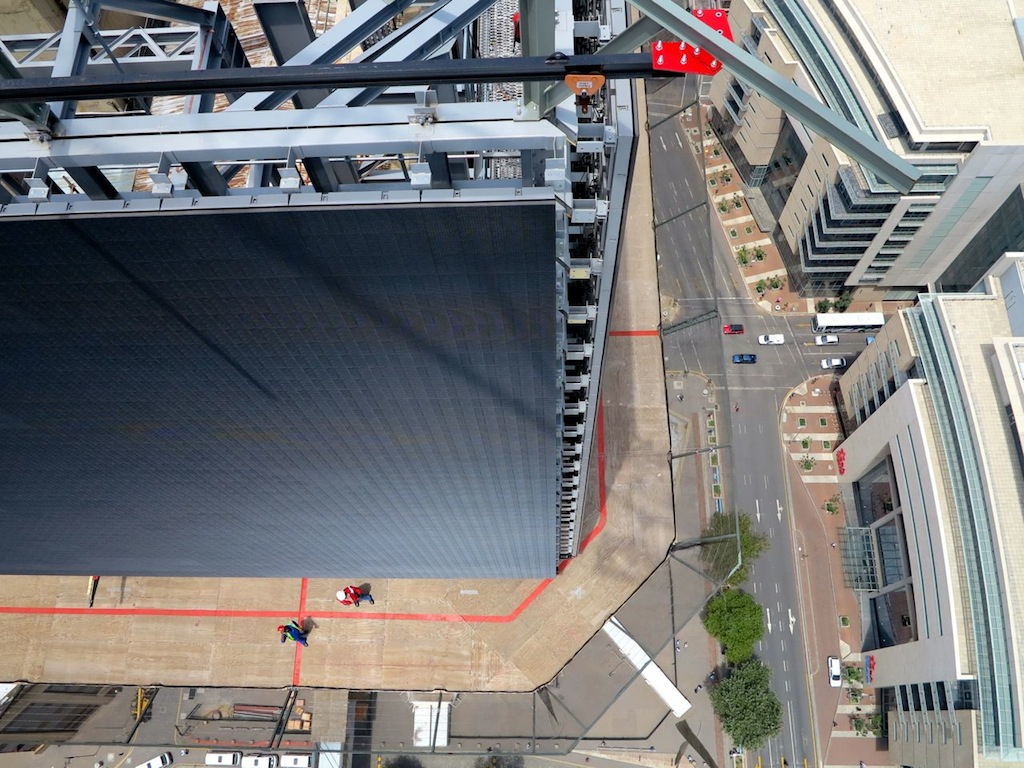

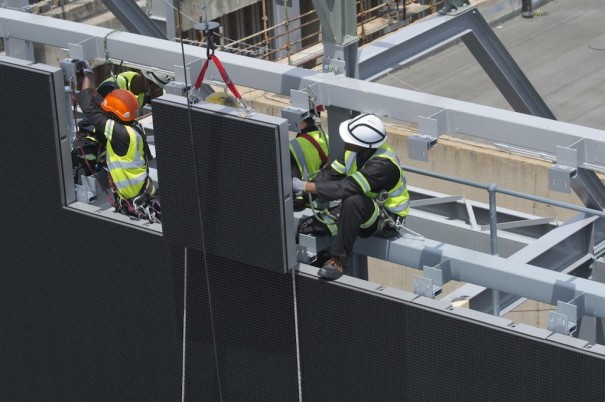

Testing the outdoor resistance of the Barco LiveDots Led screens is the project carried out on the four facades of the Absa bank tower in Johannesburg, with twenty million LEDs from the company's TF-20 system, the largest LED solution made so far, and? Digital AV Magazine analyzed.
