The AdderLink XD522 video extender prevents signal losses in the image

Adder's team, AdderLink XD522 transmits resolutions up to 2560 x 1600 WQXGA at a distance of 150 metros.

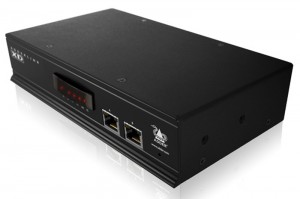

AdderLink XD522

Adder, company distributed through Macroservice, has announced the launch of the AdderLink XD522, un extensor KVM (Keyboard, Video, Mouse) that allows equipment to be separated at a distance of up to 150 meters from the user's workstation and maintain the same operability without signal loss.

The ADDERLink XD522 can transmit two video streams of 1920 x 1200 or one with higher resolution (2560 x 1600 WQXGA), audio digital (S/PDIF), analog audio, High-Speed USB 2.0 y USB 2.0 (low & full speed) over CATx cables.

AdderLink XD522This plug and play system supports up to six USB devices 2.0 (low & full speed), analog audio (line in and out), S/PDIF microphone and headphone input (optical input), through a shot 3,5 mm at the connector (mini Toslink), and a maximum baud rate (RS232) de 115K2.

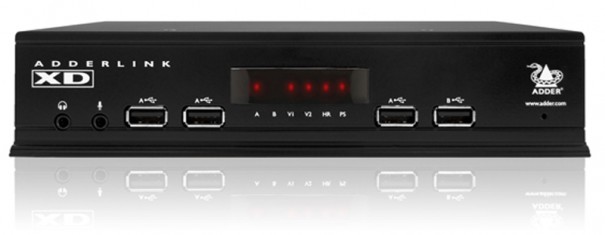

The transmission unit includes two DisplayPorts, audio input and output 3,5 mm, two USB type B and RS232 port (10p10c options), while the receiver has two DisplayPort++, audio input and output 3,5 mm, headphone output, microphone input, four USB type A and RS232 port (10p10c options).

This solution, which is compatible with practically all operating systems, It is also characterized by supporting Mac Cinema Display (2560 x 1440) and keyboard, mouse tablet y touch.

By, 23 Jul, 2013, Section: Accessories, Signal distribution
