AdderLink XD150: digital KVM video extender with a range of 150 metros

The new AdderLink XD150 video extender offers high performance for sending uncompressed video in real time to monitors located up to a distance 150 meters over CATx cable.

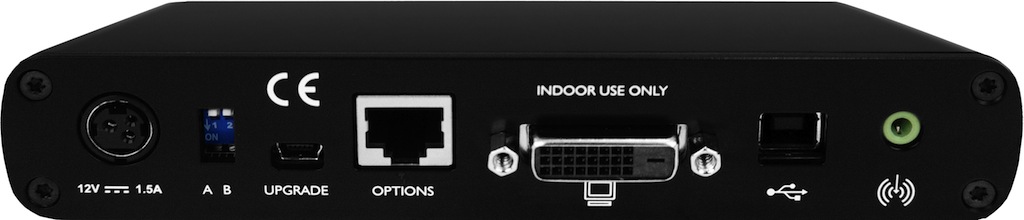

Adder AdderLink XD150 Macroservice

Adder, company commercially represented in the Spanish market by Macroservice, has developed the AdderLink XD150 KVM extender, that allows critical computing hardware to be located at a distance of up to 150 meters and maintain the 'original experience' of the workplace for a 1,920 monitor×1.080p and of 100 meters for a 1,920 display×1.200p (DVI interface).

This extension system works with uncompressed video, where each pixel or frame is sent in real time without loss. video signals, USB 2.0, Audio and RS232 travel over a single CATx cable (specifically CAT5e for 1920×1.080p and CAT7 Patch for 1920×1.200p).

Adder AdderLink XD150 Macroservice

AdderLink XD150 eliminates the need for additional drivers and software, in addition to offering intelligent Edid emulation to synchronize the video characteristics of the PC and the monitor and guarantee optimal performance. It also has a rack mounting kit for two units in a 1U space and a DC Locking power outlet. 3 pines.

The remote unit has a four-port USB hub to allow connection of multiple devices, with the support of a USB high-speed link 2.0 'transparent' for touch screens, mice and keyboards, storage devices, etc.

By, 27 Jan, 2015, Section: Thoroughly, Accessories, Signal distribution
