Keywest develops a six-channel digital signage player with a function to control video walls

Breeze Multi-Head 6 It is a two-in-one system that offers functionalities to operate as a digital signage multimedia player, connected to the cloud to deliver content to screens, or as a display controller, supporting up to a maximum of six displays installed horizontally or vertically.

El Breeze Multi-Head 6 is a multi-channel signage player designed by Keywest Technology with the Intel Core i7 processor and operating with Ubuntu open source software.

This Keywest Technology media player supports up to six 1080p channels providing a total resolution of 11,520×6.480 pixels to create video wallsl with thin bezel LCD screens controlled via cloud service Breeze Digital Signage.

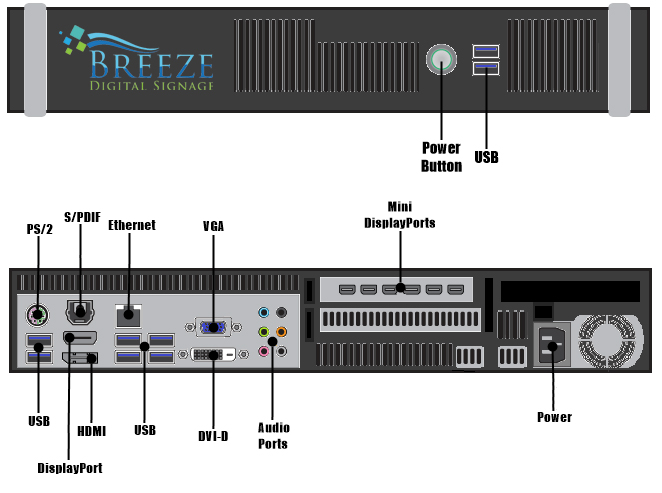

El Breeze Multi-Head 6 It is housed in a rugged 1.5RU enclosure designed for 24-hour operation.×7. Integrates a video card with six HDMI ports and Mini DisplayPort outputs. The chassis also uses a 400W power supply with two internal cooling fans and a front-to-back flow design for better heat management..

“This new digital signage media player provides system integrators with, interior designers and architects an attractive option for designing large format LCD displays with thin bezels. Intended to work with all commercial grade LCD products, allowing AV designers to implement video walls with just a few components. An ideal technology for creating large images in an attractive way, affordable and reliable”, explica Nick Nichols de Keywest Technology.

This new Keywest equipment, In fact, offers two products in one. First of all, is a digital signage player that connects to a cloud server to download content automatically or on a schedule.

Automated content typically comes from built-in widgets that pull data from online or third-party sources. Widgets are responsible for delivering news and RSS feeds, while third-party providers deliver personalized content. Another way to control content is by scheduling playlists through an online editor.. The Breese player can be easily controlled from anywhere using the Internet.

The second function offered by the Breeze Multi-Head 6 It's like multi-screen controller, which works similar to a video display controller. Supplied configuration software allows up to six displays to be configured, either in horizontal or vertical orientation. This gives some variation and flexibility in the result., allowing users to have individual content on each channel or broadcast content to all screens combined. In any of the cases, The screens must all be the same model and resolution, 1080p being the default option.
