Extron CS 123T: SpeedMount 70/100V Full Range Ceiling Speaker System

The New SpeedMount CS 123T Ceiling Speaker System from Extron, with UL plenum certified housing 2043, offers a reduced profile designed for task-sharing installations and provides a 165° conical dispersion for flexibility in speaker space and maximum message coverage and intelligibility.

Developed for applications where high coverage and intelligibility of public address messages is required in low ceiling spaces, Extron The CS 123T system is available, with a unique speaker design that greatly simplifies in-ceiling speaker installation, without the need for an internal support (C type ring or inner rail), since the signal wiring is routed to the case, which results in significant time and cost savings.

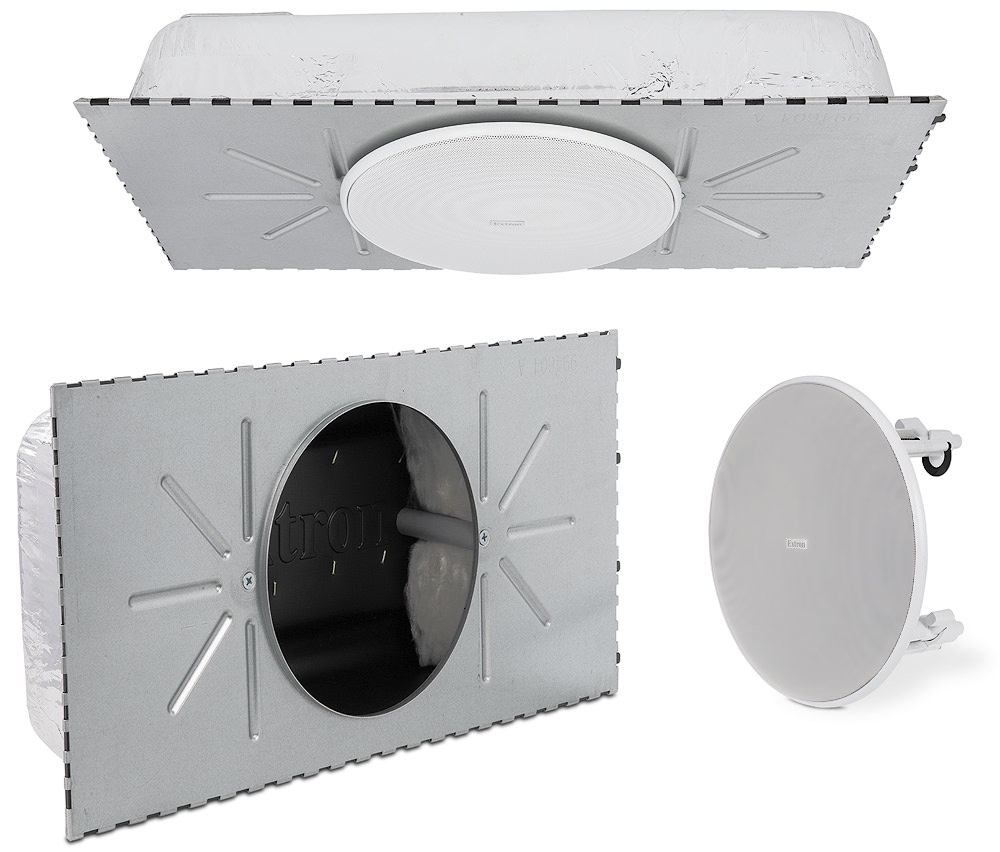

SpeedMount CS 123T consists of two patented pieces for suspended ceilings in installations with shared tasks: a CS 120P plenum rated enclosure (UL 2013) and a CS 3T full range speaker module, Available separately or together in a complete CS123T package to provide options for AV system installers.

This system has an acoustic enclosure of 7,6 cm. (3 in) full range, with a conical dispersion of 165° (8 Ω directos o 70/100V, according to a six-position selector located behind the grille), to offer wide coverage and flexible speaker placement, con 16 Continuous pink noise W and 32 W for continuous program.

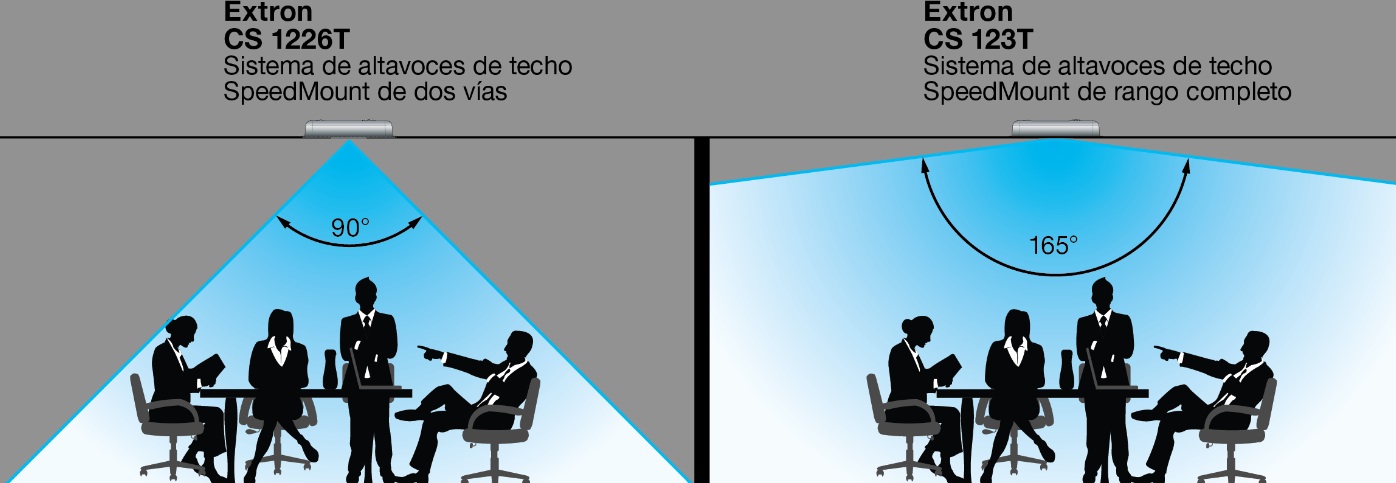

The Extron SpeedMount series of ceiling speakers are available in: CS 1226T, with a two-way design, frequency response from 70 Prophet is sick 20 kHz and a nominal coverage angle of 90°, Suitable for a wide variety of audio applications, including music, program and voice.



The CS 123T version offers a frequency response optimized for voice from 118 Prophet is sick 20 kHz and an extremely wide nominal coverage angle of 165° for applications where high intelligibility and maximum coverage are desired, such as public address and low ceiling installations.

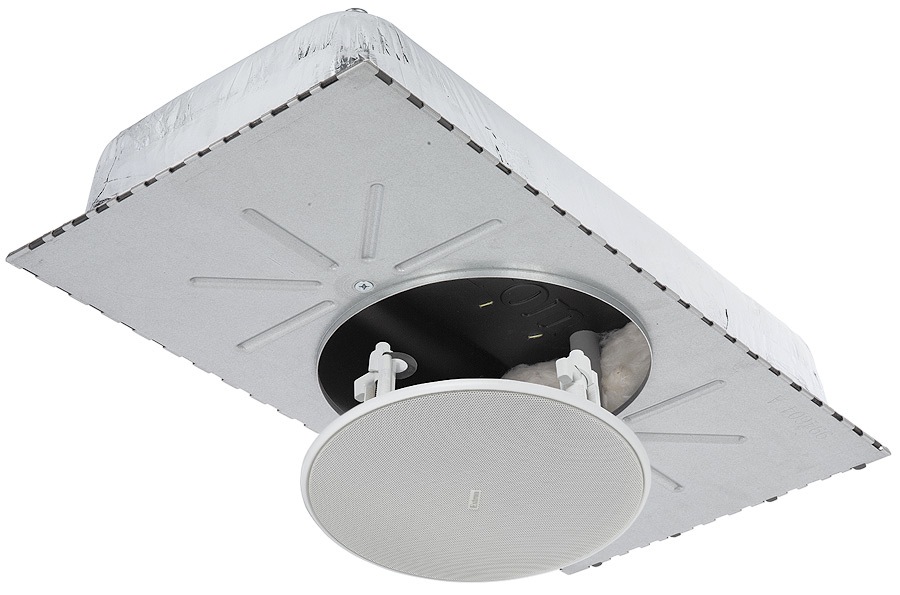

The CS 120P enclosure has an integrated interior support that evenly distributes the weight of the enclosure and the CS 3T speaker module on the ceiling panel., which avoids the use of accessories to support conventional ceiling speakers, thereby reducing associated labor costs.

Shallow return plenum space

The rear enclosures of many conventional ceiling speakers may not be best suited for locations in obstructed ceiling spaces., such as fire sprinkler pipes or HVAC ducts. For this reason, CS 120P has a shallow profile, of 12,7 cm. (5 in), For installation in areas with a shallow ceiling clearance, with removable size adjusting tabs for 600 ceilings×600 mm.

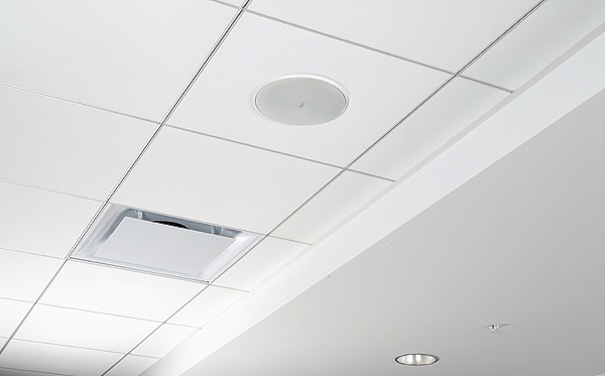

Besides, CS housings 120 Delivered from the factory for installation in North American style suspended ceiling panels (the 2x2ft), and are also compatible with metric square ceiling panels from 600 mm., To do this it is only necessary to cut the size regulating tabs at the ends of the housing.
