VIO 4K: multiformat converter for live events from Analog Way

Versatile, adapted to ultra-high resolution formats and with the latest generation of digital connectivity, new VIO 4K multi-format converter adapts to the most demanding configurations of the live events industry.

The new multi-format converter Analog Way, called VIO 4K, it has seven inputs to facilitate the conversion of a multitude of signals, including DVI Dual-link, DisplayPort, HDMI, 6Universal analog and optical G-SDI, with output formats up to 4K-30Hz or 4K 60Hz with optional upgrade card.

Adapted for the management of non-standard signals, especially for LED video wall, VIO 4K offers Dual/Tri output mode, that allows the same input to be in three different outputs with independent formats, as well as aspect ratio, viewing area (AOI), etc. The rotation function rotates the output image to 0, 90, 180 and 270° per exit. Advanced AOI management, as well as the unlimited possibility of resizing the output signal, facilitates accurate sizing of a font, adapting to the resolution of the screen connected to the output.

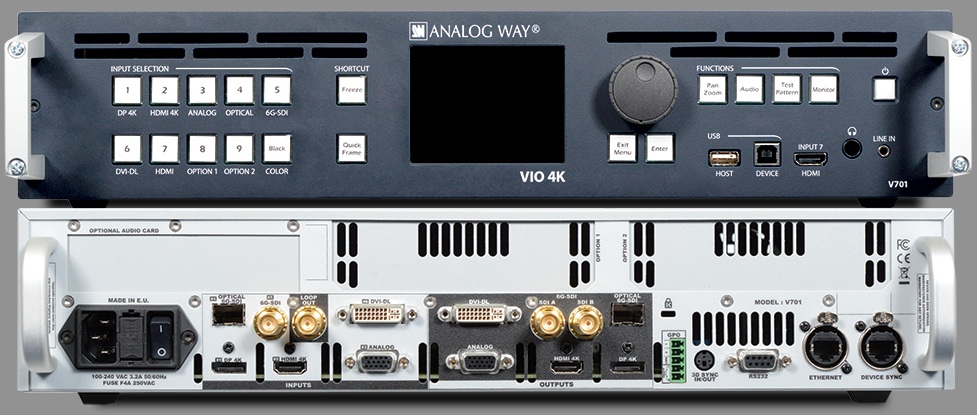

VIO 4K is easily controlled directly from the front panel, thanks to the 3.5” TFT screen for live viewing of input sources. The built-in web server allows control via Ethernet and USB, with a complete graphical interface to view content and operating operations both from the front panel or by software.

Thanks to the symmetry between the input and output connectors, VIO 4K guarantees optimal conversion to respond to demanding live event configurations, with advanced audio signal management, both digital and analog.

This converter incorporates two slots for optional I/O cards for video processing, to handle formats up to 4K – 60Hz 4: 4: 4, and another for optional audio card with XLR connectors, offering a total of nine inputs and three outputs. Any cards added are independent and have their own processing. To facilitate maintenance and product reliability, DVI connectors are located on separate cards.
