AJA mini converters for AV and digital signage installations

HB-T-SDI mini converters, HB-R-SDI, AJA's ROI-HDMI and HD10MD4 offer different options for extending SDI signals and incorporating computer signals into video production.

AJA Video Systems has announced the availability of its HB-T-SDI mini converters, HB-R-SDI, ROI-HDMI y HD10MD4. Systems that were presented at the last IBC and offer different options to extend SDI signals and incorporate computer signals in video production.

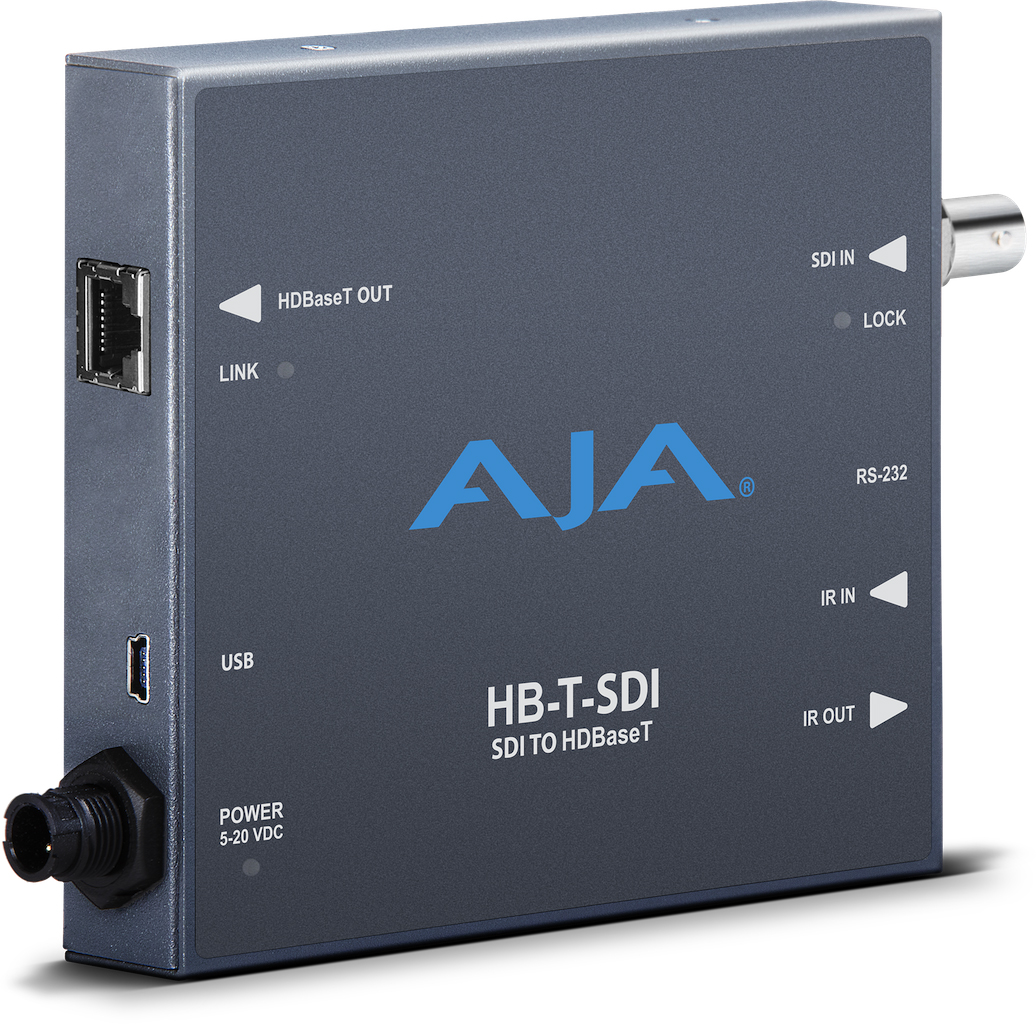

HB-T-SDI and HB-R-SDI mini converters extend 3G-SDI signals over Ethernet cable, using the industry standard HDBaseT protocol.

Equipped with bidirectional IR and RS-232 port, These devices are designed for a wide variety of environments from fixed AV installations, digital signage, live events, post-production, networks or production on film sets.

These devices can be integrated with mini converters based on HDMI and HDBaseT, allowing customization of video inputs and outputs through an Ethernet connection..

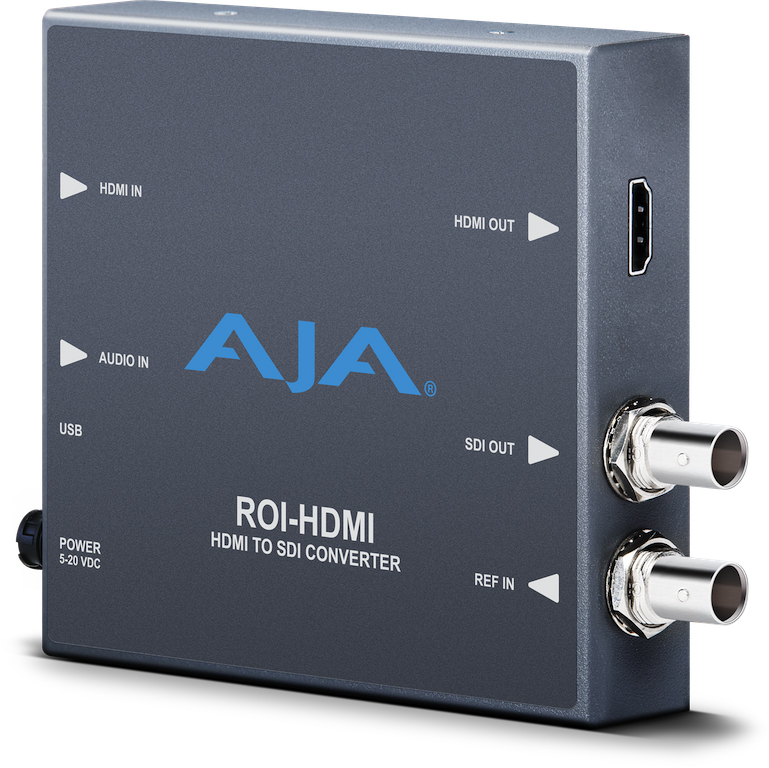

As for the ROI-HDMI, it offers real-time scaling and SDI video output from a computer HDMI output., allowing computer signals to be incorporated into a video workflow without sacrificing budget or space. Users can select an area of ​​interest in the image from the HDMI signal and control how that area is scaled in output using advanced algorithms developed by AJA capable of maintaining maximum image quality..

The HD10MD4 is a miniature downconverter for converting HD-SDI to SDI and composite video. Uses Full 10-bit data processing and multipoint interpolation that ensures broadcast quality in downconversion.

Besides, The HD10MD4 converts 1080p24 or 1080p24sf signals to 59,94 Hz using a pulldown technique 3:2. The output can be set to 4:3 o 16:9 for standard definition monitors. Four-channel HD-SDI input for embedded audio allows for an SDI output. A mini-USB jack allows configuration and control of this device from any PC or Mac.
