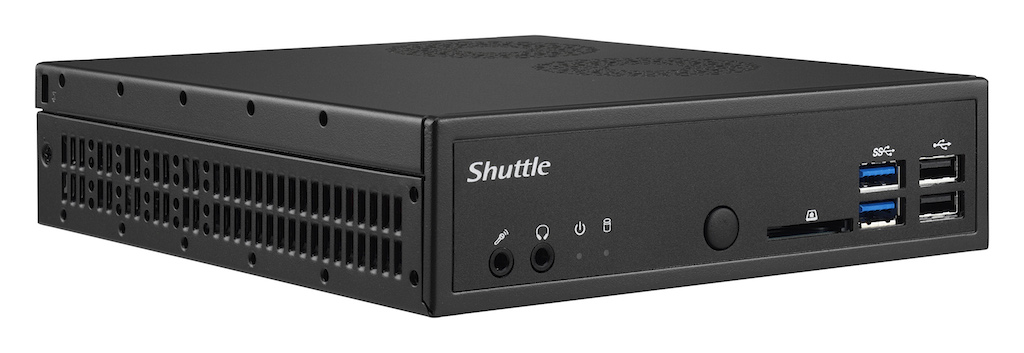

Shuttle DH170: PC solution 43 mm for three 4K monitors and LGA1151 processor

Supports three monitors with 4K resolution, this new PC solution in 43 mm. It is especially indicated for the new LGA1151 processors and operates in an ambient temperature of up to 50º C..

El barebone DH170 de Shuttle It is integrated as the third model in a row in its range of mini PCs compatible with Skylake. Thus, The company has a variant available in the classic cube format: one in the 3 liters and another in the compact 1,3 liters.

This is what Tom Seiffert points out, head of marketing and PR. the Shuttle Computer Handels: “This housing format is also suitable for those environments subjected to harsh conditions where high computing power is also required. Flat casing steel casing 43 mm. “It offers good protection against mechanical influences and withstands an ambient temperature of up to 50° C.”.

El barebone DH170, based on Intel H170 chipset, It is compatible with any Intel Celeron processor, Pentium and Core of the 6th generation for the LGA1151 socket (TDP up to 65 watts). Combined with 16 GB of DDR3L memory in dual-channel mode and an M.2 SSD with PCIe connection, higher speed is reached.

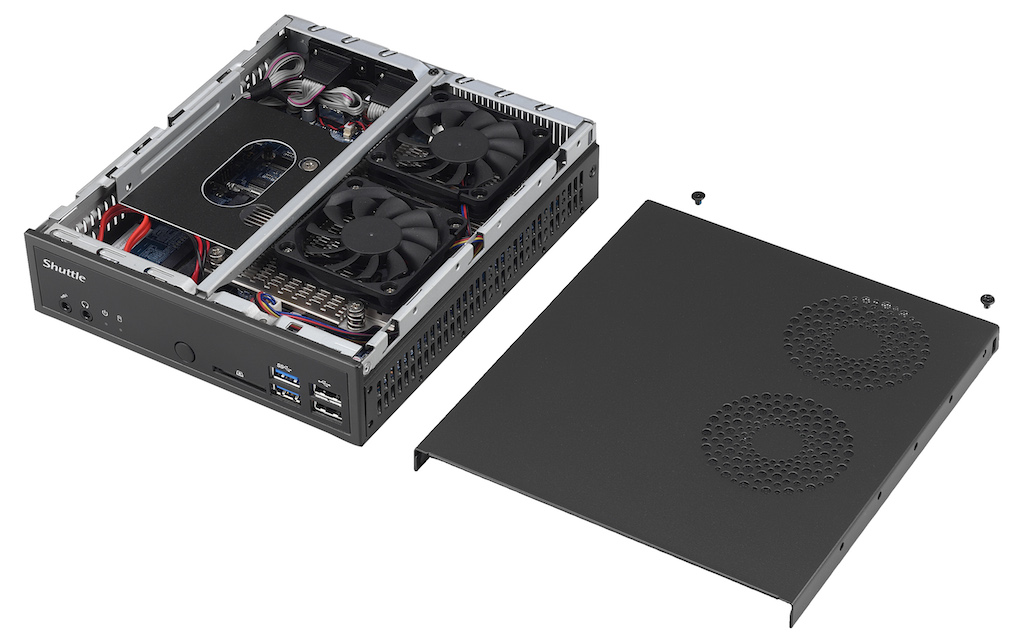

This system allows you to integrate a 2.5” drive with SATA 6 GB/s and a Mini-PCI-Express extension, as a WLAN module, since it has accommodations available to mount WLAN antennas.

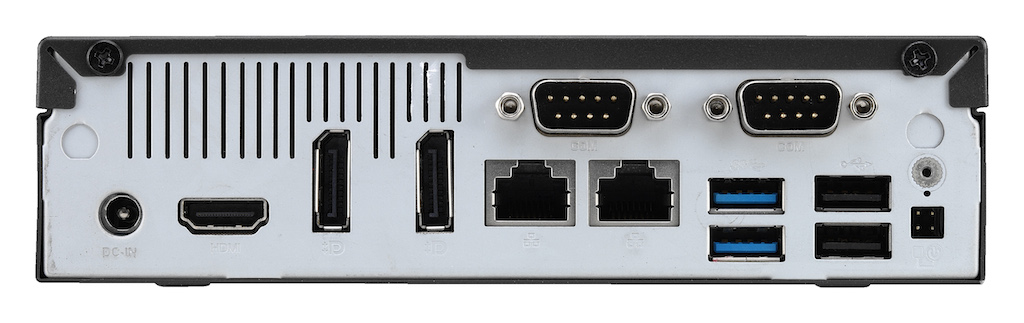

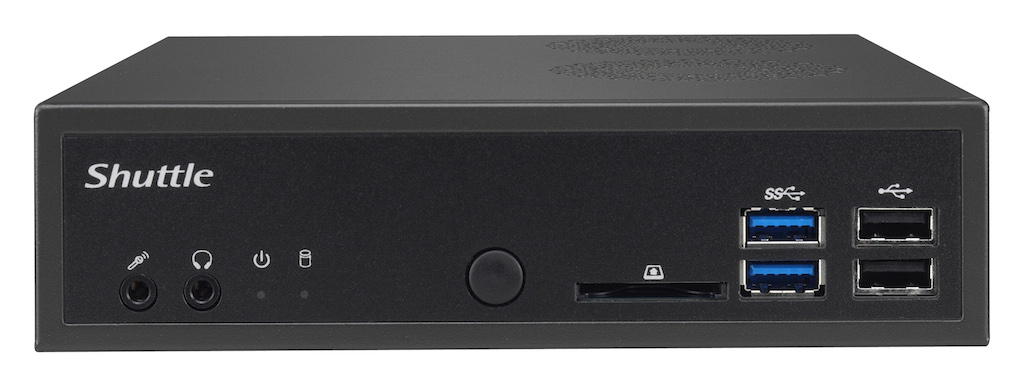

Outside the case there is a card reader; dos Intel Gigabit Ethernet; four USB 3.0 and the same number for USB 2.0; dos DisplayPort; one HDMI input, dos RS-232, as well as audio connections.

Like Shuttle's first two LGA1151 models, The DH170 system also allows parallel operation of high-resolution 4K displays, con 60 Hz (in DP) y 30 Hz (an HDMI), for which it is recommended to use Core i3 processors.

On the back there is a four-pin connection through which the equipment can be started remotely (For example, when it is a fixed installation and does not have easy access). If necessary, A jumper on the motherboard allows the device to be on continuously and to start automatically as soon as it is connected to the mains..

DH170 can also be used in different positions, either horizontally on the desk or with the included Vesa mount, mounted on various surfaces and suitable displays.
