Belden develops a structured cable to transmit video signals in HDBaseT

With the name 2183, This cable allows the transmission of uncompressed video in 4K quality while carrying power. (100W) up to a distance of 100 meters thanks to its robust protection.

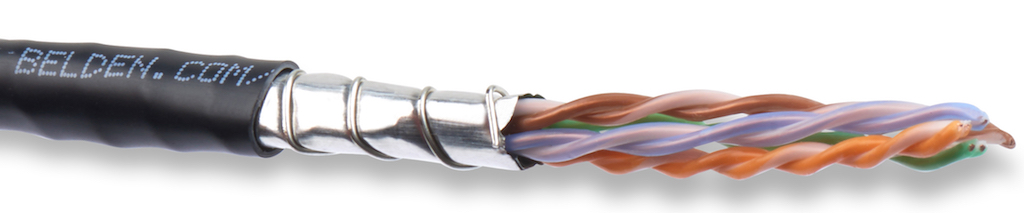

Specially created by Belden to transmit signals in HDBaseT, that is to say, uncompressed video in 4K quality, structured cable 2183 It has very reliable specifications to support the sending of data in ultra high definition up to 100 meters thanks to its flexible and corrugated foil protection at the same time.

This new Belden cable solves the main problem with HDbaseT, the so-called 'alien crosstalk' or crosstalk between cables within the same harness, since thanks to its protection it guarantees that the signal (very delicate due to its bandwidth and its need to work in real time, no latency) remains to be transmitted until 100 meters away.

Added to this is the use of this manufacturer's bonded pair patent., that achieves an impedance without ups and downs. At the time of installation it is common for unglued pairs to open and for external noise to affect each conductor differently. (generating noise). With the pair glued together, gaps between the conductors are eliminated when pushing, pulling and twisting the cable, very common in the installation.

Juanma Cortes, Belden AV sales manager for Mexico, explains that “by using our 'rev-connect' solution we speed up the installation and avoid possible outages. Thanks to minimal manipulation we manage to avoid connection errors, since manual cutting of cables is eliminated and we make life much easier for the installer”.

Belden 2183 can also be used in high-end applications for centralized and automated lighting. “We manufacture cables that meet the connectivity needs of installers who work with the main automation brands., like Crestron, AMX, Lutron, etc; from the typical double pair solution (feeding and control) in its numerous versions, to the category cable for Ultra HD applications”.
