JBL series 7: powered studio monitors for production and content creation

These compact systems offer optimal audio output, Patented transducer and waveguide technologies, as well as wide acoustic imaging and greater precision for critical listening applications, among other features.

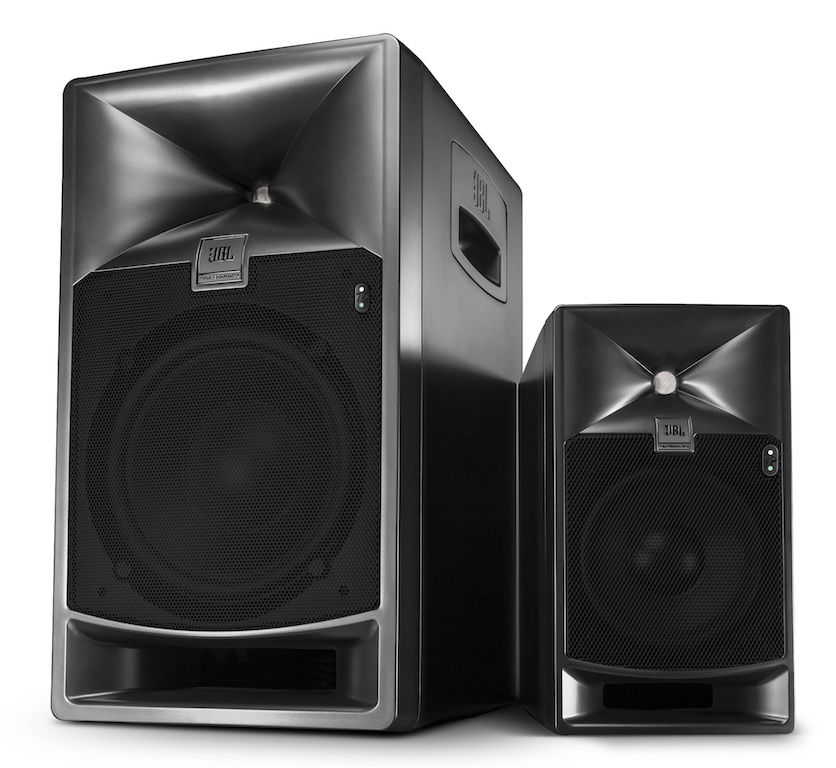

The new series 7 of self-powered studio monitors JBL, composed of the LSR705P models, with 5” woofer, And LSR708P, with 8” woofer, offer high power output and best-in-class precision for post-production studios, broadcast and recording, in addition to incorporating patented transducer and waveguide technologies, originally developed for M2 monitors.

For Peter Chaikin, director recording solutions de Harman International, "to the JBL series 7 Developed from the ground up as our next-generation music solution, post-production and brodcast production. Every aspect is designed to meet challenges and deliver a new level of performance to engineers., producers and content creators. Powered versions overcome the limitations of traditional studio monitors, with tools to achieve the best results, enjoying the creative process at the same time”

Proprietary and patent-pending acoustic technologies offer a way out, Significantly better dynamic range and detail to help professionals work from longer distances and overcome less ideal locations.

JBL waveguide technology provides neutral response and optimal room-to-room consistency, while the integrated room equalization solves low frequency problems, enemy of engineers for years.

The series self-powered monitors 7, available in the Iberian market through Earpro, use JBL transducers to deliver greater dynamic range and superior frequency response. Both models have the 2409H compression motor, incorporating an innovative low-mass annular diaphragm to deliver extraordinary output and very low distortion, with response beyond 36KHz.

Low frequency transducer (de 5” 725G) used on the 705P offers a peak-to-peak excursion of 14 mm. with greater linearity, giving optimal low frequency output that reaches up to 39Hz. Low frequency transducer (the 8” 728G) found on the 708P model optimizes JBL's Differential Drive technology to reduce power compression and deliver better sustained output and extended, linear low-frequency operation, that reaches up to 35KHz.

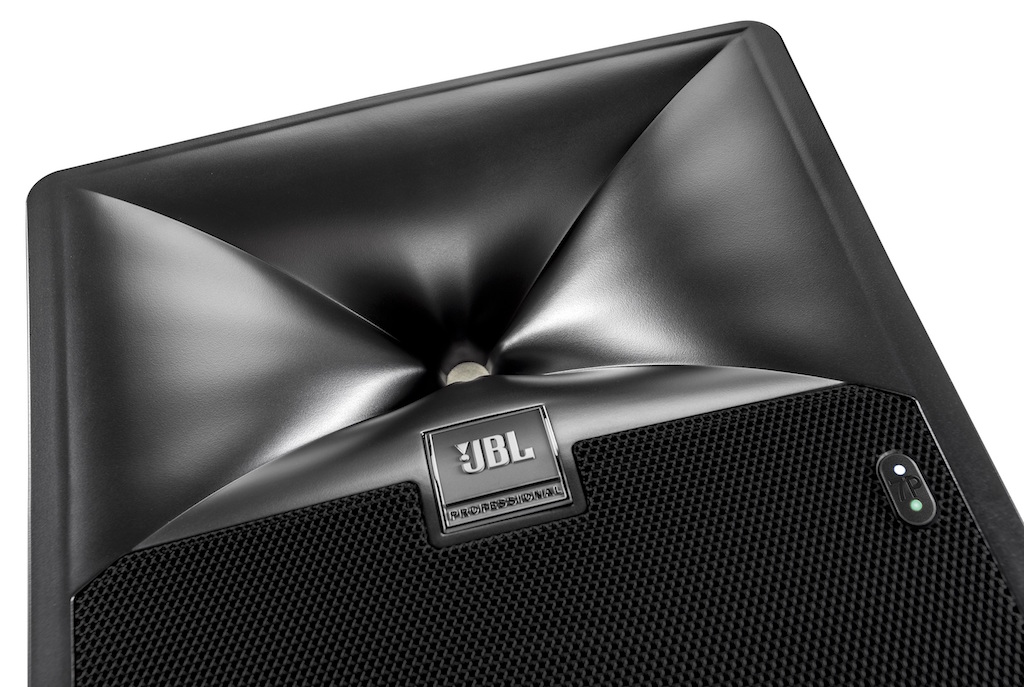

Both models feature patent-pending Image Control Waveguide technology, providing an acoustically perfect transition between woofer and high-frequency transducer and a wide listening spot, with improved sound details. With a smooth and neutral frequency response, both on and off the axis, These self-powered monitors provide greater accuracy and perform equally well., regardless of the room they are in and their location in it.

Inside each monitor is a built-in dual amplification system, optimized for high power transducers. A 120W amplifier powers the 2409H high frequency transducer, while another 250W is dedicated to the low frequency 725G and 728G, with a good output and level of detail, even at even greater listening distances.

Built-in room equalization, DSP based, compensates for acoustic problems in any room, providing more accurate sound reproduction. Twelve bands of room EQ and eight bands of user EQ allow professionals to tailor the response of the speakers., thereby reducing the adverse effects of poor room acoustics and optimizing precision, whether the monitors are in the middle of the room or located next to the walls of the room.

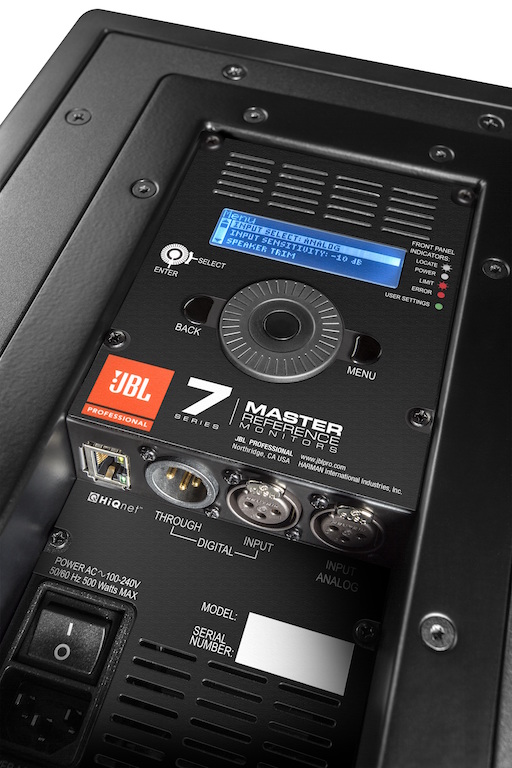

These devices have analog and digital AES/EBU inputs, making it easy to connect to a wide range of audio production hardware, including DAW workstations, mixing consoles and digital playback hardware with sample rates up to 192KHz.

The series self-powered monitors 7 They were developed with modern control rooms in mind.. A compact design of 2 vias minimizes interference with video signals and lines of sight, while providing output comparable to larger speakers. Reinforced enclosure includes bottom and rear mounting points for wall and ceiling installation, as well as with vertical or horizontal orientations.

Designed to fit the needs of producers, recording engineers, mastering studios and remote production facilities, These systems complete the existing ones for installation 705i and 708i, that serve as the core of a complete and scalable system, based on external multichannel amplifiers and central system control.

Facilities working in immersive and immersive formats will benefit from the compact size, of the powerful output and easy mounting of the 705i and 708i models. The electronics, centrally located, eliminates the need for power outlets for each speaker and allows powerful control of any number of channels in any size room.

Multiple monitors of the series can be combined 7 with the new Intonato studio monitor management system 24 from JBL to create a complete monitoring system, with immersive audio production. Tuned 24 gives audio professionals the ability to quickly optimize their environment for superior accuracy and to easily scale their system, according to your future needs.
