Shuttle DH270: mini PC con HDMI 2.0 for multi-screen operation and digital signage

This model also has two HDMI 1.4b ports., enabling operation in multi-display workplaces or digital signage environments with up to three monitors with 4K resolution.

Thanks to Intel's H270 chipset, the DH270 mini PC Shuttle incorporates an HDMI port 2.0 for desktop processors with LGA1151 socket and is especially versatile for application in digital signage systems with up to three Ultra High Definition displays (4K, one to 60 Hz and the other two at 30 Hz).

“Until now, fluid representation was only possible with sixty images per second (con HDMI) in models with dedicated graphics card - explains Tom Seiffert, director of marketing y the Shuttle Computer Trade. The subsequent products, including those of other model series, They will also soon come equipped with an HDMI 2.0” port..

Another innovation of the DH270 is the USB type C connection on the front panel, so that when used and protected against reverse polarity, it puts an end to the eternal search for the correct side to connect these devices..

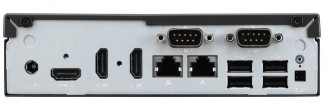

Two USBs are added to these connections. 3.0; four USB 2.0; dos Gigabit Ethernet, two serial ports and, of course, audio inputs and outputs, plus SD memory card reader.

Like his predecessors, This Mini PC has a Remote Power On connection installed on the back, allowing the use of a second power button and facilitating installation of the equipment in hard-to-reach places.

As optional accessories it has a 19” rack mounting kit. (PRM01), an M.2 WLAN/Bluetooth module including antennas (Wln-m), one VGA port (PVG01), vertical support foot (PS02) and a connection cable for external power button (CXP01).
