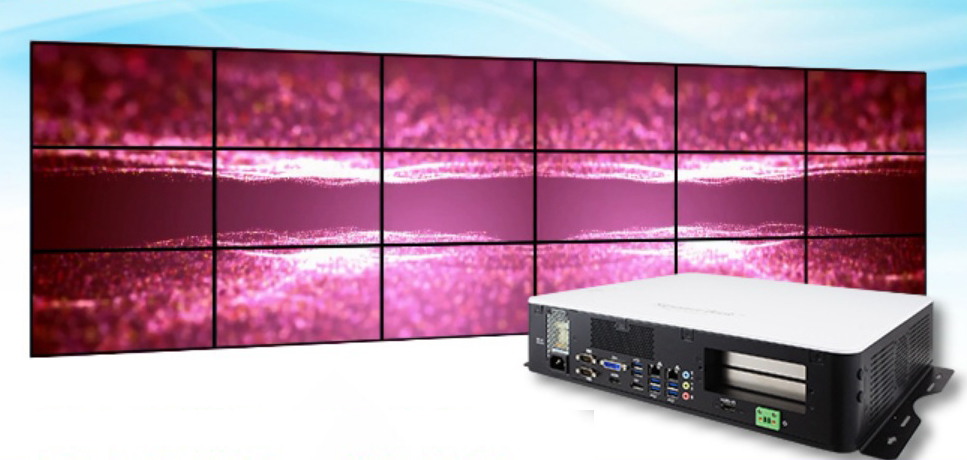

IBase SI-61S: UHD multi-screen signage video wall player

Equipped with the latest Intel processor allows integration with Matrox graphics cards, AMD or Nvidia to play high-resolution dynamic content on different screen layouts.

IBase Technology has introduced the SI-61S high-resolution player, a device designed for use in multi-screen video wall signage environments. It is equipped with the 7th generation Intel processor and can be integrated with Matrox graphics cards, AMD o Nvidia PCI-E (x16) o up to PCI-E (x8) to play high-resolution dynamic content on different screen layouts to attract consumers' attention.

Taking as an example videowall of 3×3 most common, the SI-61Swith the Matrox C900 PCI-E graphics card (x16) With nine display outputs it can play very high definition images and videos with a resolution of up to 6Kx3K. For an ultra-large 6" video wall×3 can be connected with two Matrox C900 PCI-E graphics cards (x8) Nine outputs to play UHD images and videos up to 12Kx3K.

Besides, can be connected to a large format video wall with a PCI-E graphics card (x16) Single output for 8K super high definition image/video playback. An external 4K video capture card can also be used to provide live video input.

System includes two low-profile Mini PCI-E slots with full-size and half-size slots. WiFi can be installed, Bluetooth, 4G LTE or video capture cards to increase the convenience of network connectivity.

Provides flexible video wall and resolution configuration modes, as well as IBase's latest iCcontrol smart energy saving and remote control technology. Users can take advantage of this technology for intelligent energy saving, automatic programming, automatic power resumption, low-temperature power-on protection and smart operating system recovery capabilities.

The SI-61S has a remote control system for temperature, voltage and fan speed contributing to lower maintenance costs, Greater system stability and long-term stable operation 24 hours of the day, los 7 days of the week. The product life cycle of the system is estimated at more than seven years.

Features:

• iControl, Intelligent energy saving and remote monitoring technology.
• 6th or 7th generation Intel Core desktop processors.
• Dos DDR4 2133 SO-DIMM, dual channel, maximum 32 GB.
• A mini PCI-E (full size) for WiFi, Bluetooth, 4G LTE or card capture.
• A mini PCI-E (half size) for WiFi, Bluetooth o 4G LTE.
• Two 2.5” Sata SSD with RAID support 1.
• A PCI-E (x16) o up to PCI-E (x8) based on PCI-E x16 connectors for Matrox GPU card options, AMD y Nvidia.
