iBase UPC-7210: PC panel for smart retail applications

This robust IP65 equipment has a IPS LCD screen of 21,5 inches and resolution of 1,920×1.080 allowing multi-touch and gesture functions.

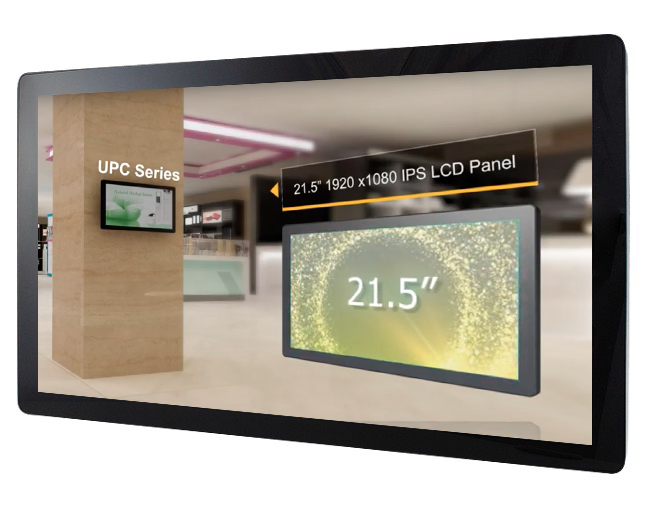

IBase Technology has presented a new panel PC from the UPC series designed for smart retail applications. The UPC-7210 fanless model offers a completely flat bezel design with a 1080p IPS LCD display. 21,5 inches and resolution of 1,920×1.080. Its projected capacitive touch technology allows multi-touch and gesture functions.

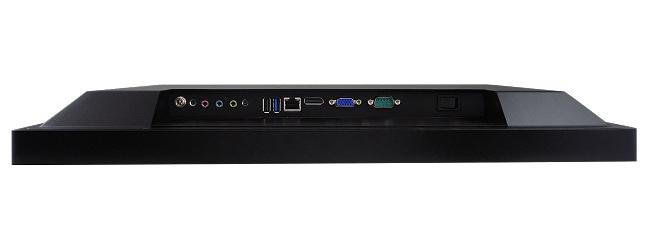

It is built with a sealed housing and IP65 waterproof rated front panel. Available with 7th generation Intel Core processors, It is equipped with four USB 3.0, one USB 2.0, dos Gigabit Ethernet, additional HDMI and DP graphics, entry of 24 VCC and up 32 GB DDR4 support.

Also includes 64GB of SSD storage, mPCIe to mSATA, 12VDC input, optional wireless solutions and Windows support 10 y Linux Kernel 4+.

With VESA mount (100×100), The UPC series is not limited to wall mounting, but can be mounted on the desk or on a swivel arm.

“UPC Series Panel PCs are visually appealing and intended to enhance customer experiences in retail and restaurant environments.”, like convenience stores, department store, airports, cinemas and specialized stores. These high-performance, low-power systems are designed for long-term use and have no problems operating in ambient temperatures up to 50 °C”, comments Wilson Lin, director of iBase Product Planning Department.

Features:

• IPS LCD panel of 21,5 inches.
• Resolution 1,920×1.080.
• Projected capacitive touch screen, supports multi-touch IP65.
• Wide variety of processors.
• Optional wireless solution.
