Extron AV helps create cybersports facilities at an educational center

He Wake Technical Community College has included cybersports as part of its educational program. With this objective, a specific room has been created for the development of this activity.. A space that has been designed with switching systems, AV distribution and control Extron.

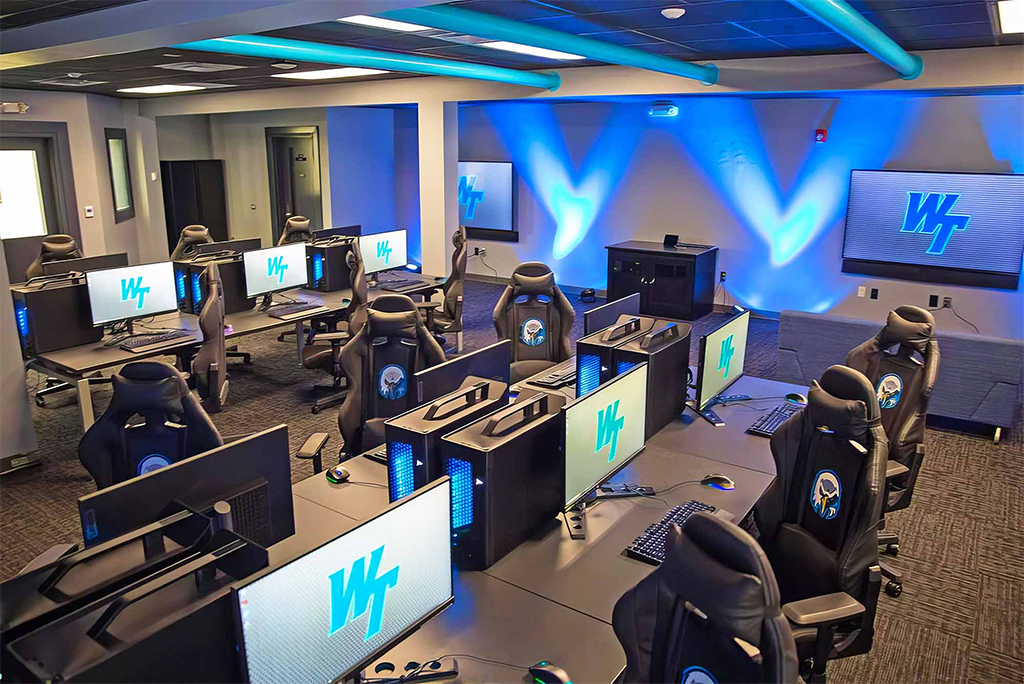

El staff AV/TI part Wake Technical Community College (Wake Tech) has worked with the integrator Strategic Connections to upgrade and retrofit existing AV systems in a dividable classroom on the Southern Wake campus, with the purpose of creating a cybersports stadium as a 'local field’ con 14 seating and cutting-edge technology for the Wake Tech Eagles varsity team. Extron was selected to provide the products of commutation, distribution, control AV y audio to the project.

Located in Raleigh (North Carolina – USA), has become the only one among statewide institutions to include cybersports as part of its intercollegiate sports program. This is closely linked to the school's academic programs.. As Scott Ralls, president of Wake Tech, explains “in Wake County, Esports and game development is not just fun and games, it's a big business. “It is a perfect complement to our game simulation and development degree program.”.

Jennifer Unites, Associate Director of Academic Technologies de la Wake Tech, y William Reed, End User Support Analyst, They executed Brian Anweiler's vision, Dean of Student Activities and Athletics, to design and build the esports stadium AV system in an existing divisible classroom.

Most of the budget was dedicated to equipping the player stations with high-end gaming computers, peripherals, gaming chairs and other equipment that a cybersports team must have to seriously compete and win.

Unitis and Reed were creative in order to make the best use of the rest of the budget and create an AV system that met the expectations of both players and the cybersports audience. It began with AV equipment rescued from the instructor's existing lectern. William Reed used the knowledge gained from Extron certified training, along with your daily hands-on experience installing and maintaining AV systems across campus, to design and create the first version of the AV system. Professional AV integrator Strategic Connections was later hired to modernize and upgrade the AV system with the latest Extron products..

Create a cybersports AV system

The AV equipment from the original teaching lectern was relocated to other areas of the classroom during the conversion to a cybersports stadium. The music stand was primarily used for local playback of archived gameplay on Twitch or other gaming platforms..

Players gather in the spectator area to view this content on the gaming monitors of 55 inches. They evaluate game actions from previous competitions to improve their strategies and analyze opponents' play in preparation for upcoming competitions.. The lectern is equipped with a gaming computer with a tower Lenovo Legion and a switching transmitter three entries DTP T DSW 4K 233 that accepts HDMI video, DisplayPort y VGA y audio, and sends the signals from the music stand to the main AV system. In case it is necessary, The lectern has all the AV and network connectivity required to function as an extra gaming station during competitions.

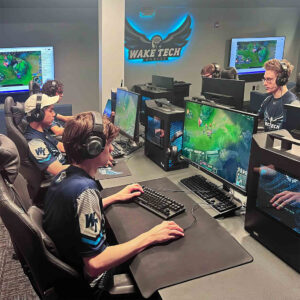

gaming computers Lenovo Legion used by the cybersports team during interschool competitions use the app Note Studio open source to present on screen and broadcast live through the school's cybersports channel on the Twitch gaming platform. This approach provides Wake Tech Eagles youth cybersports teams with a cost-effective facility to connect and compete against opposing teams at other schools..

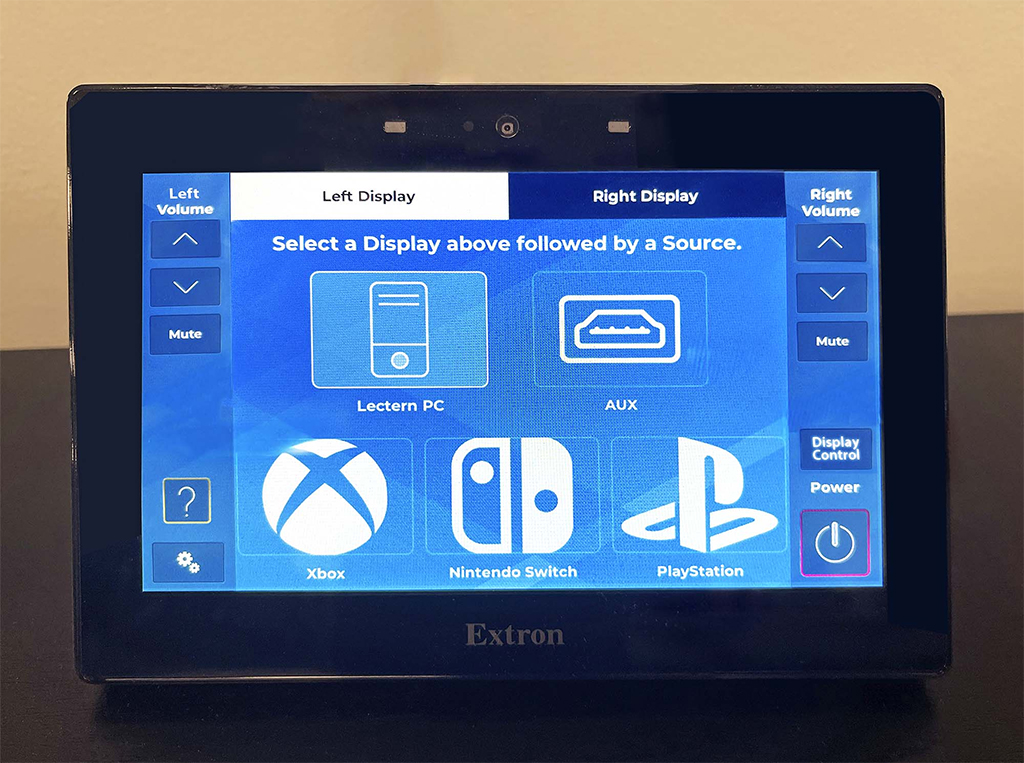

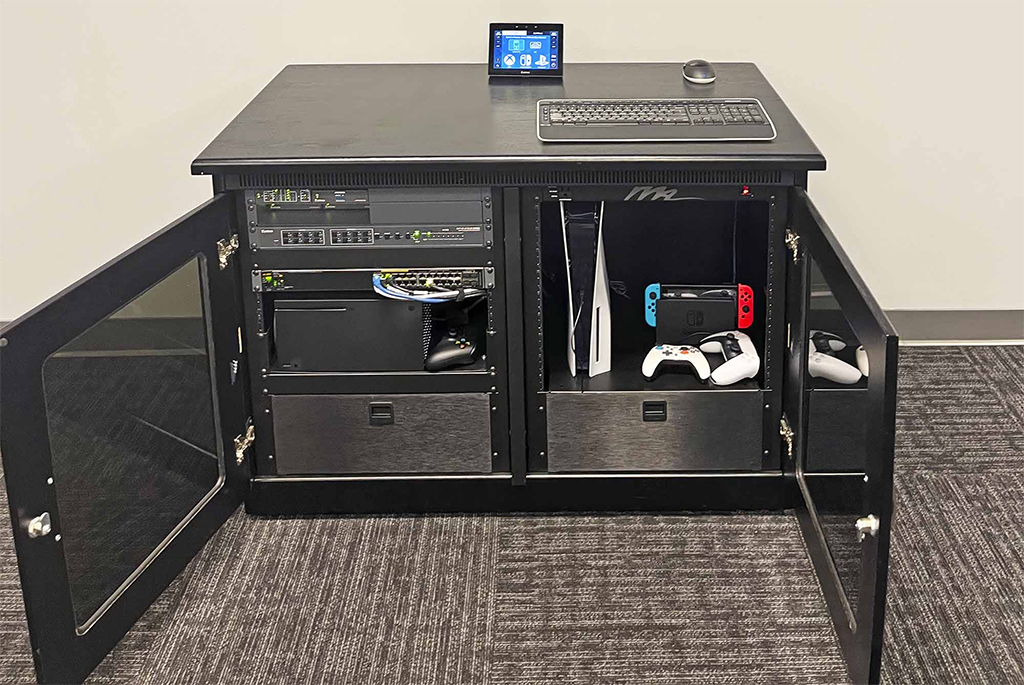

The main AV equipment components are housed in the cabinet. This includes a fixed computer for general use and to run different gaming apps, a 8 switching matrix×8 DXP 88 HD 4K Plus, DTP transmitters and receivers and a IPCP Pro control processor 250 xi. The matrix is ​​configured to automatically switch to one of the three consoles , depending on which of them is the first to provide an active signal. Users can manually override automatic mode using the TouchLink Pro 7 touch screen″ which is located on top of the closet.

Part of converting the learning room into an esports facility involved increasing the level of the sound system. And XPA amplifier 2001 of 200 W upgrades the cabinet's AV system and powers nine existing ceiling speakers.

Spectator room and announcer's booth

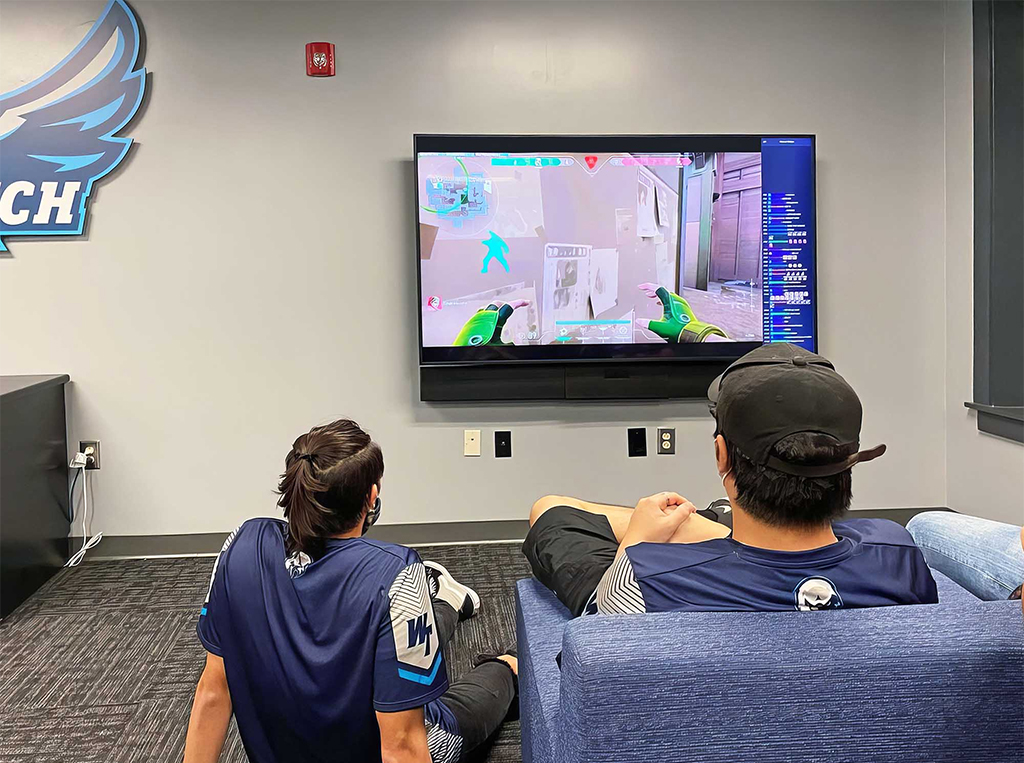

Flanking the cabinet to the left and right are two Alienware OLED gaming monitors. 55 inches. Players and coaches review replays of past tournaments to draw up new strategies. Fans enjoy stunning real-time views of the game during tournaments. Each display device streams audio to an SB sound bar 33 A mounted below, so that the sound is equally impressive.

A WPD HDMI pass-through wall plate 163 is located under each display device, in which gaming consoles can be connected to play locally in the leisure area. A SW2 HD 4K Plus two-input 4K/60 HDMI switch is mounted behind each display in the entertainment area to switch between gaming console signals from individual game wall plates and competitive game signals from the main AV system in the closet.. SW2 switches are configured to automatically select the wall plate's HDMI input when a gaming console is connected and provides an active signal.

Streaming is an integral part of viewers' esports experience. The caster broadcasts from a room right next to the playing area. Watching via a network connection to Twitch, the caster provides play commentary to the in-room and online audience. Use a professional-grade condenser microphone and operate an audio mixer to combine audio with commentary.

When Wake Tech introduced academic cybersports, Their strategy was to start small and build capacity if it sparked interest.. He currently has a roster of approximately twenty players., that is increasing, on multiple intercollegiate esports teams. They have added a second facility to the Research Triangle Park campus (RTP) and are considering an expansion of AV capabilities at both locations. Recently, The school has partnered with the parks and recreation department of the nearby city of Morrisville on a program that invites community groups and individuals to participate in the game at the RTP campus cybersports facility., as reported in this newscast and published in this press release.

Implemented equipment:

• DXP HD 4K Plus: 4K/60 HDMI Matrix Switchers with Audio Deembedding.
• SW HD 4K Plus: 4K/60 HDMI Switches with Ethernet Monitoring and Control.
• DTP T DSW 4K 233: Three-input multi-format switcher with integrated DTP transmitter and embedded audio.
• DTP2 T 211: DTP2 HDMI 4K/60 transmitter with audio embedded.
• DTP2 R 211: DTP2 HDMI 4K/60 Receiver with Audio De-Embedding.
• XPA 2001: mono amplifier 70/100 V – 200 W.
• SB 33 A: Adjustable Width Sound Bar.
• IPCP Pro 250 xi: IPCP Pro xi control processor.
• TLP Pro 725T: TouchLink Pro 7 touchscreen″ for dessert.
• Global Configurator Plus y Global Configurator Professional: Configuration software for AV control systems.
• GUI Designer: Free UI Design Software.
