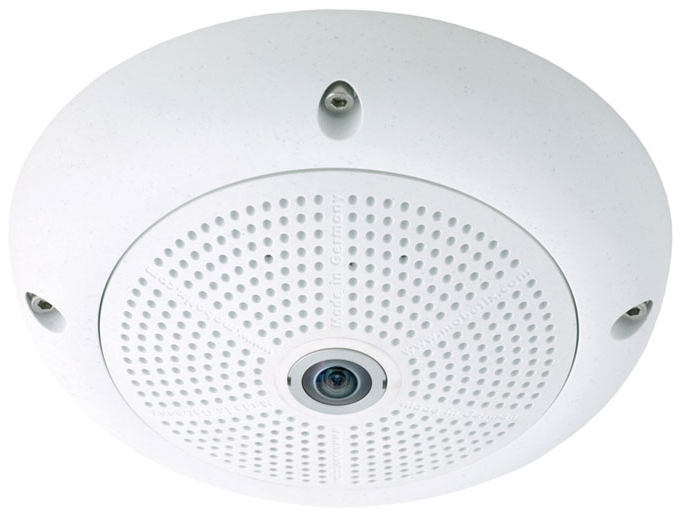

With its high-resolution sensor combination, hemispherical optics and internal DVR, The Mobotix AG Q24M-Sec hemispherical camera allows you to monitor an entire space with a single camera and save images as high-definition video, and now you can also count people and objects, measure, and analyze video images thanks to the MxAnalytics function.

The hemispherical chamber Mobotix Q24M-Sec, that can capture an entire room without blind spots, now you have even more to offer with the new integrated MxAnalytics video analysis tool. MxAnalytics is an effective tool for process optimization or marketing purposes and can be used in small retail stores, as well as in public buildings such as museums or airports in order to receive important information.

Heat map: track and evaluate movements

Which store shelves are attracting the most customers?? Which products at the exhibition stand attract the most attention from consumers? Which waiting areas in the departure lounge are preferred on Mondays between the 8 AM and 12 PM? MxAnalytics allows you to reliably capture and evaluate the movement of people or objects in the live image. The most frequented areas are highlighted in color on a heat map in a predefined area. Areas with the highest movement are shown in red, and those with little movement in blue.

Counting people and objects

Using counting lines to count people and objects and generate observational data is a valuable tool.. How many people pass through a specific entrance in an hour or in a day? And in what direction are they going??

MxAnalytics also stands out when it comes to ease of use thanks to quick and easy-to-use configuration when creating reports., For example.
Another point to highlight: video motion analysis results can be saved as daily reports, weekly or monthly on a table and export them through different interfaces. Either through web interface, email or as an MxControlCenter message, reports are automatically collected in the camera and can be easily accessed or sent at any time. this can be done fully automatically and individually for any number of recipients.

blank

Cost reduction

In addition to the counting function, the analysis of statistical behavioural data makes an essential contribution to process optimisation, further reducing costs.

Mobotix Q24M cameras differ from most traditional video systems thanks to their decentralized system architecture. Each camera includes a high-speed computer with long-term memory. It is no longer necessary to use a computer or server to record or analyze image material. Video analysis is done decentralized in-camera, no network load. This reduces total costs and maintains high system performance. MxAnalytics is available for free with the latest firmware version 4.1.4.11 and can be easily integrated into all older Q24M-Sec models via a software update.

The new version (2.5.2) Free MxControlCenter video management software also supports MxAnalytics. This allows the evaluation of the results of different cameras in a more convenient way. The update allows you to configure MxAnalytics on a Q24M camera and the subsequent analysis of the created and stored data.

Mobotix continues to develop MxAnalytics for the processing of image data inside the camera for the Q24 initially. Mobotix's rugged camera is maintenance-intensive and can be discreetly integrated into any environment thanks to its sleek design and compact size. The next step will be integration into other Mobotix camera models.
