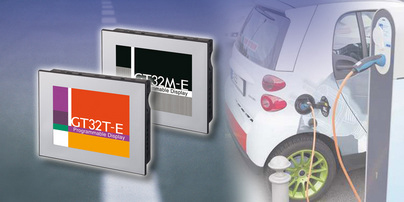

Panasonic's new GT32-E touch screen for outdoor applications

The provider of solutions for control processes and integrated systems, as well as for any application in switching and transmission, Panasonic Electric Works, has added a new operator with a touch screen to its product catalog, el gt32-by.

With the new GT32-E touch screen, Panasonic Electric Works Sets a new standard for operating display applications in extreme temperature conditions. The screen has a 5.7 TFT display″, con 4096 colors, QVGA resolution and can be used outdoors, withstanding temperatures from -20°C to +60°C. The luminosity is 700 cd/m² and the readability of the screens is guaranteed, even in direct sunlight. Since the design of projects with the GT32-E is very flexible, It is very suitable for integration into automation products, especially for automatic washing systems, as well as at charging stations for electric vehicles.

A USB port allows the user to download programs to the screen. Audio files can be recorded to an SD memory card, in a simple and economical way; You can even make backup copies of PLC programs, from GT o del firmware. The size is very compact and the power consumption is below 8W, so it hardly dissipates heat, facilitating assembly in small spaces.

The projects for the new GT32-E models, same as for the rest of the GT screens, are created with GTWIN software. This friendly software provides a wide variety of predefined objects that help generate intuitive screens. The software's graphical environment is available in several languages: español, English, German, etc.

Product Features:

• Display TFT de 5,7″, 4096 colors, QVGA resolution
• Room temperature: from -20°C to +60°C
• Numeric keypads that allow preset values ​​to be entered directly.
• New library of 3D elements to provide a more realistic operation (SYMKEYS library)
• Recipe and graphics manager
• Real time clock
• 16 available languages
• Password protection
• Maintenance-free LED feedback
• IP67 protection
• RS232C/RS422/RS485 ports
• Installation depth of only 39mm, one of the narrowest in the industry
• Can be connected to all FP series PLCs
• Drivers available for Mitsubishi, Omron, Allen-Bradley, Siemens, Modbus (RTU Mode)
