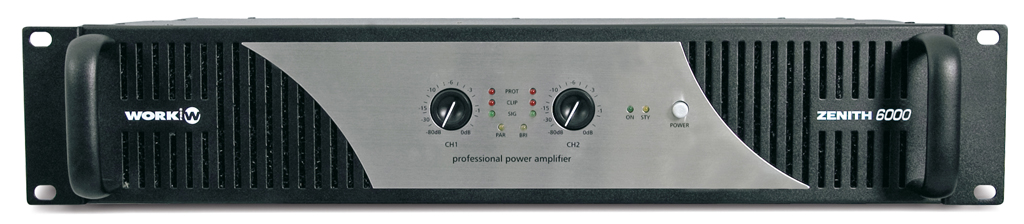

New Work Zenith power stage 6000

Equipson, company dedicated to the audio and professional lighting sector, The Zenith has been launched on the market 6000 from the Work brand, a switching power supply stage that offers a high degree of signal integration and high levels of output power in a range of lightweight amplifiers.

Equipson has added a new model to the Zenith series of Work stages, that offers more power, with ranges that reach up to 6000W bridged @4 Ohm. The construction of electronics, in which all the details have been taken care of, makes that with its reduced weight (only 14,6 Kg), of Zenith 6000 is especially suitable for Touring applications.

La gran relación coste/W de toda la serie Zenith también es una característica en este modelo que, besides, incorporates microcontroller stabilized switching power supply, allowing to supply a continuous power of up to 8 kW; Power supply design with high ripple current capacitors, that improves low frequency performance with more performance and reliability; electronic circuit manufactured with SMD technology components, improving build reliability and much more reliable automatic testing; operating mode selector: Stereo, Bridge and Parallel; input sensitivity selector: 26 dB/32 dB; optimal performance at 2Ω load levels; and protection against short circuits at the output, over-temperature, DC and very high frequency signal, even at continuous regime.

Zenith technical data 6000
– Power 8 stereo Ω: 1200 W x 2.
– Power 4 stereo Ω: 2000 W x 2.
– Power 2 stereo Ω: 3000 W x 2.
– Power 8 Oh bridge: 4100 W.
– Power 4 Oh bridge: 6200 W.
– Power 8 Ω parallelo (mono): 1200 W.
– Frequency response: 20 Hz – 20 kHz.
– THD+N: 0,01%.
– Factor damping: 200.
– dynamic range: 80 dB.
– S/N Ratio: 100 dB.
– Output circuitry : 10 unbalanced kΩ. 20 kΩ balanced,
– Feeding: AC 220 V, 50 Hz.
– Dimensions (An x Al x Pr): 483 x 88 x 505 mm.
– Weight: 14,3 Kg.
