Visiotech provides the new wireless solutions for IP video surveillance ENH500 and WL-330N3G

The wholesale distribution company specialized in CCTV systems and video surveillance cameras, Visiotech, has added to its catalog the new wireless solutions for IP cameras and video recorders ENH500 and WL-330N3G.

Visiotech, wholesale company specialized in video surveillance products, has launched the ENH500 wireless link from EnGenius, an outdoor device for long distance links compatible with the standard 802.11 a/n that allows transmission speeds of up to 300 Mbps. The ENH500 is the ideal solution for wirelessly connecting IP cameras and recorders, since it allows you to work both in the band of 5.4 GHz as in 5.8GHz, avoiding the usual band of 2.4 GHz very saturated by interference. Its integrated dual antenna 13 dB, MIMO technology (2 transmitters/2 receivers) and its maximum transmission power of 27dBm (configurable) allow you to link cameras several kilometers away (The maximum distance depends on the specific environment). The antenna of 13 dB of gain has a radiation pattern of 60º in Azimuth (plano horizontal) and 15º in elevation (plano vertical).

With an IP65 protection rating and operating temperature range of -20 at 70ºC it can work outdoors in the most inhospitable conditions. The ENH500 can operate in both access point and client mode, so with a single type of device you can design the complete wireless network and, in complete safety thanks to the different mechanisms available: WEP encryption, WAP, WAP2, 802.1x authentication, Hidden SSID and list of supported MAC addresses. Supports working mode “point to point” y “point to multipoint”.

Configuration via web interface, the two Ethernet connectors included, the PoE injector and the LEDs with which it is equipped to indicate the signal level received, They make it a really easy and quick piece of equipment to deploy in the field..

Portable Wi-Fi Connectivity

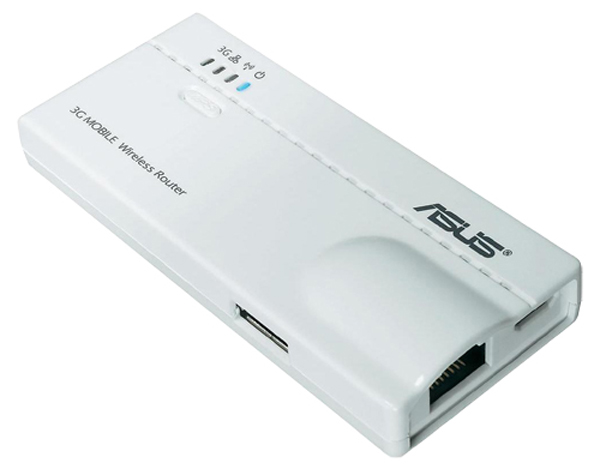

Visiotech has also presented the Asus WL-330N3G 3G portable Wi-Fi router. With a very small size, allows you to provide Wi-Fi connectivity to any IP device, ya sea un DVR, NVR, an IP camera or similar. Its six available operating modes make it one of the most versatile devices on the market.: Router, access point, repeater, Adapador Wi-Fi, Hotspot or 3G connection sharing. Of these six ways, two stand out especially for video surveillance applications:

• Wi-Fi adapter mode provides Wi-Fi connectivity (802.11 b/g/n) in 2.4 GHz to any IP device through its Ethernet interface in an incredibly simple way. This way it is no longer mandatory to wire a camera or DVR/NVR to access the device if there is already a Wi-Fi network available. Providing maximum speeds 150 Mbps.
• The 3G connection sharing mode makes it possible to access a camera/recorder using a 3G USB adapter to the WL-330N3G without having to have a landline available..

Supports WEP encryption, WPA-PSK y WPA2-PSK. It can be powered both from a USB device and from the conventional electrical network thanks to the included adapter.
