Pelco multiplies the opportunities of analog cameras

Pelco, Schneider Electric company specialized in the design, development and manufacturing of video security systems, has expanded its analogue camera portfolio with the new C20 range of box cameras, the new BU series of bullet cameras and the new FD family of compact domes.

Schneider Electric has presented the update of the offer of its security cameras Pelco by Schneider Electric. Thus, Users can now choose from a complete selection of fixed mini-domes and bullet cameras with infrared options, as well as a new series of high-resolution box cameras with day/night features and extended dynamic range, so they are indicated to protect a wide range of spaces, both interior and exterior..

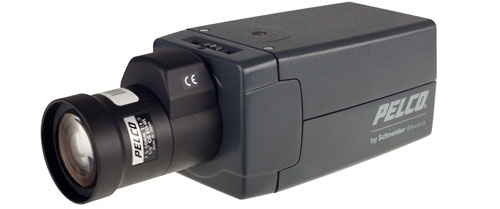

The C10 series has been replaced by the new C20, updating its box camera offering. But the C20 series represents much more than just an upgrade. Con 650 TV lines, the new series offers analog cameras with higher resolution, more equipped and affordable. These new cameras offer high resolution with color models, day/night, and day/night with WDR all of them with features typically found in more expensive video security systems.

The series includes the C20-CH model, a color digital camera designed to offer superior image quality in a wide range of conditions as it allows software switching to black and white mode in low light conditions. Includes automatic white balance for difficult lighting situations, Digital sound reduction minimizes ambient noise level and provides clear image quality, plus backlight compensation that adjusts the image to prevent objects from being dark in backlight.

For your part, The C20-DN is a day/night digital camera with a mechanical infrared filter that activates black and white or color modes as ambient light conditions change.. So, outstanding performance is obtained in all types of lighting, while in the case of the C20-DW model it is a day/night camera with WDR technology, providing an extended dynamic range of 120 dB and produces high-quality images in all types of lighting situations, even those with strong backlighting or glare..

New BU series of bullet cameras

The BU series of bullet cameras are defined by offering the highest analog resolution available in IR capabilities and being built for quick installation., easy and get years of reliable performance. As main characteristics of this range we can highlight: infrared lighting (lux candle), anti-vandal (impact resistant according to IK10 standard) and built with video analysis that includes private areas and motion detection (on models BU5 and BU6). Within the range, The BU4 series is a high-resolution digital camera capable of delivering clear images in non-light applications with infrared supplemental illumination with a range of 15 metros.

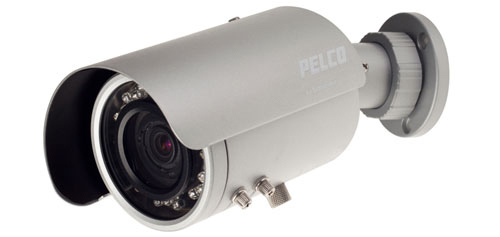

For your part, The BU5 model is a very high definition digital camera (650 TV lines) capable of delivering high quality images, even at night in unlit areas thanks to supplementary infrared illumination with a range of 25 metros. This is a model indicated for outdoor surveillance, offering a minimum of a 0,1 lux illumination in color mode and using day/night technology for high performance in low light conditions.

In parallel, the BU6 series of very high resolution cameras (650 TV lines) are capable of providing high-quality images even at night with zero illumination with the supplementary illumination infrared range of 40 metros. It has WDR technology (extended dynamic range), which allows it to have high performance in extreme backlight conditions and, in case of low light, This new camera uses digital slow shutter technology to produce 0,03 lux sensitivity and has digital zoom.

Backlight compensation adjusts the image to prevent glare, while white balance and noise reduction technologies work to maximize image quality and minimize noise levels for any outdoor application, being ideal for applications in difficult environments.

Compact mini-dome

The new FD are compact dome cameras that incorporate multiple features and high analog resolution performance. Choose models with infrared illumination to capture clear images in low-light or no-light conditions. Available in wall or ceiling version, These cameras are ideal for protecting a wide range of indoor areas as well as outdoor environments.

The FD1 series has two camera options and different lens options for a variety of indoor applications. Con 540 TV lines with a fixed or varifocal lens, with day/night and color option, This model also has additional infrared lighting on certain models.

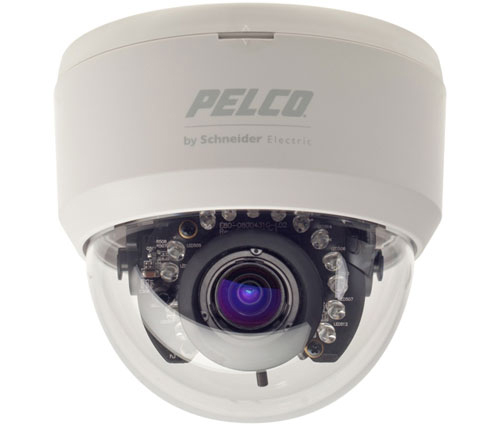

The FD2 is a fixed indoor minidome camera whose attractive dimensions, combined with its numerous features, Ideal for most interior applications. Among its benefits, There are also four camera options and a lens positioning system capable of offering a wide variety of routes and tilt angles.

The offer is completed with the FD5 series, offering three camera options and different lens options, plus a vandal-proof design, designed to resist impacts according to the IK10 standard and ensure its operation in a temperature range between -30 degrees and 50 degrees.
