Ecler DAM514: digital audio mixer for audiovisual installations

The Ecler DAM514 digital audio mixer is ideal for corporate AV applications, commercial and educational.

DAM514 is a signature digital audio mixer Ecler which incorporates five inputs and four outputs, DSP processing, RS-232 connectivity and four remote control ports (0-10 VDC). Its four outputs can be configured as mono or stereo zones (in pairs). Regarding the tickets, three of them are stereo Line type and the fourth and fifth are MIC/Line, configurable in independent mono mode or as another additional stereo pair.

This Ecler digital audio mixer is ideal for corporate AV installations, commercial and educational environments; conferences and integration in implementations with a global control system. It is also designed to be incorporated into applications for background music and announcements., with message priority and source selection and volume adjustment by zone.

Its DSP processing system allows independent level control for each input and output with independent input mixer for each output zone. Incorporates three-band equalization control (Bass-MID-Treble) independent for each input,Crossover type filter available on each output, graphic equalizer 10 Independent bands for each output and independent and adjustable high-pass filter for each MIC/Line input.

Also includes a front panel password locking system, with three levels of protection.

DAM514 Features

• Three stereo line inputs plus two balanced MIC/Line inputs.
• Four balanced audio outputs, with Euroblock connectors. Each output can work individually or linked with another output in stereo zone mode..
• DSP 24 bits/48kHz.
• Panel LCD frontal de 2×20 characters.
• Four front panel navigation keys + encoder digital.
• One backlit control key for each input and output.
• Four remote control ports, compatible with WPm series panels and programmable.
• Pager port for sending voice messages in real time, using an MPAGE4 message console.
• Mute port for silencing one or more zones using an external contact closure.

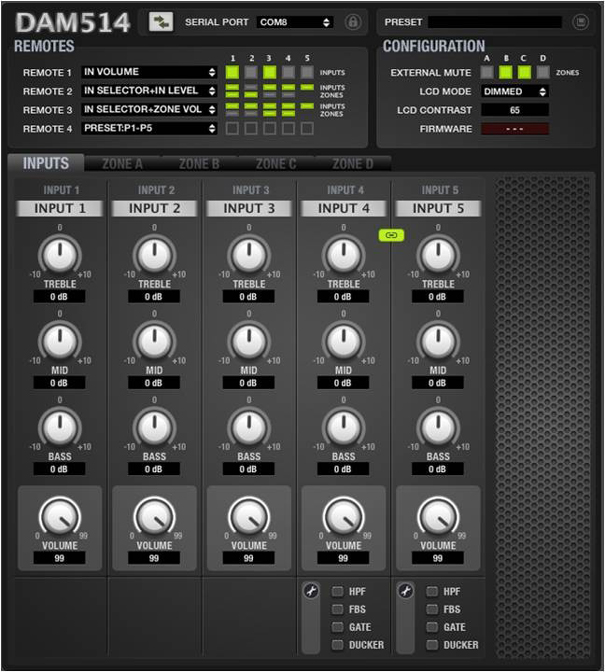

• RS-232 interface compatible with free EclerCOMM software and CA-NET external control protocol
