Vitelsa installs AV systems for emergency centers 112 from Seville and Jaén

The headquarters of Jaén and Seville, as well as that of Western Andalusia, have modernized the emergency services operations centers 112. Vitelsa has been in charge of the design, supply and installation of audiovisual systems, and has also been in charge of carrying out the structured audio and video cabling, and has given training courses to optimize the use of the implemented solutions.

The Junta de Andalucía has made a strong investment to renew and modernize the different headquarters of the Service 112 with the aim of improving the management and resolution of emergencies and the security of citizens in the autonomous community. Within the framework of this project, the new provincial headquarters of Jaén and Seville have been built in recent years., and the regional of Western Andalusia.

Vitelsa has been responsible for the design, supply and installation of audiovisual systems implemented in the provincial headquarters of the Service 112 from Jaén and Seville, as well as the regional headquarters of Western Andalusia, located in the same building as the provincial headquarters of Seville. All planning actions are coordinated from these facilities., attention, management and resolution of emergency situations that occur in its areas of influence.

The new buildings are equipped with the latest advances in information and communication technologies applied to prevention work., analysis and management of major emergencies.

The innovative architecture of audiovisual systems proposed by Vitelsa for the project incorporates professional equipment 24×7 of the latest generation and high image quality that allows total interconnection of operations, facilitating treatment, transmission, distribution and presentation of the information managed by the center on any screen and device.

Videowall: core of the centers

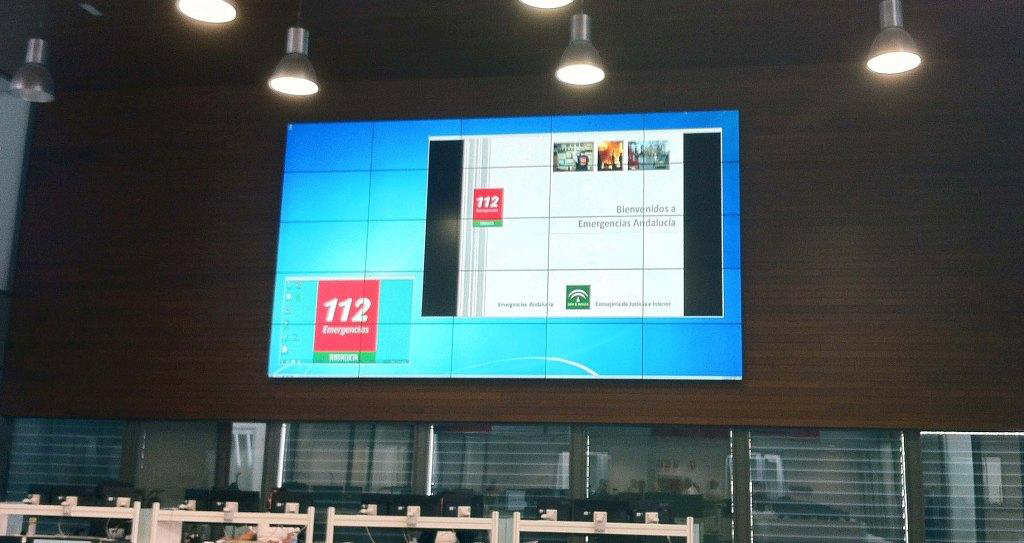

The activity of these emergency centers takes place around the operating room, where information is continuously received from multiple sources (Traffic, police, health…) in relation to possible emergency situations. To facilitate your tracking, The operations room located in the regional headquarters of Western Andalusia has been equipped with a large video wall 5×5 of more than 20 square meters, composed of Full HD LED monitors with ultra-thin frames that provide high resolution to the set.

The video wall is also equipped with redundancy in the processing systems for its 24-hour operation.×7 and is capable of capturing information from multiple systems and HD sources (TDT, Sat TV, mobile units, etc.), composing it on their screens for better monitoring by operators.

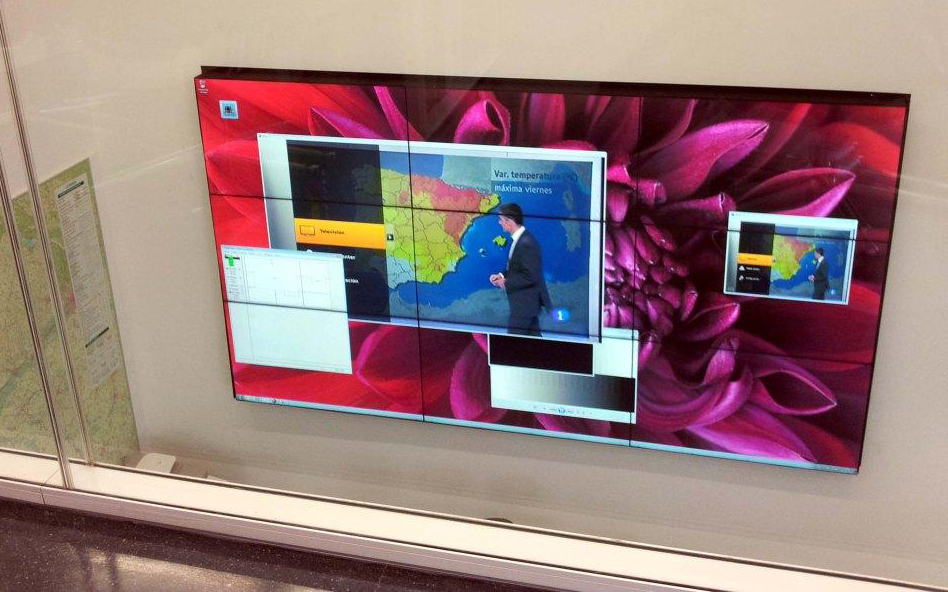

The operating rooms of the provincial centers also have this type of display systems, but on a smaller scale. A video wall 3 has been implemented in the provincial center of Seville×3 con monitores LED Full HD, also with redundancy in the processing systems and capacity for simultaneous presentation of sources.

For your part, The provincial center of Jaén has two video walls 3×3 with Full HD LED monitors and redundant processing. Additionally, An auxiliary operating room equipped with a video wall 2 has been installed in this center.×2 with similar characteristics.

The crisis rooms of the three centers have direct vision over the video walls of the operating rooms, facilitating the monitoring of operators' activity.

Sistemas AV

The rooms incorporate additional devices for greater information capacity and better coordination of operations, as cutting-edge Full HD laser projectors, interactive whiteboards and overhead digitizers that allow large-format images and documents to be presented on the different screens (maps, building plans…). The rooms also have robotic Full HD cameras and a microphone system for monitoring and recording the coordination activities carried out in the room., integrated with a Full HD videoconferencing system that connects the room with the outside.

The three headquarters have training rooms for internal use, that have large format HD interactive whiteboards, Integrated audio and specialized training software. For the recording and dissemination of the sessions held in the rooms, robotic Full HD cameras have been installed on the ceilings., as well as wireless microphone systems.

The venues also have function rooms for holding conferences and seminars., equipped with high-brightness Full HD projectors, in addition to large format electric screens. The rooms also implement robotic Full HD cameras for recording the sessions., as well as high-quality microphone and sound systems.

To facilitate media monitoring of emergency situations, press rooms equipped with large format Full HD televisions capable of playing multimedia content have been created in each center., as well as systems for signal distribution to media. Finally, Several meeting rooms at the venues have been equipped with HD projectors and motorized screens.

The electronics that manage the distribution and recording of the multiple digital audio-video signals that circulate through the system are concentrated in the audiovisual CPDs of each headquarters..

These CPDs have 24 HD video matrices×7 for interconnection between rooms and venues, plus 24 audio processors×7 capable of managing high volumes of communications. To facilitate the use of the solution devices, they have been integrated into a control system from where, via wireless touch panels and web browser, You can control the operation of the systems both from the rooms and from outside.

Finally, Vitelsa has designed and manufactured all the structured audio and video cabling for the headquarters, using specific cable and connection for digital HD video. Specialized training courses have also been offered for operators, in order to reduce their learning curve and optimize the use of systems
