UDE Micro-400: audio solution for medium power installations

The UDE Audio Micro-400 system is composed of the MXA-400 self-amplified four-channel matrix and the PZ-400 control desk..

OUT Audio has incorporated the Micro-400 self-powered matrix system into its audio catalog, a solution that integrates the MXA-400 matrix and the PZ-400 control desk. Each input has individual tone and volume control. Besides, Zones can be managed locally from the matrix and the desk.

It is a solution designed for medium power installations that offers an internal 120W amplifier for each output and the possibility of connecting another amplifier for higher powers.. It also has an internal MP3 player via USB and SD support, radio and telephone input.

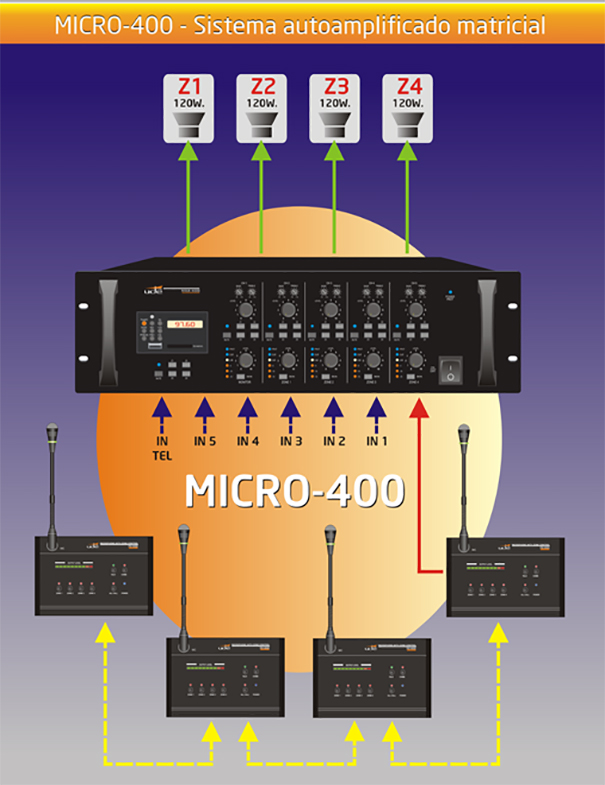

The matrix of 4 self-amplified channels MXA-400 is a device that allows the management and amplification of up to 5 audio inputs and their switching to 4 amplified and independent outputs 4 ohms / L70V and L100V with 120W rms each.

In the MXA-400 system two channels contain a configurable high priority, allowing added versatility in case of priority messages such as emergency messages. The Tel input channel allows the connection of a telephone interface (IT-15), with direct connection from telephone exchange.

The matrix allows the direction of any input with any output, providing flexibility, using the switches located on the front of the equipment. All inputs allow volume management and are equipped with a bass and treble filter.

The multimedia module integrated inside the device plays music in MP3 format from a USB memory or SD memory card, in addition to tuning FM radio through digital control.

For your part, The PZ-400 desk only works in combination with the MXA-400 self-powered matrix and allows the sending of messages addressed to 4 public address areas or make a general announcement directly, with configurable chime 2 o 4 Integrated tones and volume settings.

The visual indications of use allow the user to know at any time what configuration the desk has.: carillón activo, zonas seleccionadas, microphone pickup volume and whether the microphone is in use or not.

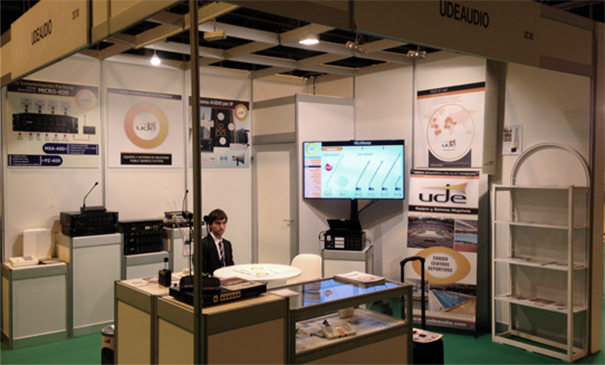

The Micro-400 system is one of the novelties that UDE Audio showed at the Madrid Fair, at the International Exhibition of Solutions for the Electrical and Electronic Industry (Matelec 2014), which closed its doors last Friday 31 de octube.
