Quaytech MPC2+: Designed for digital signage and industrial applications

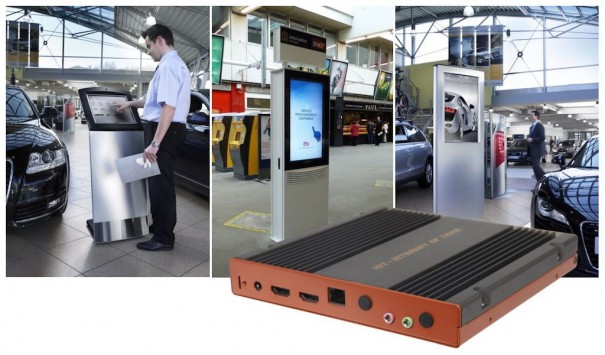

The compact MPC2+ from Quaytech, marketed in Spain by Macroservice, integrates SoC technology (system on chip) for easy installation in industrial applications and digital signage that require continuous use 24×7, outdoor information points, ticket vending machines, ATMs and home automation.

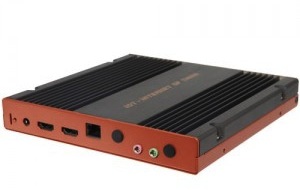

Available in the Spanish market through Macroservice, the MPC2+ model Quaytech includes Intel Celeron N2840 dual core processor up to 2,58 GHz and various I/O ports in an aluminum chassis finished in black and orange, with a robust and compact design (of only 25 mm. tall).

This mini PC with a processor-less design integrates SoC technology (system on chip) for easy installation in multiple industrial applications and digital signage with continuous use (24/7), with dual-channel Intel Bay Trail-M chipset and HD Graphics to provide high performance with low power consumption.

The system has full connectivity; Its front panel has an SD card slot, of USB 2.0, eSata interface and RS232 serial port, while the back has two HDMI outputs, one GbE LAN input (10/100/1000 Mbps), a microphone input, an audio output and a Kensington security anchor.

Quaytech MPC2+ also incorporates memory 2 Gb (ampliable a 8 GB A Través De Dos Slots DDR III L1600 MHz So-DIMM), storage via mSata solid state SSD hard drive and 64 Gb, optional WiFi or WiFi/Bluetooth card slot with two holes for external antenna on the back of the device, internal slot for 3G SIM module / 4G and external power supply 12/19 V y 40 W.

Robust design offers resistance to vibration (2 Gms) and the impacts (20 G) and has lateral brackets as an anchoring system to simplify its integration. This mini PC is compatible with most operating systems on the market (Windows 7 y 8.1; Linux Ubuntu 14.04 y Android) and has CE certificates, UL, CB, FCC, ErP, RCM, BSMI and CCC.
