Atlona focuses its presence on ISE 2016 in 4K switching for AV environments

Two five- and six-port switches for audiovisual environments, such as classrooms and meeting rooms, an HDBaseT-based collaboration system and the company's first range of 4K/UHD amplifiers with HDBaseT output, HDCP 2.2 and power over Ethernet, These are the main novelties with which Atlona has attended the fair that is being held in Amsterdam RAI.

The assistance of Atlona a WHEREAS 2016 is marked by its commitment to 4K technology which is represented by the switches for the commercial sector AT-UHD-SW-5000ED and AT-UHD-CLSO-612ED. In addition, and su stand (5-U100) An integrated 4K collaboration system can also be seen, based on HDBaseT, for use in combination with cloud-based conferencing services; and three 4K/UHD distribution amplifiers with advanced display control and a range of 100 metros.

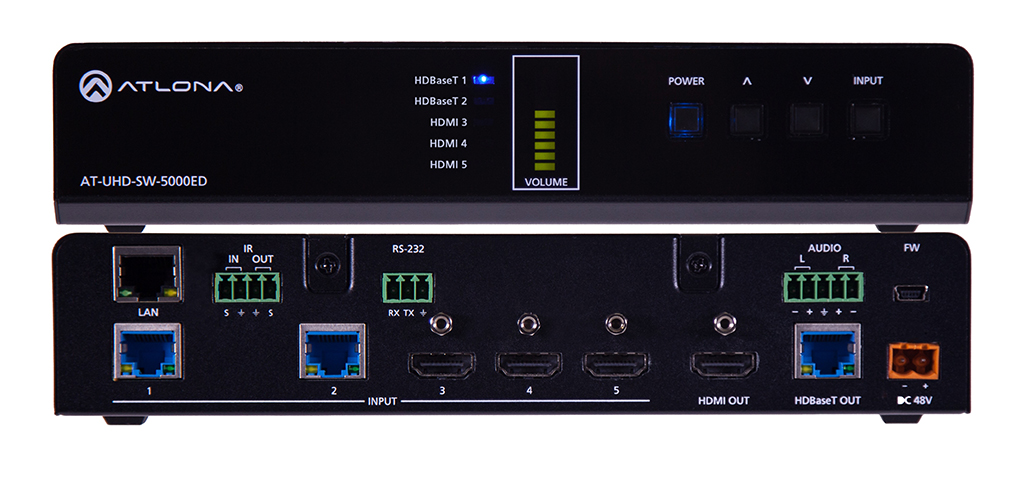

The AT-UHD-SW-5000ED switch, member of the SW-5 Series, is a device with five input ports that supports 4K/UHD video formats at 60 Hz. With sampling structure 4:2:0 (10,2 Gbps), transmits audiovisual signals as well as Ethernet, Power over PoE and control, through a single cable, to screens located up to 100 metros.

Control options included in the AT-UHD-SW-5000ED include automatic switching, front panel buttons and compatibility with IR control systems, RS-232 o TCP/IP. The switch also features three HDMI inputs and separation of digital sound from HDMI to two-channel balanced analog sound..

The SW-5000ED allows Atlona's two HDVS transmitters to be combined into a single system.. It is ideal for presentations made from two or three different places in a room, for example from a lectern, a conference table or any other place in the classroom, the main hall or the conference room.

It is also compatible with the Atlona Management System (AMS), a network software platform that integrates configuration, product management and updating, and allows monitoring and carrying out maintenance operations remotely.

Displays connected to the SW-5000ED can be turned on and off automatically using an IP control system, RS-232 o CEC.

Additional benefits include the online user interface for easy configuration and management of the display control system., EDID (long display identification data) y HDCP (high bandwidth digital content protection).

The SW-5000ED comes in a compact 1U case that is easily installed thanks to the rack mounts of 19 inches allowing two units to be mounted together.

Multi-format 4K/UHD switch for dual displays

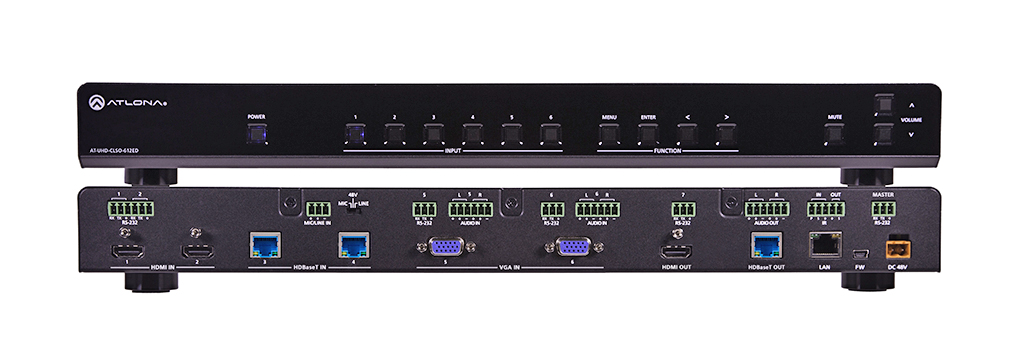

The CLSO-612ED provides a simple, cost-effective system integration solution for classrooms and small offices., eliminating the need to use multiple products for scaling, converting and streaming audiovisual content from any source to any screen, 4K/UHD monitor and projector included.

It is a switch that includes six input ports and has 4K upscaling capability, doubled HDMI and HDBaseT outputs, along with an audiovisual signal range of 100 metros.

The UHD-CLSO-612ED is equipped with two HDBaseT inputs, two HDMI, two multifunction analogue and one audio input with a view to satisfying the audiovisual needs of integrators with a single integrated component.

Your automatic input selection and display control system, allow the switcher to act as a central component of a fully automated audiovisual system for meeting rooms or training classrooms.

The AT-UHD-CLSO-612ED employs Power over Ethernet technology (PoE) to power compatible HDVS series switches connected to their input ports, as well as the HDBaseT receiver connected to its output port, eliminating the need for an AC wall outlet to plug in remote devices and simplifying display installation.

The switcher features an automatic display control system that eliminates the need for expensive and complex control systems for small audio-visual systems.. It is also compatible with the Atlona Management System (AMS).

The CLSO-612ED features professional sound features such as a phantom-powered microphone input 48 volts and advanced audio signal attenuator (ducking). This allows it to cover a wide range of audio signal processing and control needs., common in training classrooms, conference rooms, meeting rooms and other presentation environments.

Other features of the switch include the ability to scale to and from 4K for any combination of sources and displays., a multilingual control panel with menus in English, español, French or German and the ability to route RS-232 and IR control signals to other components connected to the system.

4K collaboration

For the collaboration environment, Atlona is showing at ISE 2016 an HDBaseT-based system with 4K audiovisual switching capability, USB and HDMI expansion and system control for conferences between computers through cloud services such as Skype, WebEx y GoToMeeting.

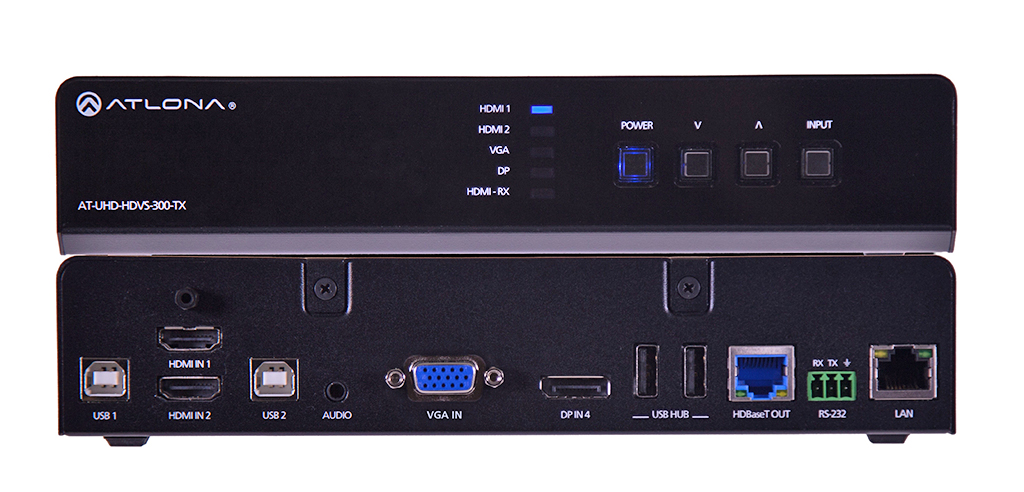

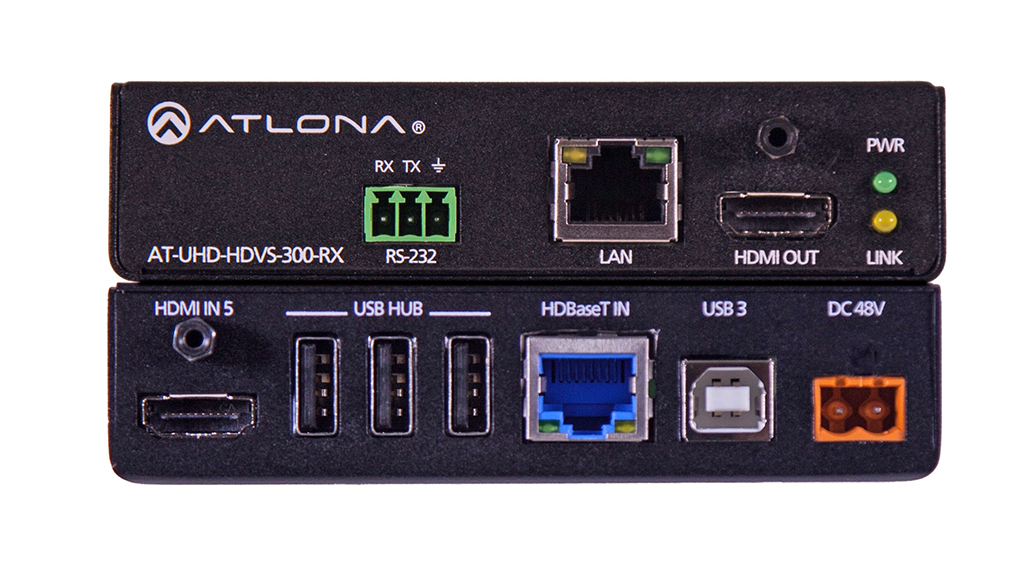

The HDVS-300-KIT consists of AT-UHD-HDVS-300-TX, which acts as a central conference station, HDBaseT video switcher and transmitter, y del AT-UHD-HDVS-300-RX, which decodes the HDBaseT signal and transmits an HDMI signal to the display. The latter supports audiovisual signals, Ethernet and control, in addition to having USB and HDMI inputs to return the video signal to the central station.

The AT-UHD-HDVS-300-KIT supports ultra high definition sources (UHD) and 4K/UHD displays at 60 Hz with color subsampling structure 4:2:0. Automatic input selection allows you to switch speakers without any manual operation and simplified display control with CEC allows you to control automatic screen on/off and adjust volume from the HDVS-300-TX.

The kit supports control via TCP/IP and RS-232, which increases its capacity to operate with advanced systems, and is compatible with the Atlona Management System (AMS) for remote management that covers configuration, maintenance and updating of systems.

4K/UHD Distribution Amplifiers

Atlona's new line of 4K/UHD amplifiers with HDBaseT output, HDCP 2.2 and power over Ethernet, includes three models with HDMI to HDBaseT distribution of 4K/UHD format video signal at 60 Hz and sampling structure 4:2:0, HDCP compatibility 2.2, power over ethernet (PoE), EDID management (long display identification data) and advanced display control functions such as CEC (consumer electronics control).

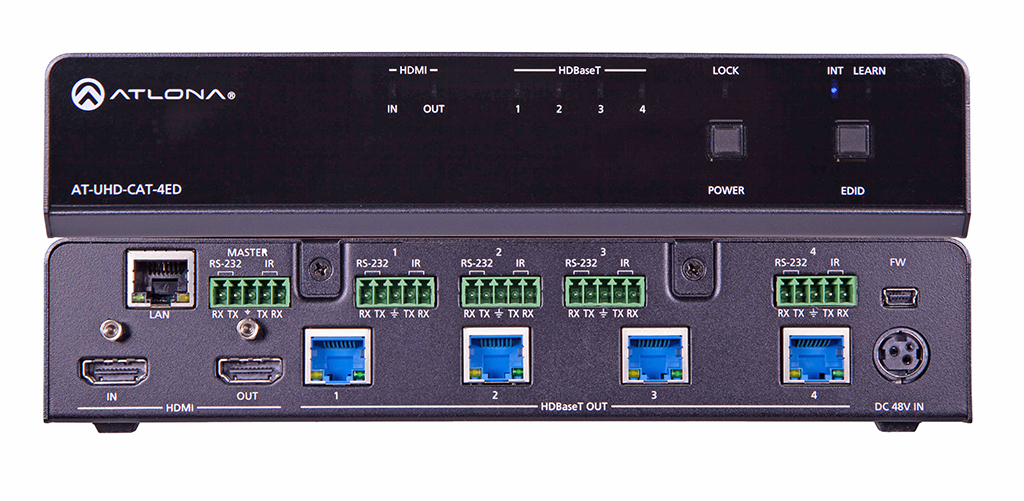

This range, designed for the integrator, consists of the model AT-UHD-CAT-8, eight output ports, and the AT-UHD-CAT-4 and AT-UHD-CAT-4ED models, of 4, the latter having increased distance outputs for use up to a distance of 100 meters and Ethernet-enabled HDBaseT transmission. The other models operate at a distance of up to 70 metros.

In addition to HDBaseT outputs, The new amplifiers have an HDMI output for signal propagation and daisy chain connection.

All are equipped with an IR and RS-232 connection for the amplifier and another for each output channel. Besides, The UHD-CAT-4ED includes an Ethernet input port for use with IP controllable systems.
