iBase SW-101-N: IP68 digital signage player for outdoor applications

This robust fanless digital signage player offers high compatibility with various HDMI displays to attract, inform and engage the audience.

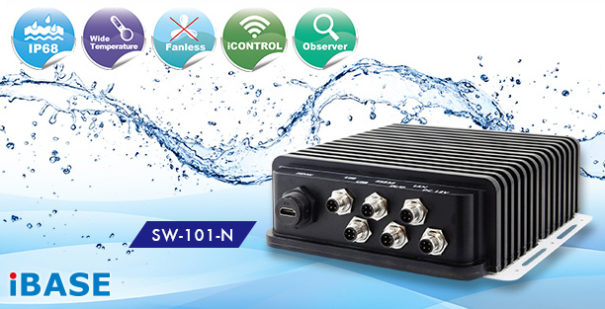

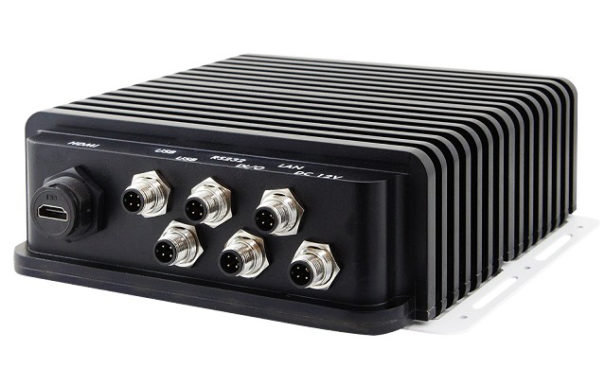

iBase SW-101-N

The SW-101-N is the latest digital signage player developed by IBase Technology for outdoor applications. This rugged fanless PC is built with an Intel Atom E3845 quad-core processor at 1,91 GHz and Intel HD graphics (Gen 7-LP) 4EU.

This equipment is designed to withstand dust, water and extreme temperatures, ensuring stable and reliable operation in harsh industrial environments.

Meets IP68 standards, which allows it to function even if submerged in water for up to 30 minutes at a depth of 1,5 metros. Black waterproof housing uses a C3 HDMI connector and M12 I/O interface connectors for two USBs 2.0, as well as Gigabit LAN inputs, RS232, one DC power and one digital I/O. Two N-type antenna connectors also have a waterproof design. In addition to not having fans, The unit offers a wide operating temperature range between -40 °C y 75 °C.

The SW-101-N supports IBase's iControl and Observer technologies for intelligent control and remote monitoring functions that feature automatic on/off scheduling, power resumption, Remote system temperature/voltage monitoring and low temperature start protection.

The standard model is sold with 4 GB of DDR3L-1333 memory, 64GB mSATA storage and 12V DC-in support. Additional features include a watchdog timer, Wall mounting and Mini PCIe expansion for optional wireless modules.

“IBase has developed the SW-101-N specifically for extreme outdoor conditions by using IP68 standards to seal the system from water., the dust, adverse air and weather conditions. A digital signage player designed for outdoor applications that offers high compatibility with multiple HDMI displays to attract, inform and engage the audience signage”, comment Archer Dog, director of solution product planning at IBase.

Features:

iBase SW-101-N

  • iControl smart remote control and remote monitoring technologies.
  • Procesador Intel Atom E3845 Quad Core.
  • DDR3L 1333 SO-DIMM sin ETC, max. 8 GB.
  • Integrated graphics device with Intel processor, compatible with an HDMI port (conector C3).
  • From USB 2.0, 1 RS232, 1 E/S digital (conector M12), 1 Mini PCI-E to 3G/LTE WiFi Module, 1 mSATA for storage.
  • Wide operating temperature range between -40 °C ~ 75 °C.
  • Waterproof fanless design with IP68 rating.
By, 26 Mar, 2019, Section: Digital signage, Signal distribution
