iBase SE-103-N: digital signage player for extreme temperatures

Designed without a fan and with Intel Atom X Series/Celeron processors, this compact player base from can operate reliably in adverse conditions with temperatures between -20 °C y 70 °C.

The model SE-103-N is the latest digital signage player that has been developed iBase Technology for use outdoors. Designed without a fan, It is designed for use with three HDMI displays and is sold with Intel Atom x6000/Celeron processors (formerly Elkhart Lake).

Built for smart applications in the retail environment and drive-thru, not only provides an eye-catching retail experience, but it also helps increase traffic, leading to higher income.

Like the rest of iBase digital signage players, The SE-103-N has advanced features, including iSmart/iControl and Observer energy-saving technologies for remote monitoring, with on/off scheduling and energy recovery functions.

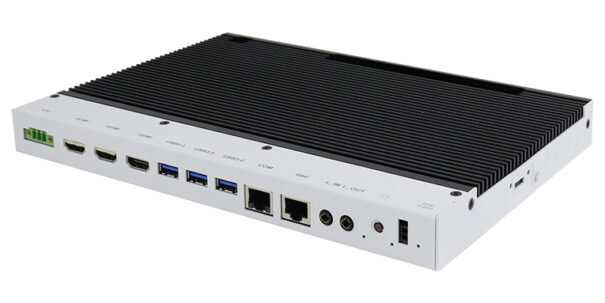

With dimensions of 260x181x25 mm, The compact SE-103-N features industrial-grade components and specifications, allowing it to operate reliably in adverse conditions with temperatures between -20 °C y 70 °C.

In addition to a TPM (2.0) integrated, supports EDID (extended screen id data) which avoids screen convergence problems, Display status monitoring and HDMI-CEC for display on/off control via HDMI ports.

Includes 2 DDR4-3200 slots with a maximum of 32 GB capacity, a LAN of 2,5 Carry, an M.2 E-Key for WiFi, Bluetooth modules or capture cards, an M.2 B-key (3052) for 5G/LTE module, a UIM/SIM card slot and 3 puertos USB.

The SE-103-N is currently available with a choice of four processors, including Intel Celeron N6210/J6413 and Atom x6425E/x6211E (wide-temp). All units run Windows operating systems 10 IoT Enterprise y Linux Ubuntu.

Features:

• iSmart intelligent energy saving and Observer remote monitoring technologies.
• Procesadores Intel Atom x6000/Pentium/Celeron.
• 3 HDMI 2.0b with HDMI-CEC display on/off control function.
• Hardware EDID emulation with S/W control function.
• 2 DDR4-3200 SO-DIMM, dual channel, Max. 32 GB.
• Intel LAN 2,5 Carry.
• M.2 B-Key (3052) for 5G options.
• M.2 E-Key (2230) for WiFi options, Bluetooth or capture card.
• TPM 2.0 and watchdog timer.
• Compact design, robust, industrial grade, and without fan.
• Wide range of operating temperatures, from -20°C to 70°C.
